Hob colour range
Stainless
steel – SS
Dimensions
Built-in hole size: 560×480 mm
555
600
45
22,5
22,5
3
510
475
17,5
17,5
Order code: HCL60CK
Brushed
Hob colour range
Stainless
steel – SS
Dimensions
Built-in hole size: 720×480 mm
710
750
45
20
20
3
510
475
17,5
17,5
Order code: HCL75SCK
Brushed

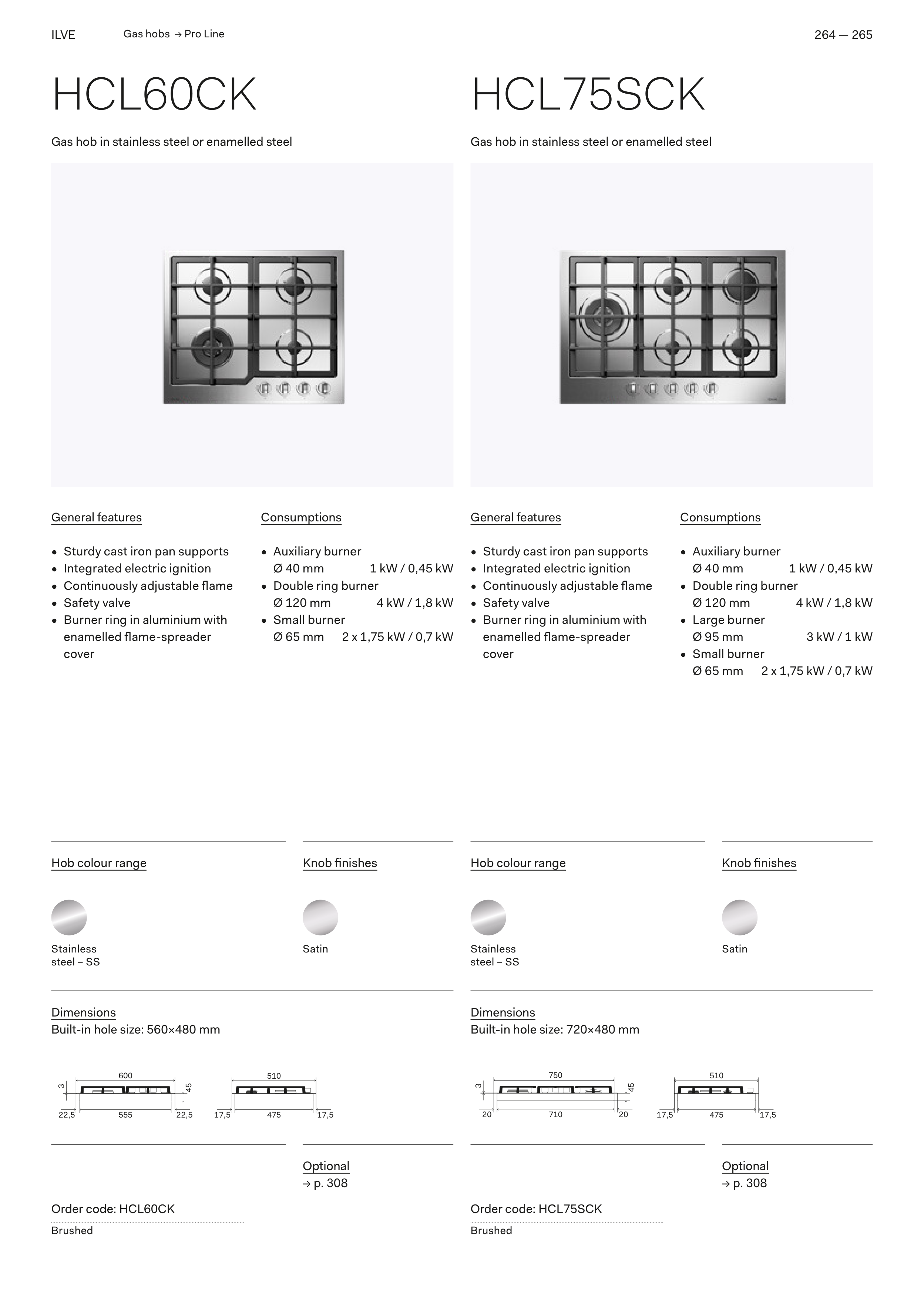

HCL60CK
Gas hob in stainless steel or enamelled steel
General features
• Sturdy cast iron pan supports
• Integrated electric ignition
• Continuously adjustable flame
• Safety valve
• Burner ring in aluminium with
enamelled flame-spreader
cover
Consumptions
• Auxiliary burner
Ø 40 mm
1 kW / 0,45 kW
• Double ring burner
Ø 120 mm
4 kW / 1,8 kW
• Small burner
Ø 65 mm
2 x 1,75 kW / 0,7 kW
Knob finishes
Satin
Optional
→ p. 308
HCL75SCK
Gas hob in stainless steel or enamelled steel
General features
• Sturdy cast iron pan supports
• Integrated electric ignition
• Continuously adjustable flame
• Safety valve
• Burner ring in aluminium with
enamelled flame-spreader
cover
Consumptions
• Auxiliary burner
Ø 40 mm
1 kW / 0,45 kW
• Double ring burner
Ø 120 mm
4 kW / 1,8 kW
• Large burner
Ø 95 mm
3 kW / 1 kW
• Small burner
Ø 65 mm
2 x 1,75 kW / 0,7 kW
Knob finishes
Satin
Optional
→ p. 308
ILVE
Gas hobs → Pro Line
264 — 265
