* replace the Fry Top with the KGRFT002 grids
(p. 316) for standard use of the two burners
Hob colour range
Stainless
steel – SS
Dimensions
Built-in hole size: 875×580 mm
85
870
900
600
15
15
16
16
568
Order code: XLP90F *
Brushed
* replace the Fry Top with the KGRFT002 grids
(p. 316) for standard use of the two burners
Hob colour range
Stainless
steel – SS
Dimensions
Built-in hole size: 875×580 mm
85
870
920
620
25
25
26
12
568
Order code: XLPT90FD
Brushed

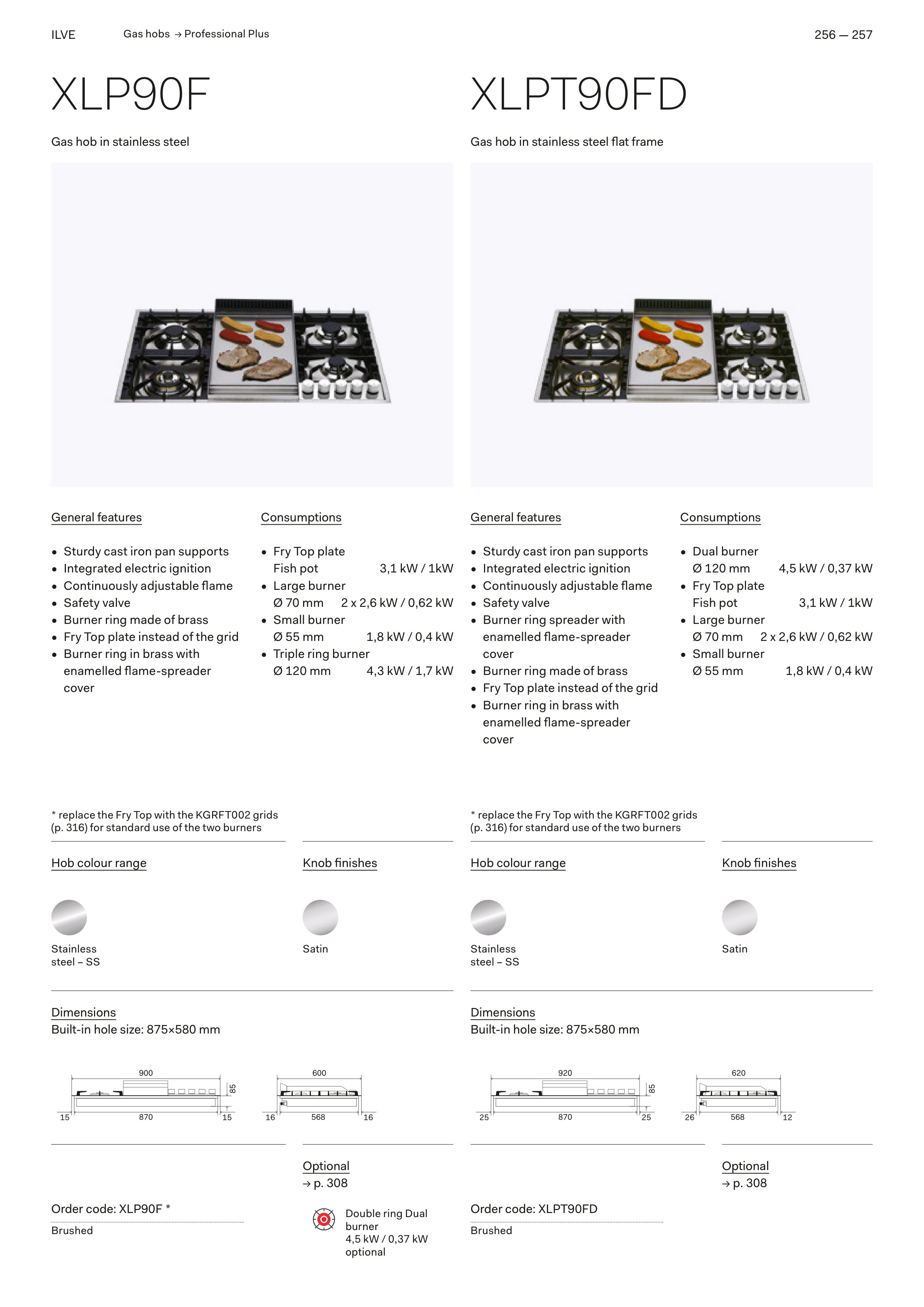

XLP90F
Gas hob in stainless steel
General features
• Sturdy cast iron pan supports
• Integrated electric ignition
• Continuously adjustable flame
• Safety valve
• Burner ring made of brass
• Fry Top plate instead of the grid
• Burner ring in brass with
enamelled flame-spreader
cover
Consumptions
• Fry Top plate
Fish pot
3,1 kW / 1kW
• Large burner
Ø 70 mm
2 x 2,6 kW / 0,62 kW
• Small burner
Ø 55 mm
1,8 kW / 0,4 kW
• Triple ring burner
Ø 120 mm
4,3 kW / 1,7 kW
Knob finishes
Satin
Optional
→ p. 308
Double ring Dual
burner
4,5 kW / 0,37 kW
optional
XLPT90FD
Gas hob in stainless steel flat frame
General features
• Sturdy cast iron pan supports
• Integrated electric ignition
• Continuously adjustable flame
• Safety valve
• Burner ring spreader with
enamelled flame-spreader
cover
• Burner ring made of brass
• Fry Top plate instead of the grid
• Burner ring in brass with
enamelled flame-spreader
cover
Consumptions
• Dual burner
Ø 120 mm
4,5 kW / 0,37 kW
• Fry Top plate
Fish pot
3,1 kW / 1kW
• Large burner
Ø 70 mm
2 x 2,6 kW / 0,62 kW
• Small burner
Ø 55 mm
1,8 kW / 0,4 kW
Knob finishes
Satin
Optional
→ p. 308
ILVE
Gas hobs → Professional Plus
256 — 257
