Hob colour range
Stainless
steel – SS
Dimensions
Built-in hole size: 1140×490 mm
65
1128
1180 ±1
26
26
531 ±1
27,5
27,5
476
Order code: HCPT125DD
Brushed
Hob colour range
Stainless
steel – SS
Dimensions
Built-in hole size: 1140×490 mm
65
1128
1180 ±1
26
26
531 ±1
27,5
27,5
476
Order code: HCPT125FDD
Brushed

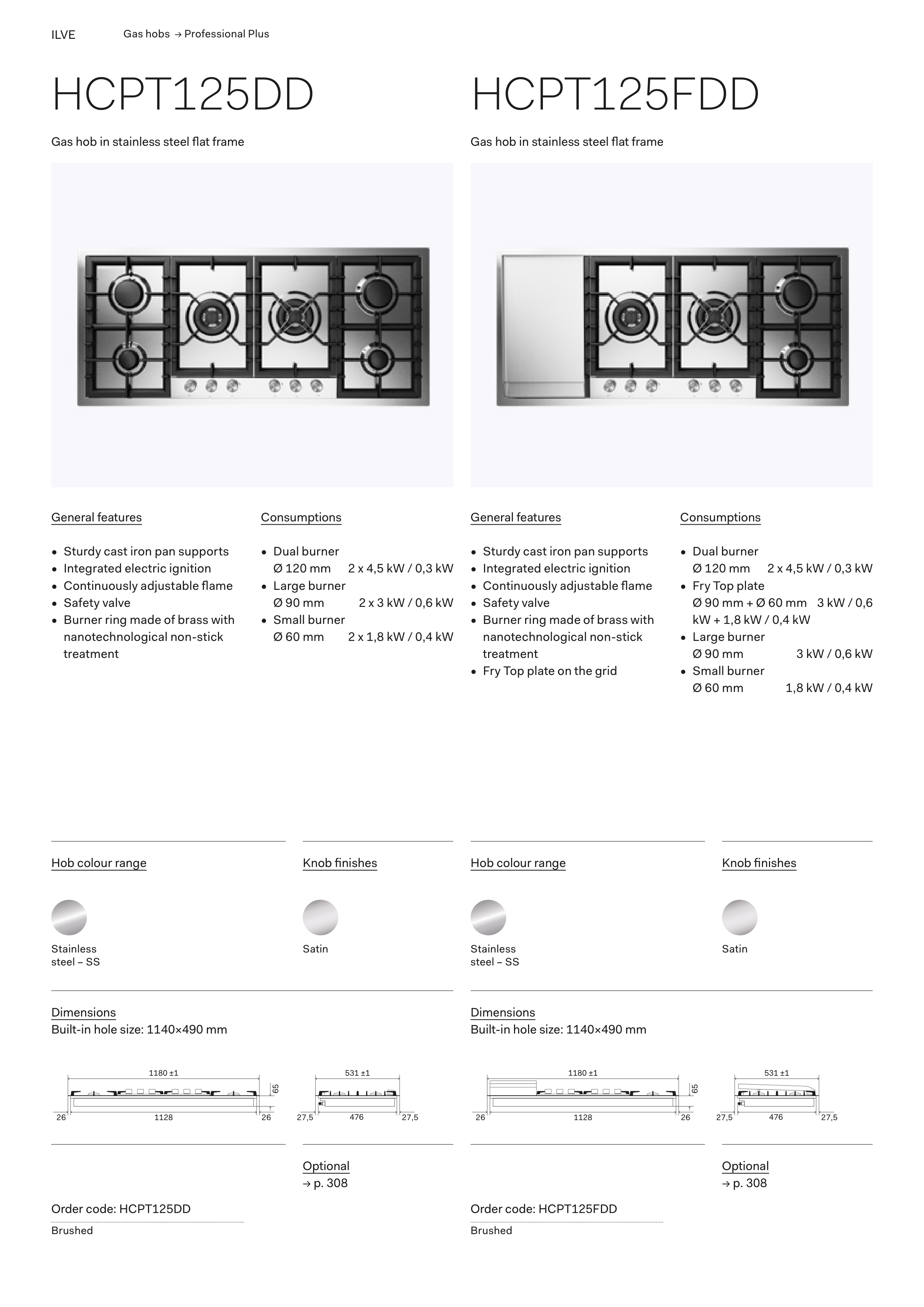

HCPT125DD
Gas hob in stainless steel flat frame
General features
• Sturdy cast iron pan supports
• Integrated electric ignition
• Continuously adjustable flame
• Safety valve
• Burner ring made of brass with
nanotechnological non-stick
treatment
Consumptions
• Dual burner
Ø 120 mm
2 x 4,5 kW / 0,3 kW
• Large burner
Ø 90 mm
2 x 3 kW / 0,6 kW
• Small burner
Ø 60 mm
2 x 1,8 kW / 0,4 kW
Knob finishes
Satin
Optional
→ p. 308
HCPT125FDD
Gas hob in stainless steel flat frame
General features
• Sturdy cast iron pan supports
• Integrated electric ignition
• Continuously adjustable flame
• Safety valve
• Burner ring made of brass with
nanotechnological non-stick
treatment
• Fry Top plate on the grid
Consumptions
• Dual burner
Ø 120 mm
2 x 4,5 kW / 0,3 kW
• Fry Top plate
Ø 90 mm + Ø 60 mm 3 kW / 0,6
kW + 1,8 kW / 0,4 kW
• Large burner
Ø 90 mm
3 kW / 0,6 kW
• Small burner
Ø 60 mm
1,8 kW / 0,4 kW
Knob finishes
Satin
Optional
→ p. 308
ILVE
Gas hobs → Professional Plus
