Hob colour range
Antique
white – AW
White – WH
Stainless
steel – SS
Graphite
matt – MG
Copper
plated – CC
Dimensions
Built-in hole size: 600×475 mm
590
700
45
55
55
20
10
14,5
500
470
Order code: HCB70SDN
Brass/Chrome
Burnished
Hob colour range
Antique
white – AW
White – WH
Stainless
steel – SS
Graphite
matt – MG
Copper
plated – CC
Dimensions
Built-in hole size: 835×475 mm
20
10
500
470
750
860
45
55
14,5
55
Order code: HCB906CN *
Brass/Chrome
Burnished

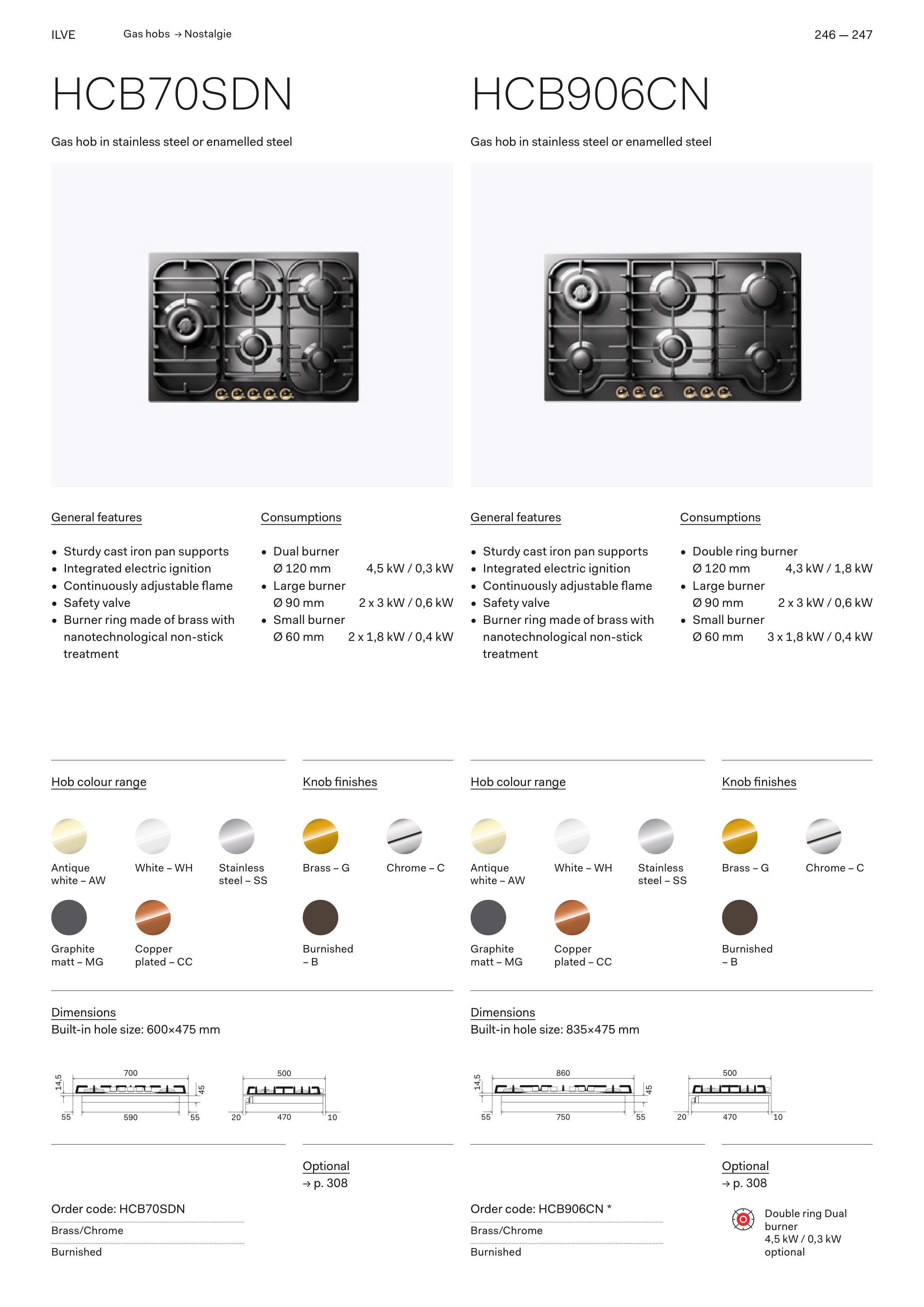

HCB70SDN
Gas hob in stainless steel or enamelled steel
General features
• Sturdy cast iron pan supports
• Integrated electric ignition
• Continuously adjustable flame
• Safety valve
• Burner ring made of brass with
nanotechnological non-stick
treatment
Consumptions
• Dual burner
Ø 120 mm
4,5 kW / 0,3 kW
• Large burner
Ø 90 mm
2 x 3 kW / 0,6 kW
• Small burner
Ø 60 mm
2 x 1,8 kW / 0,4 kW
Knob finishes
Brass – G
Chrome – C
Burnished
– B
Optional
→ p. 308
HCB906CN
Gas hob in stainless steel or enamelled steel
General features
• Sturdy cast iron pan supports
• Integrated electric ignition
• Continuously adjustable flame
• Safety valve
• Burner ring made of brass with
nanotechnological non-stick
treatment
Consumptions
• Double ring burner
Ø 120 mm
4,3 kW / 1,8 kW
• Large burner
Ø 90 mm
2 x 3 kW / 0,6 kW
• Small burner
Ø 60 mm
3 x 1,8 kW / 0,4 kW
Knob finishes
Brass – G
Chrome – C
Burnished
– B
Optional
→ p. 308
Double ring Dual
burner
4,5 kW / 0,3 kW
optional
ILVE
Gas hobs → Nostalgie
246 — 247
