Electric oven
Primary oven:
OV 80 M3
Maximum input:
2,75 kW
Secondary oven:
OV 30 E
Maximum input:
1,7 kW
Available ovens
8 burners
8 burners with fry top*
L128WM3
Brushed
L12FWM3
Brushed
Configurations
Electric oven
* replace the Fry Top with the EA2630001000000 grids (p. 316) for standard use of the two burners
Consumption
Double ring
burner
4,3 kW / 1,8 kW
Fry Top plate
double burner
3 kW / 0,6 kW
1,8 kW / 0,4 kW
Big burner
3 kW / 0,6 kW
Small burner
1,8 kW / 0,4 kW
Hood
AGK120
Ladle holder panel
AP4-120
Accessories
→ p. 308
15
60
35
55
585
40
860÷920
600
760
60
1200
100÷160

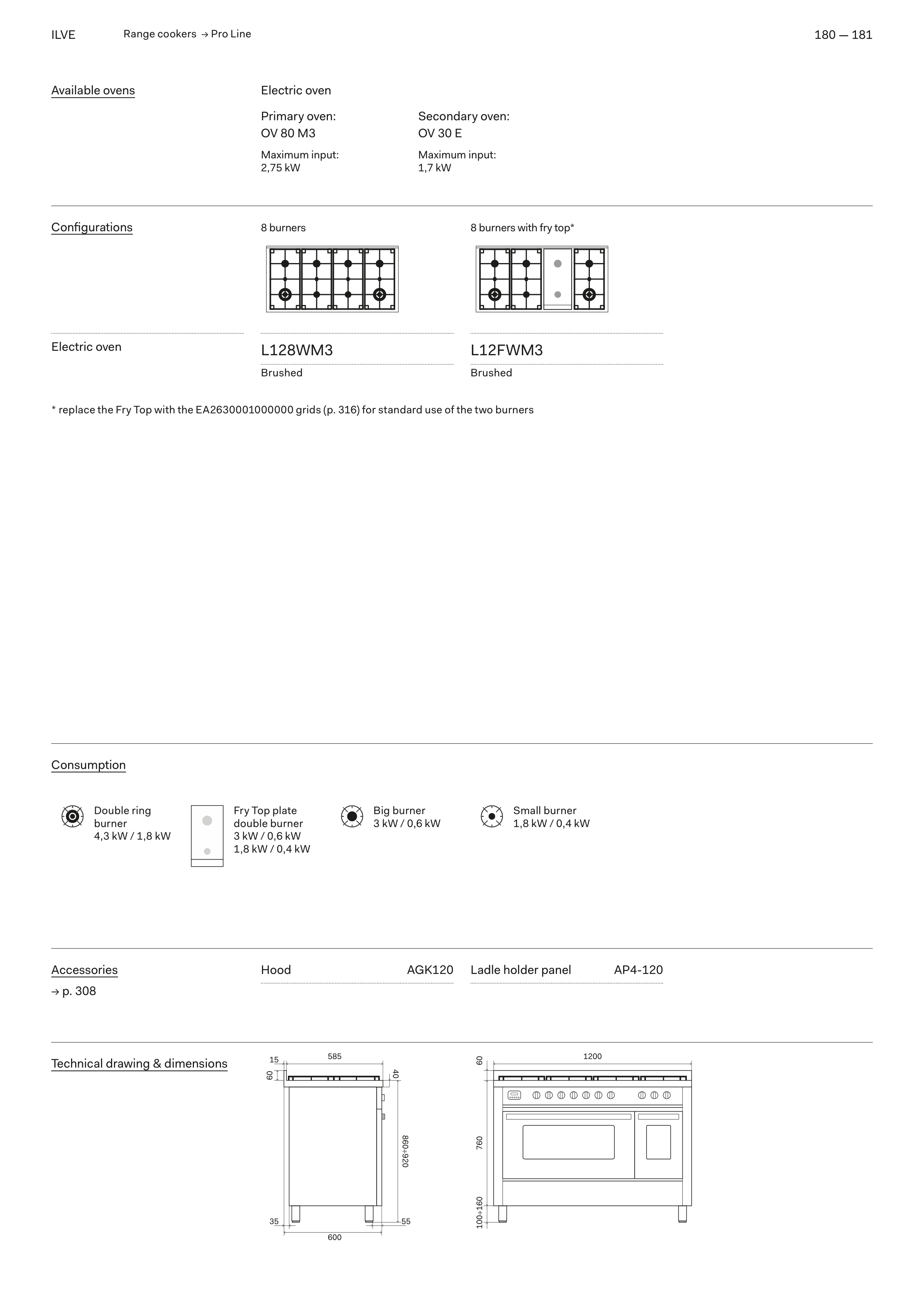

Technical drawing & dimensions
ILVE
Range cookers → Pro Line
180 — 181
