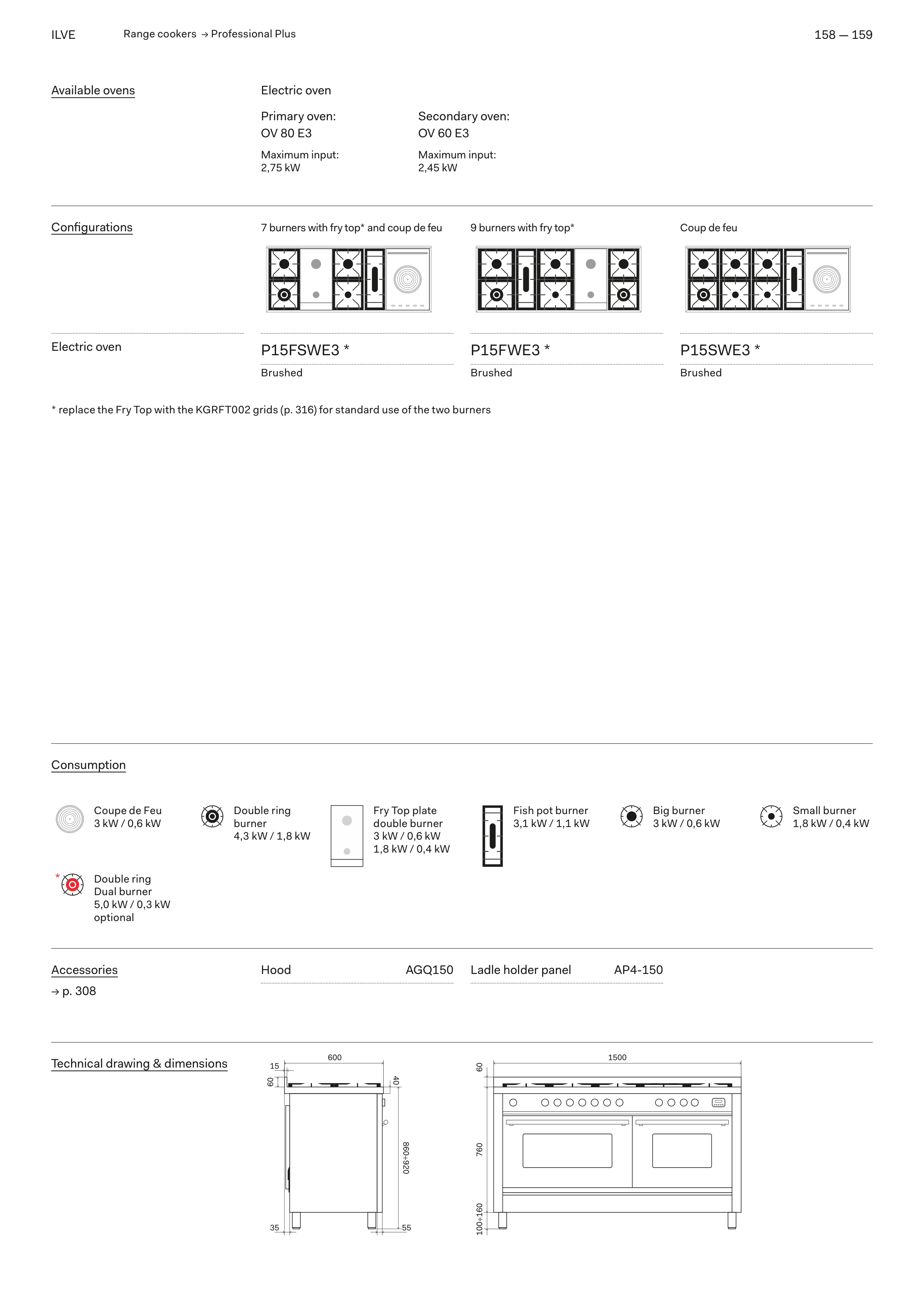

Electric oven
Primary oven:
OV 80 E3
Maximum input:
2,75 kW
Secondary oven:
OV 60 E3
Maximum input:
2,45 kW
Available ovens
7 burners with fry top* and coup de feu
9 burners with fry top*
Coup de feu
P15FSWE3 *
Brushed
P15FWE3 *
Brushed
P15SWE3 *
Brushed
Configurations
Electric oven
* replace the Fry Top with the KGRFT002 grids (p. 316) for standard use of the two burners
Consumption
Coupe de Feu
3 kW / 0,6 kW
Double ring
burner
4,3 kW / 1,8 kW
Fry Top plate
double burner
3 kW / 0,6 kW
1,8 kW / 0,4 kW
Fish pot burner
3,1 kW / 1,1 kW
Big burner
3 kW / 0,6 kW
Small burner
1,8 kW / 0,4 kW
Double ring
Dual burner
5,0 kW / 0,3 kW
optional
Hood
AGQ150
Ladle holder panel
AP4-150
Accessories
→ p. 308
15
60
35
55
40
860÷920
600
760
60
1500
100÷160
Technical drawing & dimensions
ILVE
Range cookers → Professional Plus
158 — 159
