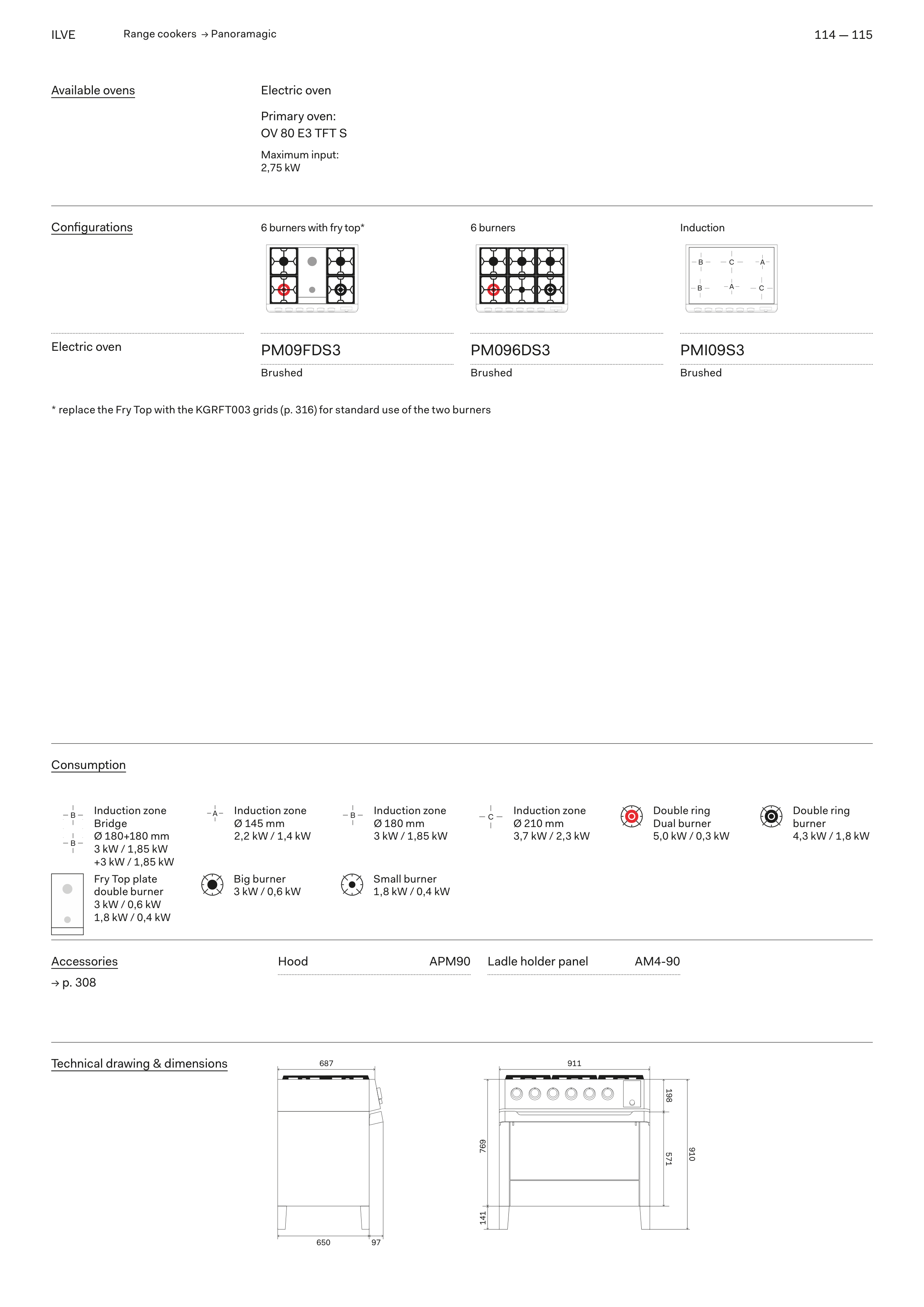

Electric oven
Primary oven:
OV 80 E3 TFT S
Maximum input:
2,75 kW
Available ovens
6 burners with fry top*
6 burners
Induction
B
A
B
A
C
C
PM09FDS3
Brushed
PM096DS3
Brushed
PMI09S3
Brushed
Configurations
Electric oven
* replace the Fry Top with the KGRFT003 grids (p. 316) for standard use of the two burners
Consumption
Induction zone
Bridge
Ø 180+180 mm
3 kW / 1,85 kW
+3 kW / 1,85 kW
Induction zone
Ø 145 mm
2,2 kW / 1,4 kW
Induction zone
Ø 180 mm
3 kW / 1,85 kW
Induction zone
Ø 210 mm
3,7 kW / 2,3 kW
Double ring
Dual burner
5,0 kW / 0,3 kW
Double ring
burner
4,3 kW / 1,8 kW
Fry Top plate
double burner
3 kW / 0,6 kW
1,8 kW / 0,4 kW
Big burner
3 kW / 0,6 kW
Small burner
1,8 kW / 0,4 kW
687
650
97
910
198
571
911
769
141
Technical drawing & dimensions
ILVE
Range cookers → Panoramagic
114 — 115
Hood
APM90
Ladle holder panel
AM4-90
Accessories
→ p. 308
