Working Catalogue - Outdoor
www.formalighting.com
Body
Optic
Applications
LED sources
Finish
Driver
Accessories
Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.

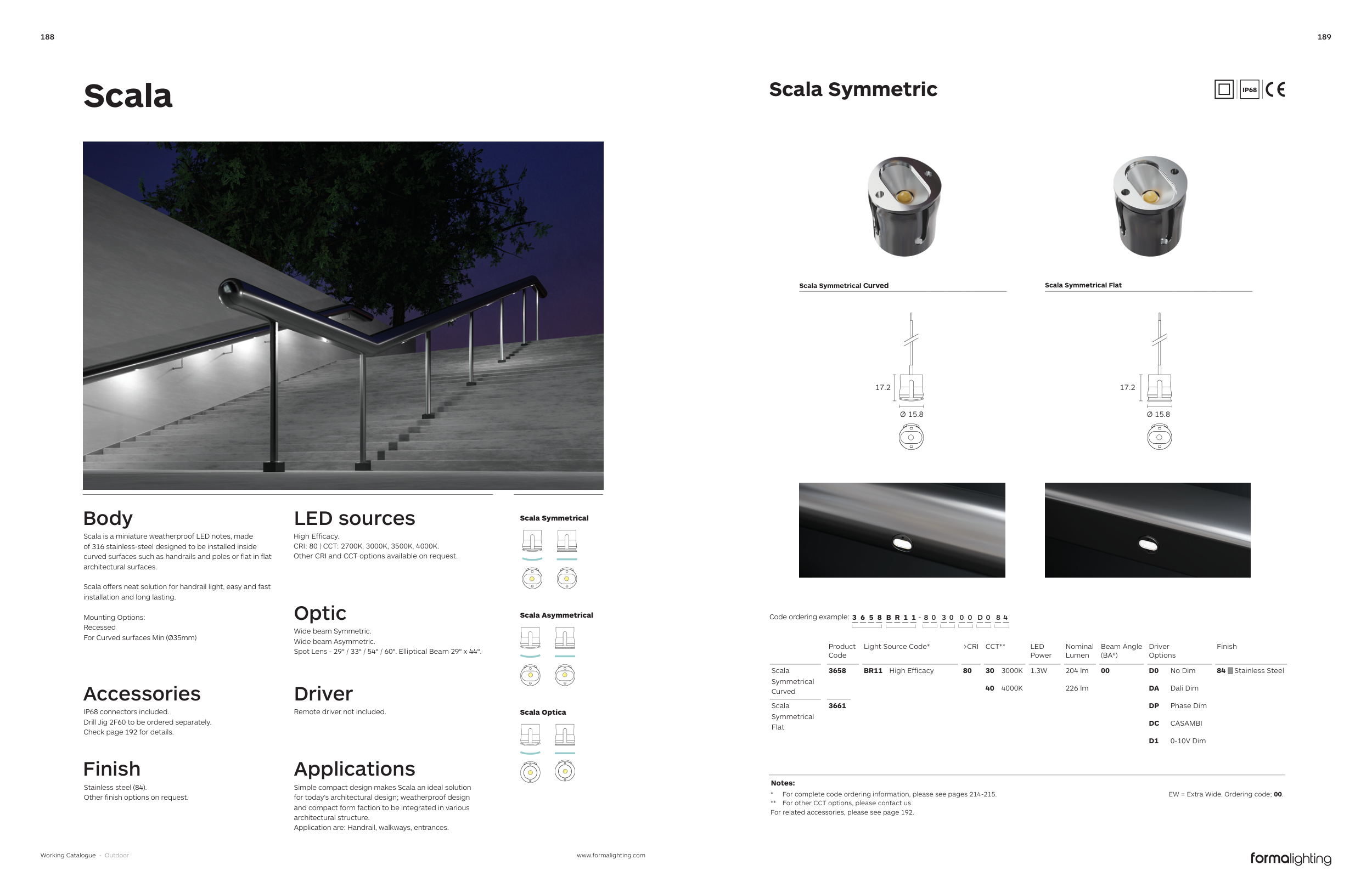

Scala Symmetrical
Scala Asymmetrical
Scala Optica
For related accessories, please see page 192.
Simple compact design makes Scala an ideal solution
for today’s architectural design; weatherproof design
and compact form faction to be integrated in various
architectural structure.
Application are: Handrail, walkways, entrances.
Stainless steel (84).
Other finish options on request.
Remote driver not included.
Wide beam Symmetric.
Wide beam Asymmetric.
Spot Lens - 29° / 33° / 54° / 60°. Elliptical Beam 29° x 44°.
IP68 connectors included.
Drill Jig 2F60 to be ordered separately.
Check page 192 for details.
Scala is a miniature weatherproof LED notes, made
of 316 stainless-steel designed to be installed inside
curved surfaces such as handrails and poles or flat in flat
architectural surfaces.
Scala offers neat solution for handrail light, easy and fast
installation and long lasting.
Mounting Options:
Recessed
For Curved surfaces Min (Ø35mm)
Scala
IP68
Scala Symmetric
Product
Code
Light Source Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Scala
Symmetrical
Curved
3658
BR11
High Efficacy
80
30
3000K
1.3W
204 lm
00
D0
No Dim
84
Stainless Steel
40
4000K
226 lm
DA
Dali Dim
Scala
Symmetrical
Flat
3661
DP
Phase Dim
DC
CASAMBI
D1
0-10V Dim
-
3 6 5 8 B R 1 1
8 0
3 0
0 0 D 0 8 4
Code ordering example:
Scala Symmetrical Curved
Scala Symmetrical Flat
17.2
Ø 15.8
17.2
Ø 15.8
High Efficacy.
CRI: 80 | CCT: 2700K, 3000K, 3500K, 4000K.
Other CRI and CCT options available on request.
EW = Extra Wide. Ordering code; 00.
