Notes:
*
For complete code ordering information, please see pages 214-215.
** For other CCT options, please contact us.
Related Products
Body
Optic
Applications
LED sources
Finish
Driver
Accessories
- Recessed
Light source options: COB LED. Retrofit.
CRI: 90 | CCT: 3000K, 4000K.
Other CRI and CCT options available on request.
Lens or reflector.
Beam Angle: Narrow / Medium / Wide.
Supplied with non-dimmable remote driver.
Dimming Options: 0-10V Dim, DALI, Phase, CASAMBI.
220-240V 50/60Hz.
Organic form, provide excellent glare control to
minimize impact while piercing through ambient light
levels to meet the highest functional requirements of
architectural lighting design.
Application areas: hotels, residential, retail, galleries.
Powder coat in black (10), Embossed matt black (65),
white (11), or Embossed matt white (54).
N/A
Round-shaped mounting in cast aluminum with brackets
(Ovo 160) or clamps (Ovo 90, 65) for trim installation on
ceiling thickness max. 12mm or brakets
for trimless installation on ceiling thickness max. 30mm.
Luminaire body in cast aluminum. Regressed lamp holder
position for minimum glare.
Adjustable version tiltable vertically 0°-30° and rotatable
horizontally 350°.
Punto
Recessed
P.42-45
Lumi
Recessed
P.46-49

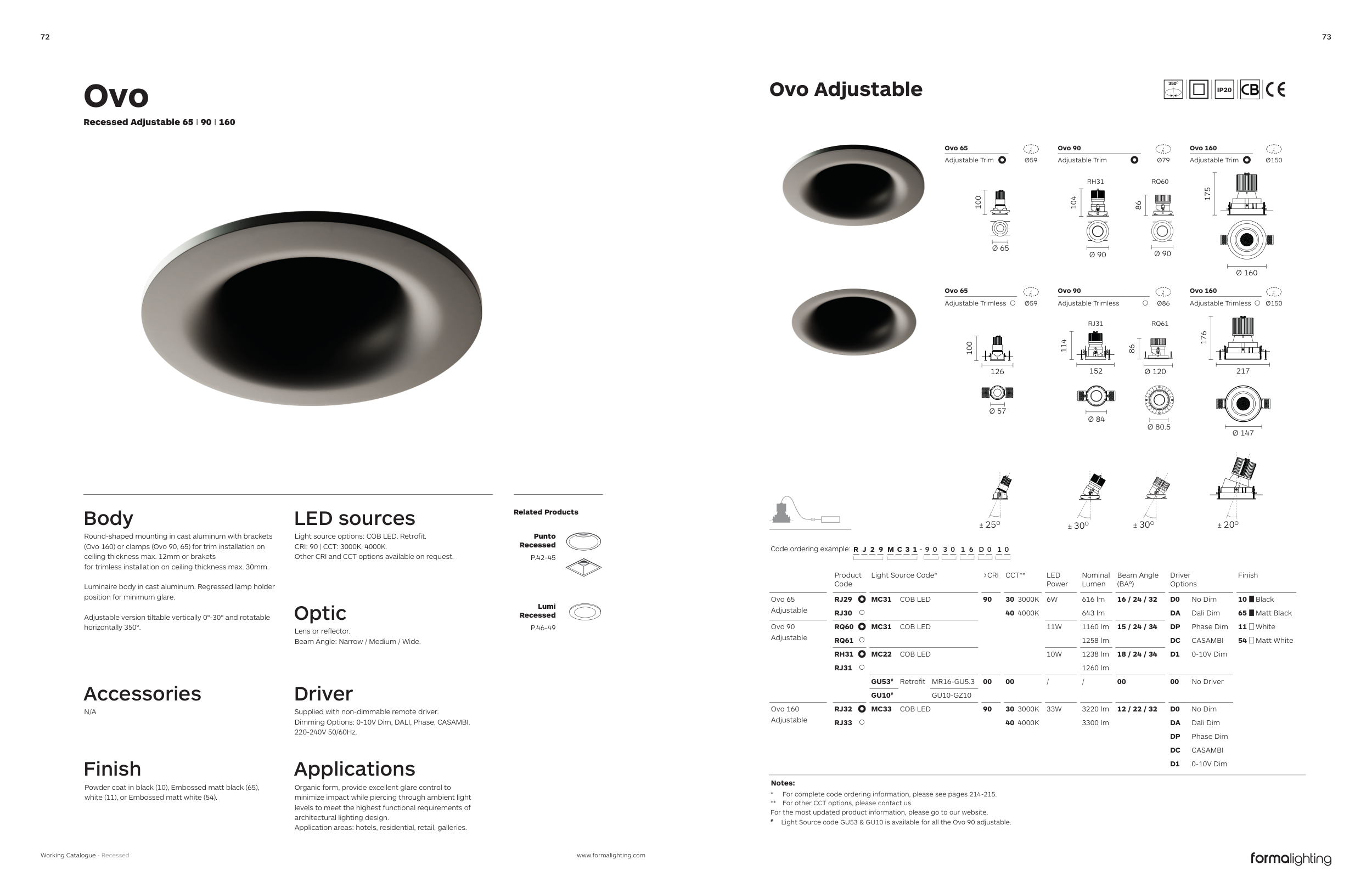

Recessed Adjustable 65 I 90 I 160
Ovo
For the most updated product information, please go to our website.
# Light Source code GU53 & GU10 is available for all the Ovo 90 adjustable.
Ovo Adjustable
350O
IP20
Ovo 65
Ovo 90
Ovo 160
Adjustable Trim
Ø59
Adjustable Trim
Ø79
Adjustable Trim
Ø150
100
104
86
175
Ø 65
Ø 90
Ø 90
Ø 160
Ovo 65
Ovo 90
Ovo 160
Adjustable Trimless
Ø59
Adjustable Trimless
Ø86
Adjustable Trimless
Ø150
100
126
152
114
Ø 120
86
176
217
Ø 57
Ø 84
Ø 80.5
Ø 147
± 20O
± 25O
Product
Code
Light Source Code*
>CRI
CCT**
LED
Power
Nominal
Lumen
Beam Angle
(BAº)
Driver
Options
Finish
Ovo 65
Adjustable
RJ29
MC31
COB LED
90
30 3000K
6W
616 lm
16 / 24 / 32
D0
No Dim
10
Black
RJ30
40 4000K
643 lm
DA
Dali Dim
65
Matt Black
Ovo 90
Adjustable
RQ60
MC31
COB LED
11W
1160 lm
15 / 24 / 34
DP
Phase Dim
11
White
RQ61
1258 lm
DC
CASAMBI
54
Matt White
RH31
MC22
COB LED
10W
1238 lm
18 / 24 / 34
D1
0-10V Dim
RJ31
1260 lm
GU53#
Retrofit
MR16-GU5.3
00
00
/
/
00
00
No Driver
GU10#
GU10-GZ10
Ovo 160
Adjustable
RJ32
MC33
COB LED
90
30 3000K
33W
3220 lm
12 / 22 / 32
D0
No Dim
RJ33
40 4000K
3300 lm
DA
Dali Dim
DP
Phase Dim
DC
CASAMBI
D1
0-10V Dim
-
R J 2 9 M C 3 1
9 0
3 0
1 6 D 0 1 0
Code ordering example:
± 30O
RQ60
RQ61
RH31
RJ31
± 30O
