33
Notes:
*
For complete code ordering information, please see page 79.
Body
Optic
LED sources
Applications
Finish
Driver
Accessories
32
MOTOLUX Motorized Remote Controlled Lighting
www.formalighting.com
** For other CCT options, Tuneable White and DimToWarm versions please contact us.

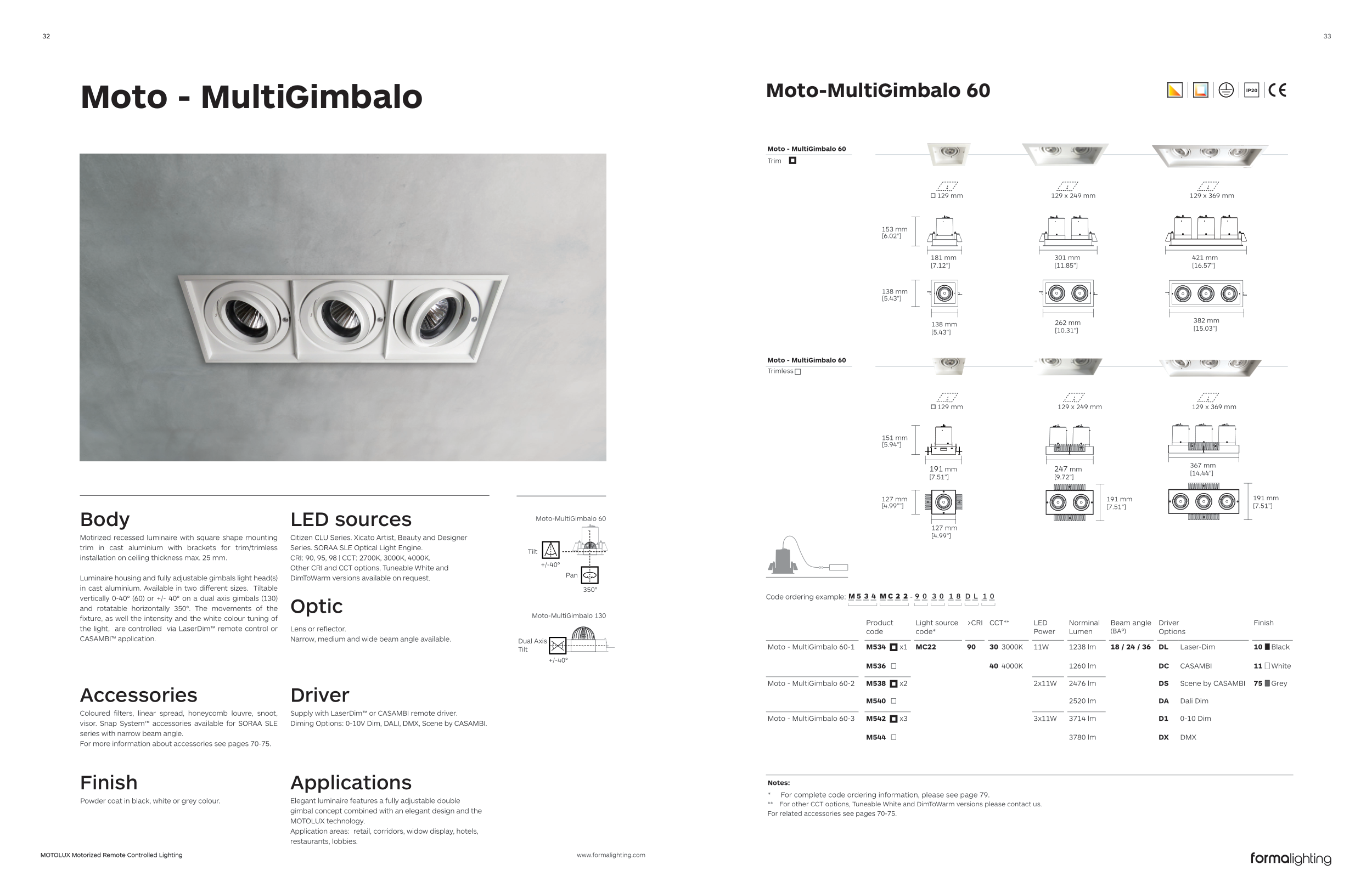

Moto - MultiGimbalo
Lens or reflector.
Narrow, medium and wide beam angle available.
Motirized recessed luminaire with square shape mounting
trim in cast aluminium with brackets for trim/trimless
installation on ceiling thickness max. 25 mm.
Luminaire housing and fully adjustable gimbals light head(s)
in cast aluminium. Available in two different sizes. Tiltable
vertically 0-40° (60) or +/- 40° on a dual axis gimbals (130)
and rotatable horizontally 350°. The movements of the
fixture, as well the intensity and the white colour tuning of
the light, are controlled via LaserDim™ remote control or
CASAMBI™ application.
Citizen CLU Series. Xicato Artist, Beauty and Designer
Series. SORAA SLE Optical Light Engine.
CRI: 90, 95, 98 | CCT: 2700K, 3000K, 4000K.
Other CRI and CCT options, Tuneable White and
DimToWarm versions available on request.
Elegant luminaire features a fully adjustable double
gimbal concept combined with an elegant design and the
MOTOLUX technology.
Application areas: retail, corridors, widow display, hotels,
restaurants, lobbies.
Powder coat in black, white or grey colour.
Supply with LaserDim™ or CASAMBI remote driver.
Diming Options: 0-10V Dim, DALI, DMX, Scene by CASAMBI.
Coloured filters, linear spread, honeycomb louvre, snoot,
visor. Snap System™ accessories available for SORAA SLE
series with narrow beam angle.
For more information about accessories see pages 70-75.
32
MOTOLUX Motorized Remote Controlled Lighting
Moto-MultiGimbalo 60
Moto - MultiGimbalo 60
Trim
Moto - MultiGimbalo 60
Trimless
-
M 5 3 4 M C 2 2
9 0 3 0 1 8 D L 1 0
Code ordering example:
IP20
Product
code
Light source
code*
>CRI
CCT**
LED
Power
Norminal
Lumen
Beam angle
(BAº)
Driver
Options
Finish
Moto - MultiGimbalo 60-1
M534
x1
MC22
90
30 3000K
11W
1238 lm
18 / 24 / 36
DL
Laser-Dim
10
Black
M536
40 4000K
1260 lm
DC
CASAMBI
11
White
Moto - MultiGimbalo 60-2
M538
x2
2x11W
2476 lm
DS
Scene by CASAMBI
75
Grey
M540
2520 lm
DA
Dali Dim
Moto - MultiGimbalo 60-3
M542
x3
3x11W
3714 lm
D1
0-10 Dim
M544
3780 lm
DX
DMX
129 mm
129 x 249 mm
129 x 369 mm
153 mm
[6.02”]
151 mm
[5.94”]
129 mm
129 x 249 mm
129 x 369 mm
181 mm
[7.12”]
301 mm
[11.85”]
421 mm
[16.57”]
138 mm
[5.43”]
127 mm
[4.99””]
191 mm
[7.51”]
138 mm
[5.43”]
127 mm
[4.99”]
191 mm
[7.51”]
247 mm
[9.72”]
262 mm
[10.31”]
382 mm
[15.03”]
191 mm
[7.51”]
367 mm
[14.44”]
Moto-MultiGimbalo 130
+/-40°
Moto-MultiGimbalo 60
350°
Pan
Tilt
For related accessories see pages 70-75.
Dual Axis
Tilt
+/-40°
