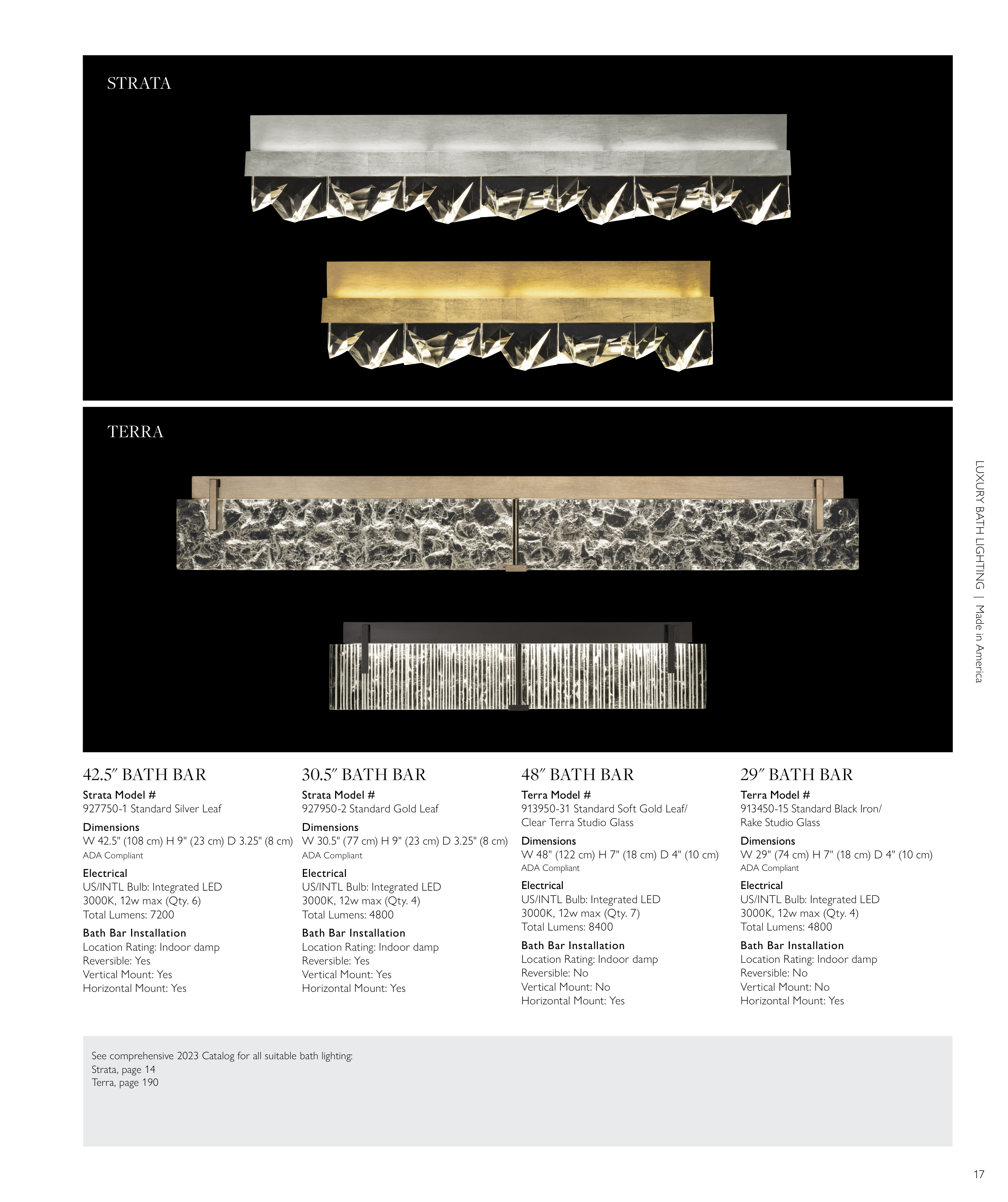

42.5" BATH BAR
Strata Model #
927750-1 Standard Silver Leaf
Dimensions
W 42.5" (108 cm) H 9" (23 cm) D 3.25" (8 cm)
ADA Compliant
Electrical
US/INTL Bulb: Integrated LED
3000K, 12w max (Qty. 6)
Total Lumens: 7200
Bath Bar Installation
Location Rating: Indoor damp
Reversible: Yes
Vertical Mount: Yes
Horizontal Mount: Yes
30.5" BATH BAR
Strata Model #
927950-2 Standard Gold Leaf
Dimensions
W 30.5" (77 cm) H 9" (23 cm) D 3.25" (8 cm)
ADA Compliant
Electrical
US/INTL Bulb: Integrated LED
3000K, 12w max (Qty. 4)
Total Lumens: 4800
Bath Bar Installation
Location Rating: Indoor damp
Reversible: Yes
Vertical Mount: Yes
Horizontal Mount: Yes
48" BATH BAR
Terra Model #
913950-31 Standard Soft Gold Leaf/
Clear Terra Studio Glass
Dimensions
W 48" (122 cm) H 7" (18 cm) D 4" (10 cm)
ADA Compliant
Electrical
US/INTL Bulb: Integrated LED
3000K, 12w max (Qty. 7)
Total Lumens: 8400
Bath Bar Installation
Location Rating: Indoor damp
Reversible: No
Vertical Mount: No
Horizontal Mount: Yes
29" BATH BAR
Terra Model #
913450-15 Standard Black Iron/
Rake Studio Glass
Dimensions
W 29" (74 cm) H 7" (18 cm) D 4" (10 cm)
ADA Compliant
Electrical
US/INTL Bulb: Integrated LED
3000K, 12w max (Qty. 4)
Total Lumens: 4800
Bath Bar Installation
Location Rating: Indoor damp
Reversible: No
Vertical Mount: No
Horizontal Mount: Yes
See comprehensive 2023 Catalog for all suitable bath lighting:
Strata, page 14
Terra, page 190
STRATA
TERRA
LUXURY BATH LIGHTING | Made in America
17
