The Ekinex® EK-EI2-TP-4 device is a KNX S-mode appliance designed for the independent regulation of the temperature
of a room or an area of a building. It also allows to view the status and control a variety of KNX devices by touching the
icons on the touch display interface to perform some pre-set functions: room thermostat, ON/OFF control of utilities,
scenes activation, control of motorized drives for blinds (such as roller shutters, curtains, venetian blinds or roller
shutters), control and dimming of lighting devices, logics and other functions via bus.
The device is primarily designed for use in the control system of houses and buildings. Wall installation is
envisaged, with assembly in conventional junction boxes as per the Ekinex® planner (which can be reached
at https://planner.ekinex.com/). The product is suitable not only for European standards, but also for Chinese
and American ones. It is powered by the KNX bus and requires a 24-30 Vdc auxiliary power supply. Physical
addressing and parameter configuration can be carried out using the ETS KNX software (starting from version
5.7) with the .knxprod file.
Touch&Control
WALL-MOUNT DEVICES

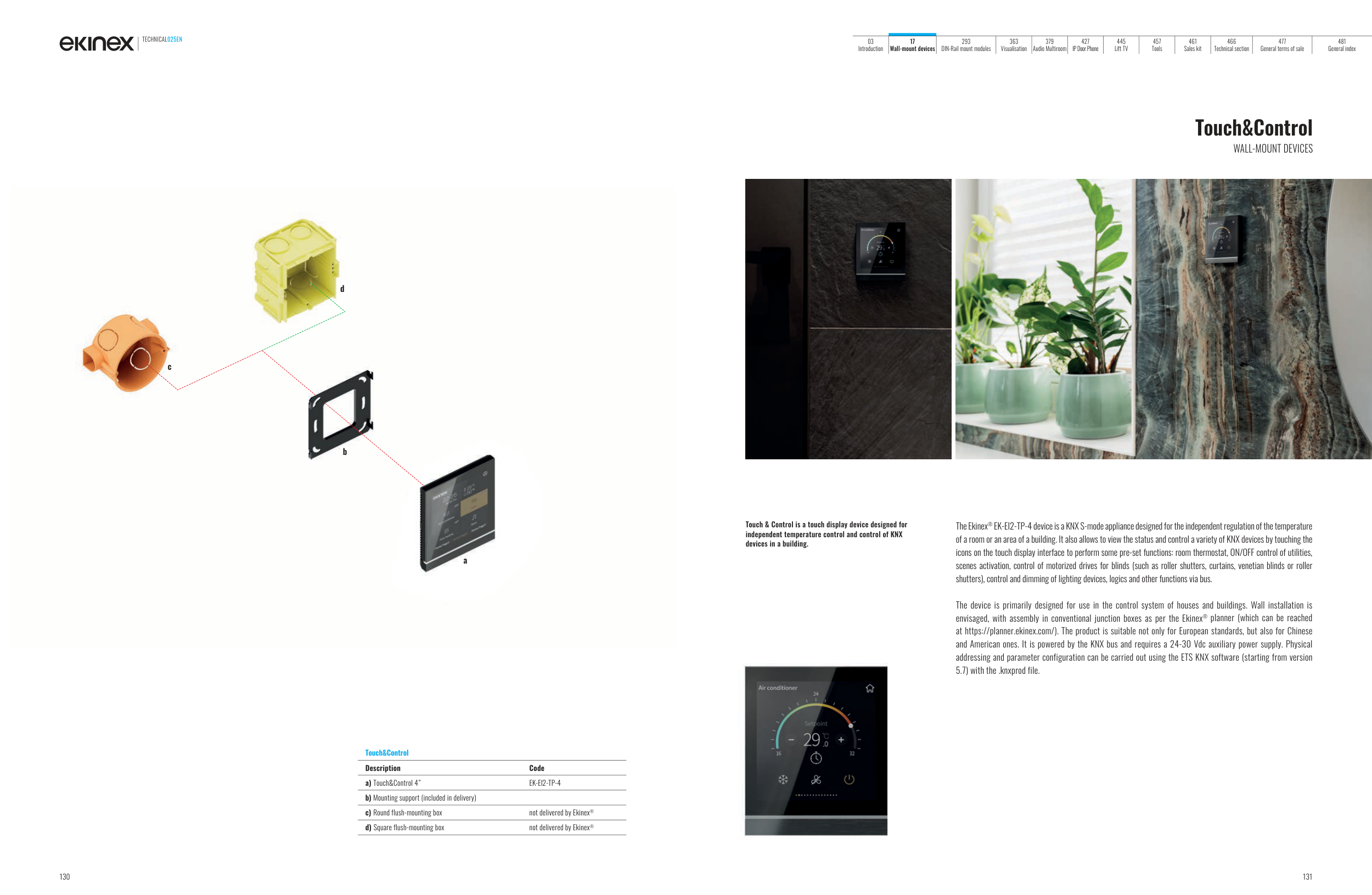

Touch & Control is a touch display device designed for
independent temperature control and control of KNX
devices in a building.
Touch&Control
Description
Code
a) Touch&Control 4”
EK-EI2-TP-4
b) Mounting support (included in delivery)
c) Round flush-mounting box
not delivered by Ekinex®
d) Square flush-mounting box
not delivered by Ekinex®
a
b
c
d
