Controls
Thermostat
Date
Weather
Music
Scenes

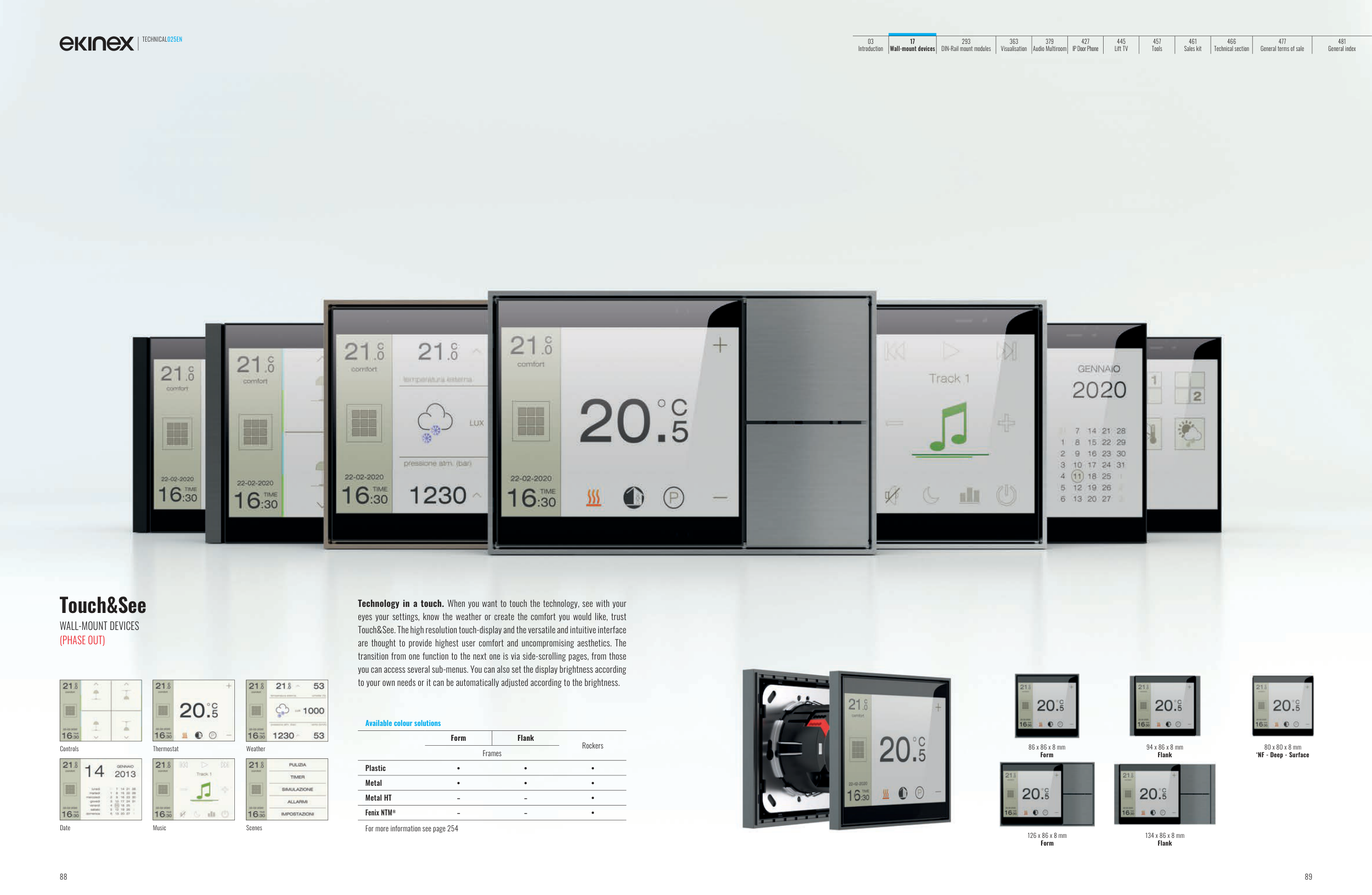

Technology in a touch. When you want to touch the technology, see with your
eyes your settings, know the weather or create the comfort you would like, trust
Touch&See. The high resolution touch-display and the versatile and intuitive interface
are thought to provide highest user comfort and uncompromising aesthetics. The
transition from one function to the next one is via side-scrolling pages, from those
you can access several sub-menus. You can also set the display brightness according
to your own needs or it can be automatically adjusted according to the brightness.
Touch&See
WALL-MOUNT DEVICES
(PHASE OUT)
134 x 86 x 8 mm
Flank
94 x 86 x 8 mm
Flank
80 x 80 x 8 mm
‘NF - Deep - Surface
86 x 86 x 8 mm
Form
126 x 86 x 8 mm
Form
Available colour solutions
Form
Flank
Rockers
Frames
Plastic
•
•
•
Metal
•
•
•
Metal HT
-
-
•
Fenix NTM®
-
-
•
For more information see page 254
