Documentation
For more information see the technical documentation,
download from www.ekinex.com

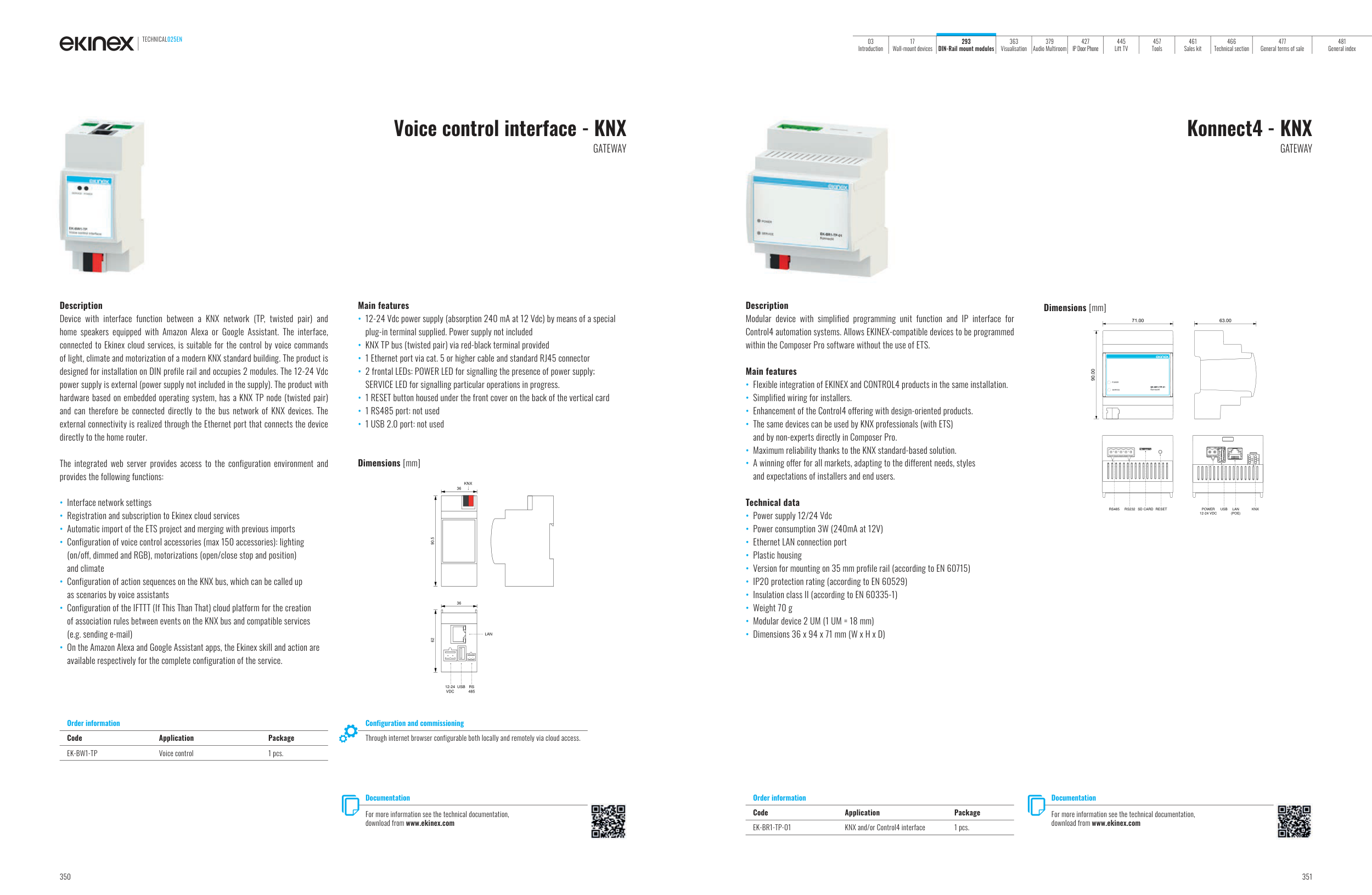

Voice control interface - KNX
GATEWAY
Order information
Code
Application
Package
EK-BW1-TP
Voice control
1 pcs.
Configuration and commissioning
Through internet browser configurable both locally and remotely via cloud access.
Description
Device with interface function between a KNX network (TP, twisted pair) and
home speakers equipped with Amazon Alexa or Google Assistant. The interface,
connected to Ekinex cloud services, is suitable for the control by voice commands
of light, climate and motorization of a modern KNX standard building. The product is
designed for installation on DIN profile rail and occupies 2 modules. The 12-24 Vdc
power supply is external (power supply not included in the supply). The product with
hardware based on embedded operating system, has a KNX TP node (twisted pair)
and can therefore be connected directly to the bus network of KNX devices. The
external connectivity is realized through the Ethernet port that connects the device
directly to the home router.
The integrated web server provides access to the configuration environment and
provides the following functions:
• Interface network settings
• Registration and subscription to Ekinex cloud services
• Automatic import of the ETS project and merging with previous imports
• Configuration of voice control accessories (max 150 accessories): lighting
(on/off, dimmed and RGB), motorizations (open/close stop and position)
and climate
• Configuration of action sequences on the KNX bus, which can be called up
as scenarios by voice assistants
• Configuration of the IFTTT (If This Than That) cloud platform for the creation
of association rules between events on the KNX bus and compatible services
(e.g. sending e-mail)
• On the Amazon Alexa and Google Assistant apps, the Ekinex skill and action are
available respectively for the complete configuration of the service.
Main features
• 12-24 Vdc power supply (absorption 240 mA at 12 Vdc) by means of a special
plug-in terminal supplied. Power supply not included
• KNX TP bus (twisted pair) via red-black terminal provided
• 1 Ethernet port via cat. 5 or higher cable and standard RJ45 connector
• 2 frontal LEDs: POWER LED for signalling the presence of power supply;
SERVICE LED for signalling particular operations in progress.
• 1 RESET button housed under the front cover on the back of the vertical card
• 1 RS485 port: not used
• 1 USB 2.0 port: not used
Dimensions [mm]
LAN
USB
62
90.5
36
12-24
VDC
KNX
RS
485
36
TECHNICAL025EN
350
351
03
Introduction
17
Wall-mount devices
293
DIN-Rail mount modules
363
Visualisation
379
Audio Multiroom
427
IP Door Phone
445
Lift TV
457
Tools
461
Sales kit
466
Technical section
477
General terms of sale
481
General index
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Konnect4 - KNX
GATEWAY
Order information
Code
Application
Package
EK-BR1-TP-01
KNX and/or Control4 interface
1 pcs.
Description
Modular device with simplified programming unit function and IP interface for
Control4 automation systems. Allows EKINEX-compatible devices to be programmed
within the Composer Pro software without the use of ETS.
Main features
• Flexible integration of EKINEX and CONTROL4 products in the same installation.
• Simplified wiring for installers.
• Enhancement of the Control4 offering with design-oriented products.
• The same devices can be used by KNX professionals (with ETS)
and by non-experts directly in Composer Pro.
• Maximum reliability thanks to the KNX standard-based solution.
• A winning offer for all markets, adapting to the different needs, styles
and expectations of installers and end users.
Technical data
• Power supply 12/24 Vdc
• Power consumption 3W (240mA at 12V)
• Ethernet LAN connection port
• Plastic housing
• Version for mounting on 35 mm profile rail (according to EN 60715)
• IP20 protection rating (according to EN 60529)
• Insulation class II (according to EN 60335-1)
• Weight 70 g
• Modular device 2 UM (1 UM = 18 mm)
• Dimensions 36 x 94 x 71 mm (W x H x D)
Dimensions [mm]
RS485
RS232 SD CARD RESET
POWER
12-24 VDC
KNX
USB
LAN
(POE)
SERVICE
POWER
EK-BR1-TP-01
Konnect4
