Order information
Code
Package
EK-FG1-TP
1 pcs.
Configuration and commissioning
By means of ETS5 software or later versions
Application program APEKFG1TP##.knxprod
(download from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Configuration and commissioning
By means of ETS5 software or later versions
Application program APEKFI1TP##.knxprod
(download from www.ekinex.com)
Documentation
For more information see the technical documentation,
download from www.ekinex.com
Order information
Code
Package
EK-FI1-TP
1 pcs.

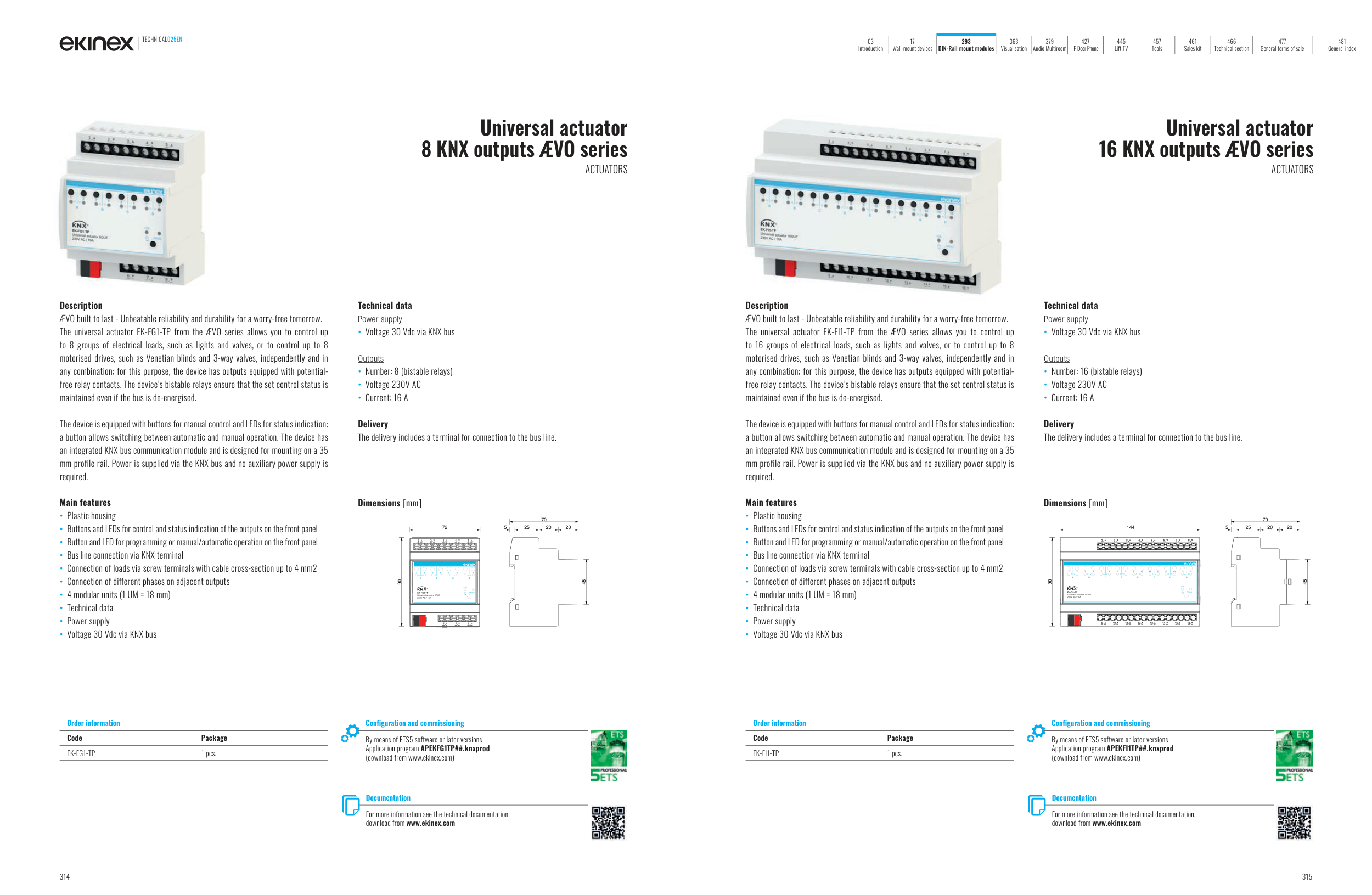

Universal actuator
8 KNX outputs ÆVO series
ACTUATORS
Universal actuator
16 KNX outputs ÆVO series
ACTUATORS
Description
ÆVO built to last - Unbeatable reliability and durability for a worry-free tomorrow.
The universal actuator EK-FG1-TP from the ÆVO series allows you to control up
to 8 groups of electrical loads, such as lights and valves, or to control up to 8
motorised drives, such as Venetian blinds and 3-way valves, independently and in
any combination; for this purpose, the device has outputs equipped with potential-
free relay contacts. The device’s bistable relays ensure that the set control status is
maintained even if the bus is de-energised.
The device is equipped with buttons for manual control and LEDs for status indication;
a button allows switching between automatic and manual operation. The device has
an integrated KNX bus communication module and is designed for mounting on a 35
mm profile rail. Power is supplied via the KNX bus and no auxiliary power supply is
required.
Main features
• Plastic housing
• Buttons and LEDs for control and status indication of the outputs on the front panel
• Button and LED for programming or manual/automatic operation on the front panel
• Bus line connection via KNX terminal
• Connection of loads via screw terminals with cable cross-section up to 4 mm2
• Connection of different phases on adjacent outputs
• 4 modular units (1 UM = 18 mm)
• Technical data
• Power supply
• Voltage 30 Vdc via KNX bus
Technical data
Power supply
• Voltage 30 Vdc via KNX bus
Outputs
• Number: 8 (bistable relays)
• Voltage 230V AC
• Current: 16 A
Delivery
The delivery includes a terminal for connection to the bus line.
Description
ÆVO built to last - Unbeatable reliability and durability for a worry-free tomorrow.
The universal actuator EK-FI1-TP from the ÆVO series allows you to control up
to 16 groups of electrical loads, such as lights and valves, or to control up to 8
motorised drives, such as Venetian blinds and 3-way valves, independently and in
any combination; for this purpose, the device has outputs equipped with potential-
free relay contacts. The device’s bistable relays ensure that the set control status is
maintained even if the bus is de-energised.
The device is equipped with buttons for manual control and LEDs for status indication;
a button allows switching between automatic and manual operation. The device has
an integrated KNX bus communication module and is designed for mounting on a 35
mm profile rail. Power is supplied via the KNX bus and no auxiliary power supply is
required.
Main features
• Plastic housing
• Buttons and LEDs for control and status indication of the outputs on the front panel
• Button and LED for programming or manual/automatic operation on the front panel
• Bus line connection via KNX terminal
• Connection of loads via screw terminals with cable cross-section up to 4 mm2
• Connection of different phases on adjacent outputs
• 4 modular units (1 UM = 18 mm)
• Technical data
• Power supply
• Voltage 30 Vdc via KNX bus
Technical data
Power supply
• Voltage 30 Vdc via KNX bus
Outputs
• Number: 16 (bistable relays)
• Voltage 230V AC
• Current: 16 A
Delivery
The delivery includes a terminal for connection to the bus line.
Dimensions [mm]
72
90
45
70
5
25
20
20
Dimensions [mm]
144
90
5
25
20
20
70
45
EK-FI1-TP
Universal actuator 16OUT
230V AC / 16A
9
10
11
12
13
14
15
16
E
F
G
H
1
2
3
4
5
6
7
8
A
B
C
D
