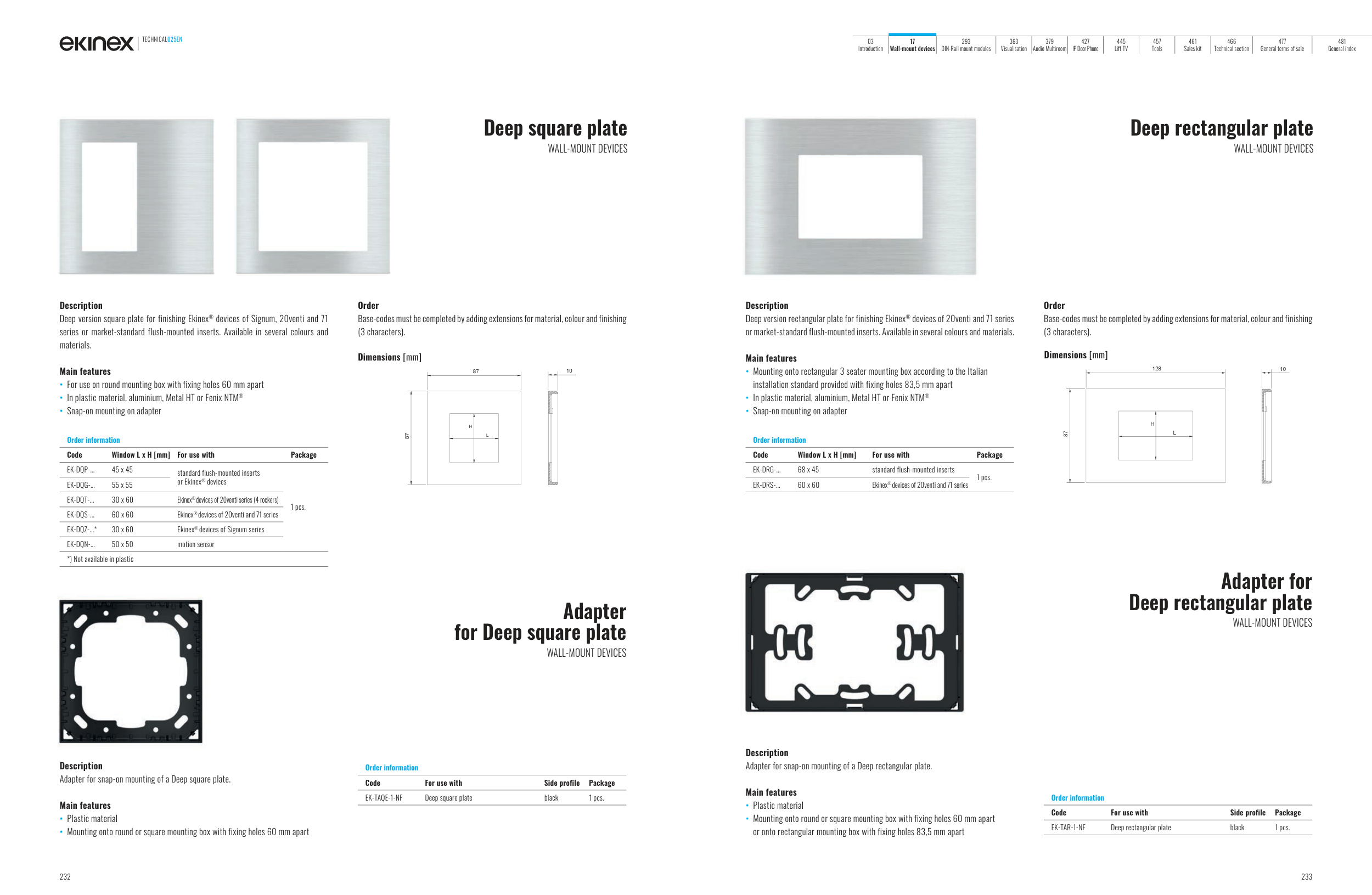

Description
Deep version square plate for finishing Ekinex® devices of Signum, 20venti and 71
series or market-standard flush-mounted inserts. Available in several colours and
materials.
Main features
• For use on round mounting box with fixing holes 60 mm apart
• In plastic material, aluminium, Metal HT or Fenix NTM®
• Snap-on mounting on adapter
Order
Base-codes must be completed by adding extensions for material, colour and finishing
(3 characters).
Deep square plate
WALL-MOUNT DEVICES
Dimensions [mm]
��
87
87
H
L
Order information
Code
Window L x H [mm]
For use with
Package
EK-DQP-...
45 x 45
standard flush-mounted inserts
or Ekinex® devices
1 pcs.
EK-DQG-...
55 x 55
EK-DQT-...
30 x 60
Ekinex® devices of 20venti series (4 rockers)
EK-DQS-...
60 x 60
Ekinex® devices of 20venti and 71 series
EK-DQZ-...*
30 x 60
Ekinex® devices of Signum series
EK-DQN-...
50 x 50
motion sensor
*) Not available in plastic
Adapter
for Deep square plate
WALL-MOUNT DEVICES
Description
Adapter for snap-on mounting of a Deep square plate.
Main features
• Plastic material
• Mounting onto round or square mounting box with fixing holes 60 mm apart
Order information
Code
For use with
Side profile
Package
EK-TAQE-1-NF
Deep square plate
black
1 pcs.
Deep rectangular plate
WALL-MOUNT DEVICES
Order information
Code
Window L x H [mm]
For use with
Package
EK-DRG-...
68 x 45
standard flush-mounted inserts
1 pcs.
EK-DRS-...
60 x 60
Ekinex® devices of 20venti and 71 series
Description
Deep version rectangular plate for finishing Ekinex® devices of 20venti and 71 series
or market-standard flush-mounted inserts. Available in several colours and materials.
Main features
• Mounting onto rectangular 3 seater mounting box according to the Italian
installation standard provided with fixing holes 83,5 mm apart
• In plastic material, aluminium, Metal HT or Fenix NTM®
• Snap-on mounting on adapter
Order
Base-codes must be completed by adding extensions for material, colour and finishing
(3 characters).
Dimensions [mm]
��
128
87
H
L
Adapter for
Deep rectangular plate
WALL-MOUNT DEVICES
Description
Adapter for snap-on mounting of a Deep rectangular plate.
Main features
• Plastic material
• Mounting onto round or square mounting box with fixing holes 60 mm apart
or onto rectangular mounting box with fixing holes 83,5 mm apart
Order information
Code
For use with
Side profile
Package
EK-TAR-1-NF
Deep rectangular plate
black
1 pcs.
