Description
Double magnetic plate for completing Ekinex Proxima series devices (2-rockers
pushbuttons + components and modules for residential use). Available in numerous
colours and materials.
Main features
• Mounting on flush-mounted boxes with a device centre distance of 71 mm
• Made of metal alloy with a metal or Metal HT finish
• Magnetic mounting on adapter
Order
The code must be completed with extensions relating to material, colour and finish
(3 characters).
Description
Double magnetic plate for completing Ekinex Proxima series devices (4-rockers
pushbuttons + components and modules for residential use). Available in numerous
colours and materials.
Main features
• Mounting on flush-mounted boxes with a device centre distance of 71 mm
• Made of metal alloy with a metal or Metal HT finish
• Magnetic mounting on adapter
Order
The code must be completed with extensions relating to material, colour and finish
(3 characters).

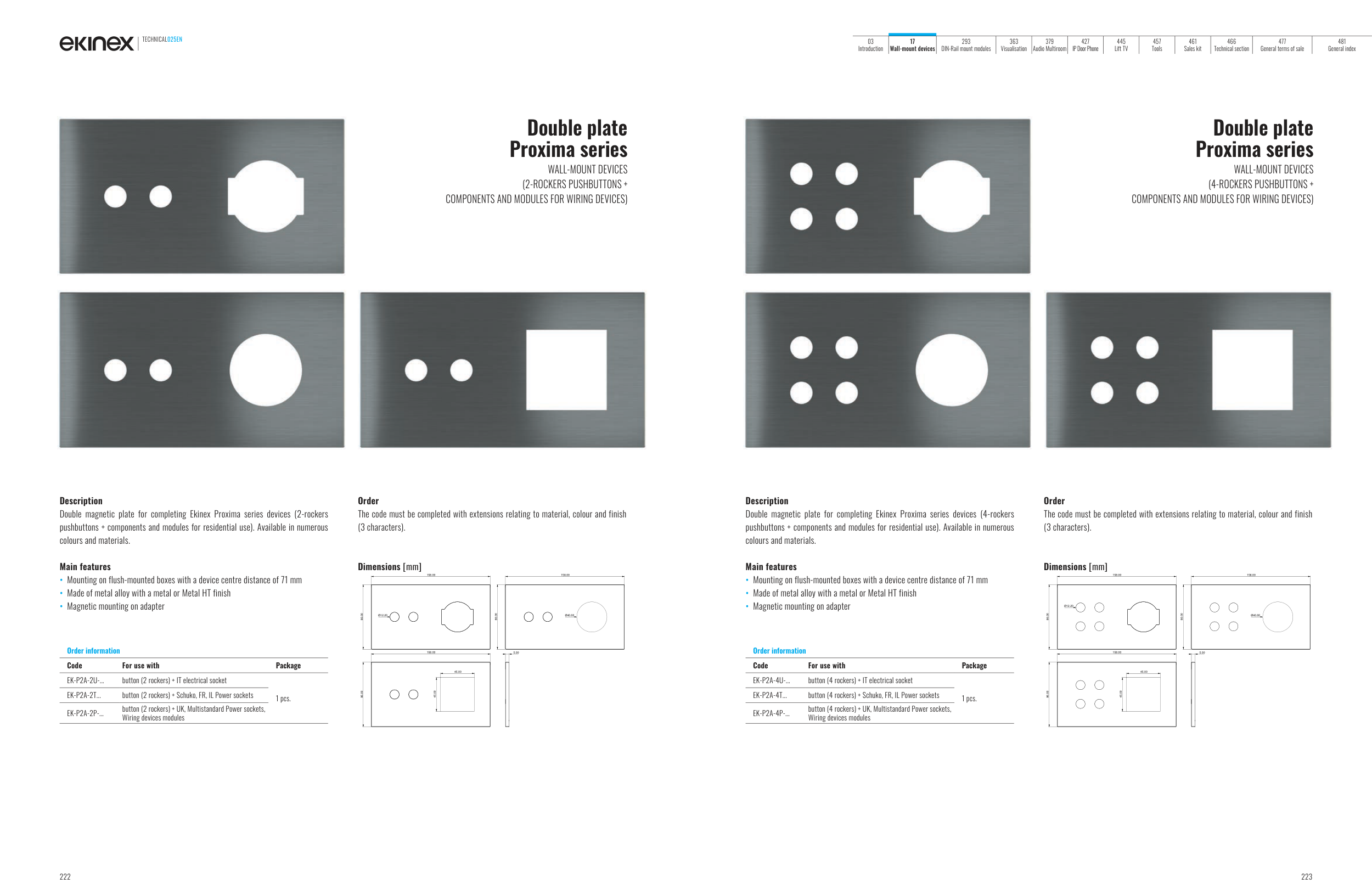

Double plate
Proxima series
WALL-MOUNT DEVICES
(2-ROCKERS PUSHBUTTONS +
COMPONENTS AND MODULES FOR WIRING DEVICES)
Double plate
Proxima series
WALL-MOUNT DEVICES
(4-ROCKERS PUSHBUTTONS +
COMPONENTS AND MODULES FOR WIRING DEVICES)
Dimensions [mm]
5.00
86.00
Ø12.20
158.00
86.00
158.00
86.00
158.00
Ø40.00
45.00
45.00
Dimensions [mm]
5.00
86.00
Ø12.20
158.00
86.00
158.00
86.00
158.00
Ø40.00
45.00
45.00
Order information
Code
For use with
Package
EK-P2A-2U-...
button (2 rockers) + IT electrical socket
1 pcs.
EK-P2A-2T...
button (2 rockers) + Schuko, FR, IL Power sockets
EK-P2A-2P-...
button (2 rockers) + UK, Multistandard Power sockets,
Wiring devices modules
Order information
Code
For use with
Package
EK-P2A-4U-...
button (4 rockers) + IT electrical socket
1 pcs.
EK-P2A-4T...
button (4 rockers) + Schuko, FR, IL Power sockets
EK-P2A-4P-...
button (4 rockers) + UK, Multistandard Power sockets,
Wiring devices modules
