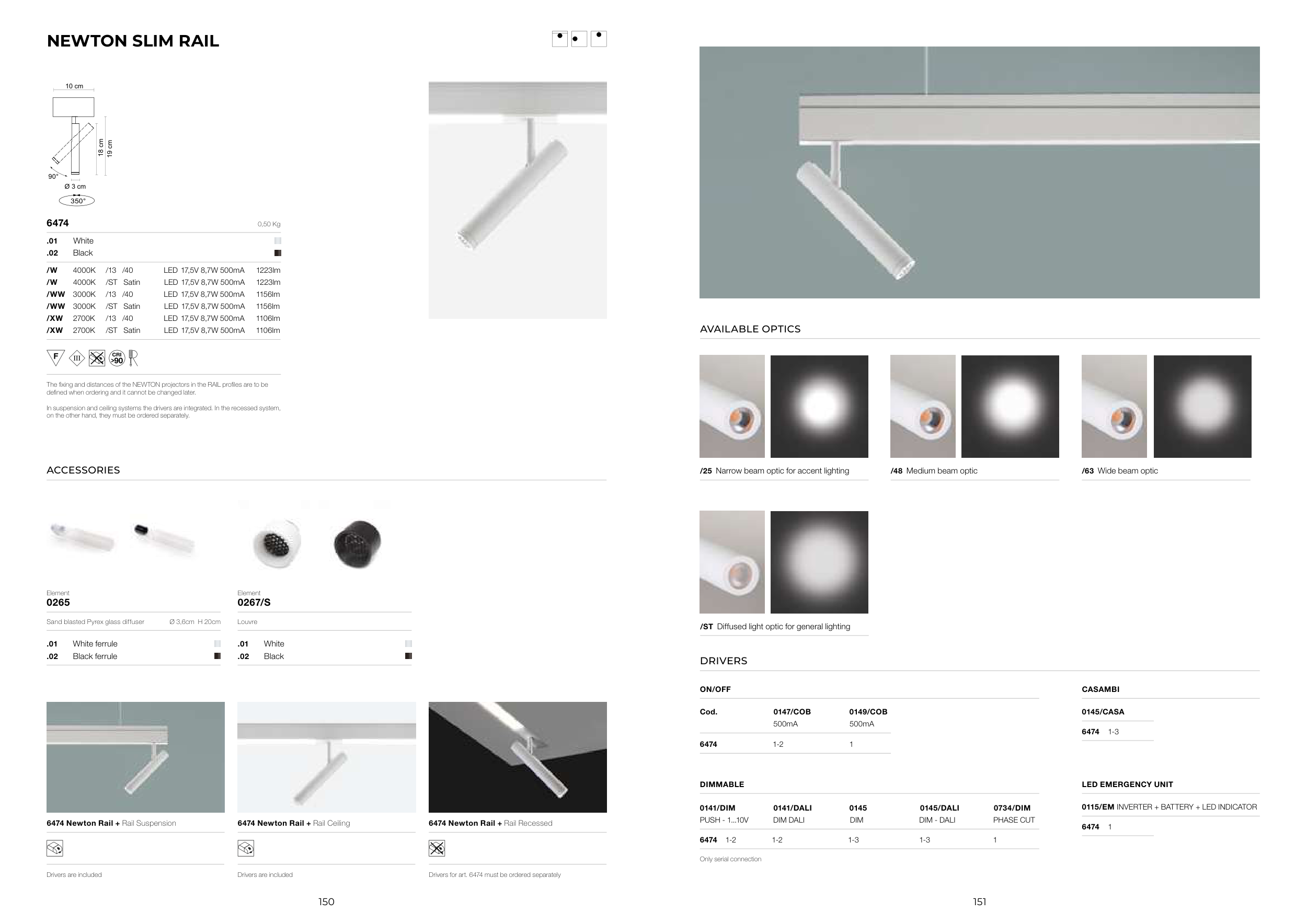

NEWTON SLIM RAIL
6474
0,50 Kg
.01 White
.02
Black
The fixing and distances of the NEWTON projectors in the RAIL profiles are to be
defined when ordering and it cannot be changed later.
In suspension and ceiling systems the drivers are integrated. In the recessed system,
on the other hand, they must be ordered separately.
6474 Newton Rail + Rail Suspension
6474 Newton Rail + Rail Ceiling
6474 Newton Rail + Rail Recessed
Drivers are included
Drivers are included
Drivers for art. 6474 must be ordered separately
Only serial connection
Cod. 0147/COB 0149/COB
500mA 500mA
0145/CASA
0115/EM INVERTER + BATTERY + LED INDICATOR
ON/OFF
DIMMABLE
CASAMBI
LED EMERGENCY UNIT
6474 1-3
6474 1
DRIVERS
6474
1-2 1
0141/DIM
0141/DALI 0145 0145/DALI 0734/DIM
PUSH - 1...10V DIM DALI DIM DIM - DALI PHASE CUT
6474 1-2 1-2 1-3 1-3 1
10 cm
18 cm
Ø 3 cm
90°
350°
19 cm
Sand blasted Pyrex glass diffuser Ø 3,6cm H 20cm
Louvre
ACCESSORIES
Element
Element
0265
0267/S
.01
White ferrule
.02
Black ferrule
.01
White
.02
Black
AVAILABLE OPTICS
/25 Narrow beam optic for accent lighting
/48 Medium beam optic
/63 Wide beam optic
/ST Diffused light optic for general lighting
/W
4000K /13 /40 LED 17,5V 8,7W 500mA 1223lm
/W 4000K /ST Satin LED 17,5V 8,7W 500mA 1223lm
/WW 3000K
/13 /40 LED 17,5V 8,7W 500mA 1156lm
/WW 3000K
/ST Satin LED 17,5V 8,7W 500mA 1156lm
/XW
2700K
/13 /40 LED 17,5V 8,7W 500mA 1106lm
/XW
2700K
/ST Satin LED 17,5V 8,7W 500mA 1106lm
