148
149

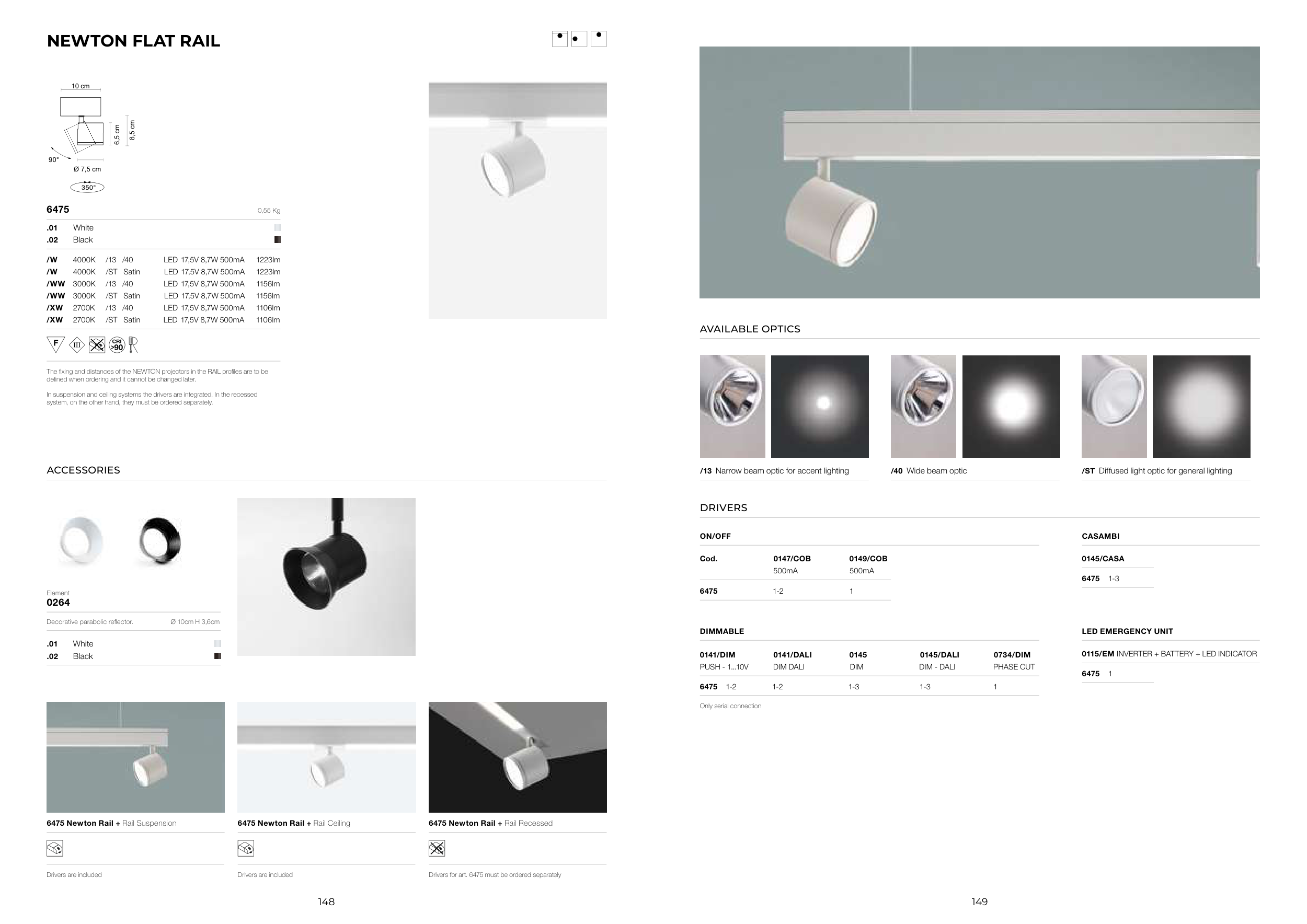

NEWTON FLAT RAIL
6475
0,55 Kg
.01 White
.02
Black
/W
4000K /13 /40 LED 17,5V 8,7W 500mA 1223lm
/W 4000K /ST Satin LED 17,5V 8,7W 500mA 1223lm
/WW 3000K
/13 /40 LED 17,5V 8,7W 500mA 1156lm
/WW 3000K
/ST Satin LED 17,5V 8,7W 500mA 1156lm
/XW
2700K
/13 /40 LED 17,5V 8,7W 500mA 1106lm
/XW
2700K
/ST Satin LED 17,5V 8,7W 500mA 1106lm
The fixing and distances of the NEWTON projectors in the RAIL profiles are to be
defined when ordering and it cannot be changed later.
In suspension and ceiling systems the drivers are integrated. In the recessed
system, on the other hand, they must be ordered separately.
6475 Newton Rail + Rail Suspension
6475 Newton Rail + Rail Ceiling
6475 Newton Rail + Rail Recessed
Drivers are included
Drivers are included
Drivers for art. 6475 must be ordered separately
Only serial connection
Cod. 0147/COB 0149/COB
500mA 500mA
0145/CASA
0115/EM INVERTER + BATTERY + LED INDICATOR
ON/OFF
DIMMABLE
CASAMBI
LED EMERGENCY UNIT
6475 1-3
6475 1
DRIVERS
6475
1-2 1
0141/DIM
0141/DALI 0145 0145/DALI 0734/DIM
PUSH - 1...10V DIM DALI DIM DIM - DALI PHASE CUT
6475 1-2 1-2 1-3 1-3 1
8,5 cm
10 cm
6,5 cm
Ø 7,5 cm
90°
350°
10 cm
18 cm
Ø 3 cm
90°
350°
19 cm
Decorative parabolic reflector. Ø 10cm H 3,6cm
ACCESSORIES
Element
0264
.01
White
.02
Black
AVAILABLE OPTICS
/13 Narrow beam optic for accent lighting
/ST Diffused light optic for general lighting
/40 Wide beam optic
