DATA SHEETS

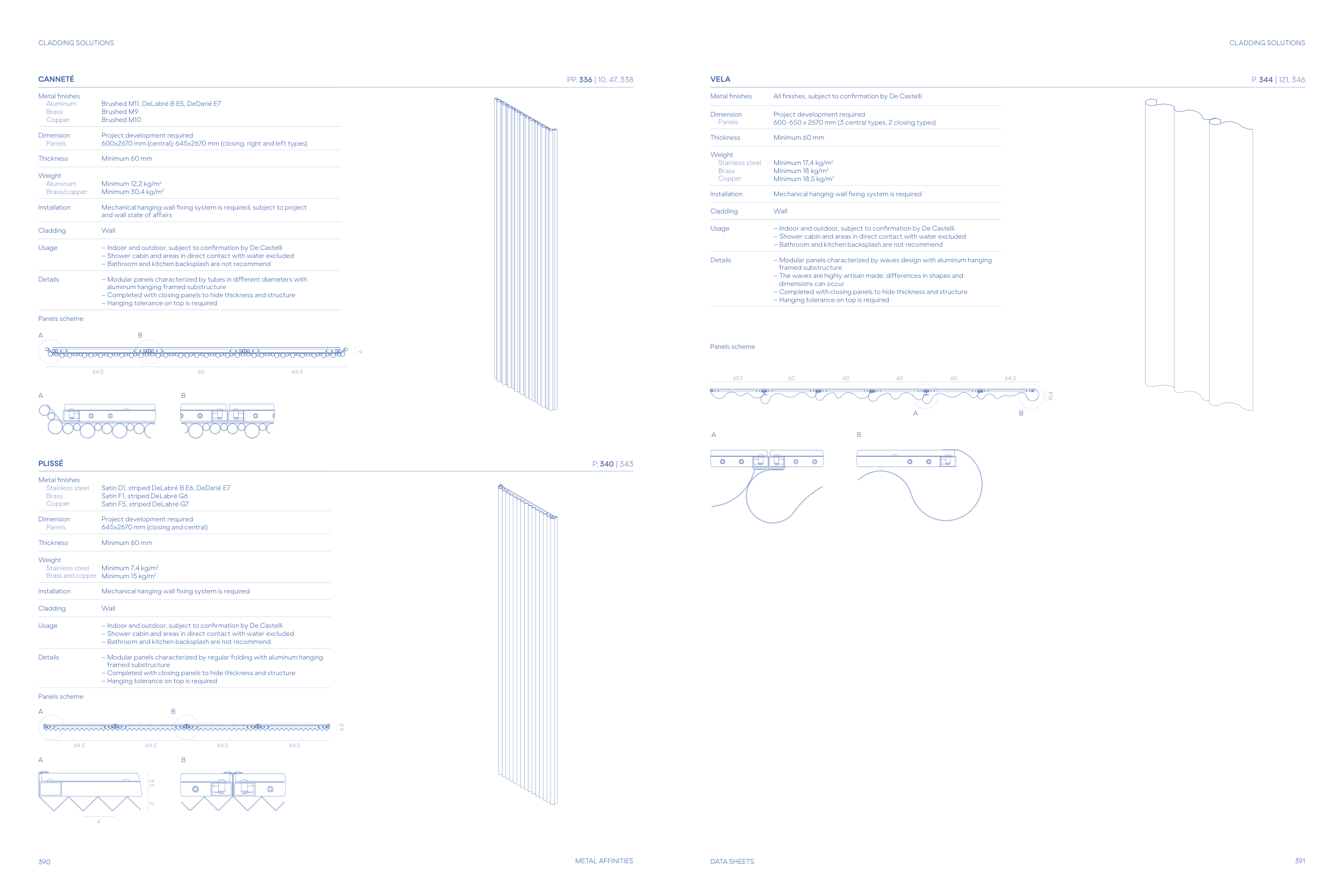

CLADDING SOLUTIONS
CLADDING SOLUTIONS
VELA
Metal finishes
All finishes, subject to confirmation by De Castelli
Dimension
Panels
Project development required
600-650 x 2670 mm (3 central types, 2 closing types)
Thickness
Minimum 60 mm
Weight
Stainless steel
Brass
Copper
Minimum 17,4 kg/m2
Minimum 18 kg/m2
Minimum 18,5 kg/m2
Installation
Mechanical hanging wall fixing system is required
Cladding
Wall
Usage
– Indoor and outdoor, subject to confirmation by De Castelli
– Shower cabin and areas in direct contact with water excluded
– Bathroom and kitchen backsplash are not recommend
Details
– Modular panels characterized by waves design with aluminum hanging
framed substructure
– The waves are highly artisan made, differences in shapes and
dimensions can occur
– Completed with closing panels to hide thickness and structure
– Hanging tolerance on top is required
P. 344 | 121, 346
P. 340 | 343
PP. 336 | 10, 47, 338
A
A
A
A
A
B
B
B
B
B
6
19,4
5,5
64,5
60
64,5
64,5
60
60
60
60
60,1
64,5
4
2
3,5
CANNETÉ
Metal finishes
Aluminum
Brass
Copper
Brushed M11, DeLabré B E5, DeDarié E7
Brushed M9
Brushed M10
Dimension
Panels
Project development required
600x2670 mm (central); 645x2670 mm (closing, right and left types)
Thickness
Minimum 60 mm
Weight
Aluminum
Brass/copper
Minimum 12,2 kg/m2
Minimum 30,4 kg/m2
Installation
Mechanical hanging wall fixing system is required, subject to project
and wall state of affairs
Cladding
Wall
Usage
– Indoor and outdoor, subject to confirmation by De Castelli
– Shower cabin and areas in direct contact with water excluded
– Bathroom and kitchen backsplash are not recommend
Details
– Modular panels characterized by tubes in different diameters with
aluminum hanging framed substructure
– Completed with closing panels to hide thickness and structure
– Hanging tolerance on top is required
PLISSÉ
Metal finishes
Stainless steel
Brass
Copper
Satin D1, striped DeLabré B E6, DeDarié E7
Satin F1, striped DeLabré G6
Satin F5, striped DeLabré G7
Dimension
Panels
Project development required
645x2670 mm (closing and central)
Thickness
Minimum 60 mm
Weight
Stainless steel
Brass and copper
Minimum 7,4 kg/m2
Minimum 15 kg/m2
Installation
Mechanical hanging wall fixing system is required
Cladding
Wall
Usage
– Indoor and outdoor, subject to confirmation by De Castelli
– Shower cabin and areas in direct contact with water excluded
– Bathroom and kitchen backsplash are not recommend
Details
– Modular panels characterized by regular folding with aluminum hanging
framed substructure
– Completed with closing panels to hide thickness and structure
– Hanging tolerance on top is required
Panels scheme
Panels scheme
Panels scheme
B
A
64,5
64,5
64,5
