ULTERIORI COMPOSIZIONI A RICHIESTA (VEDI DA PAGINA 300 A PAGINA 309)
ADDITIONAL COMPOSITIONS ON DEMAND (SEE PAGES 300 TO 309)
Weitere Compositionen auf Anfrage (Seiten 300 bis 309)

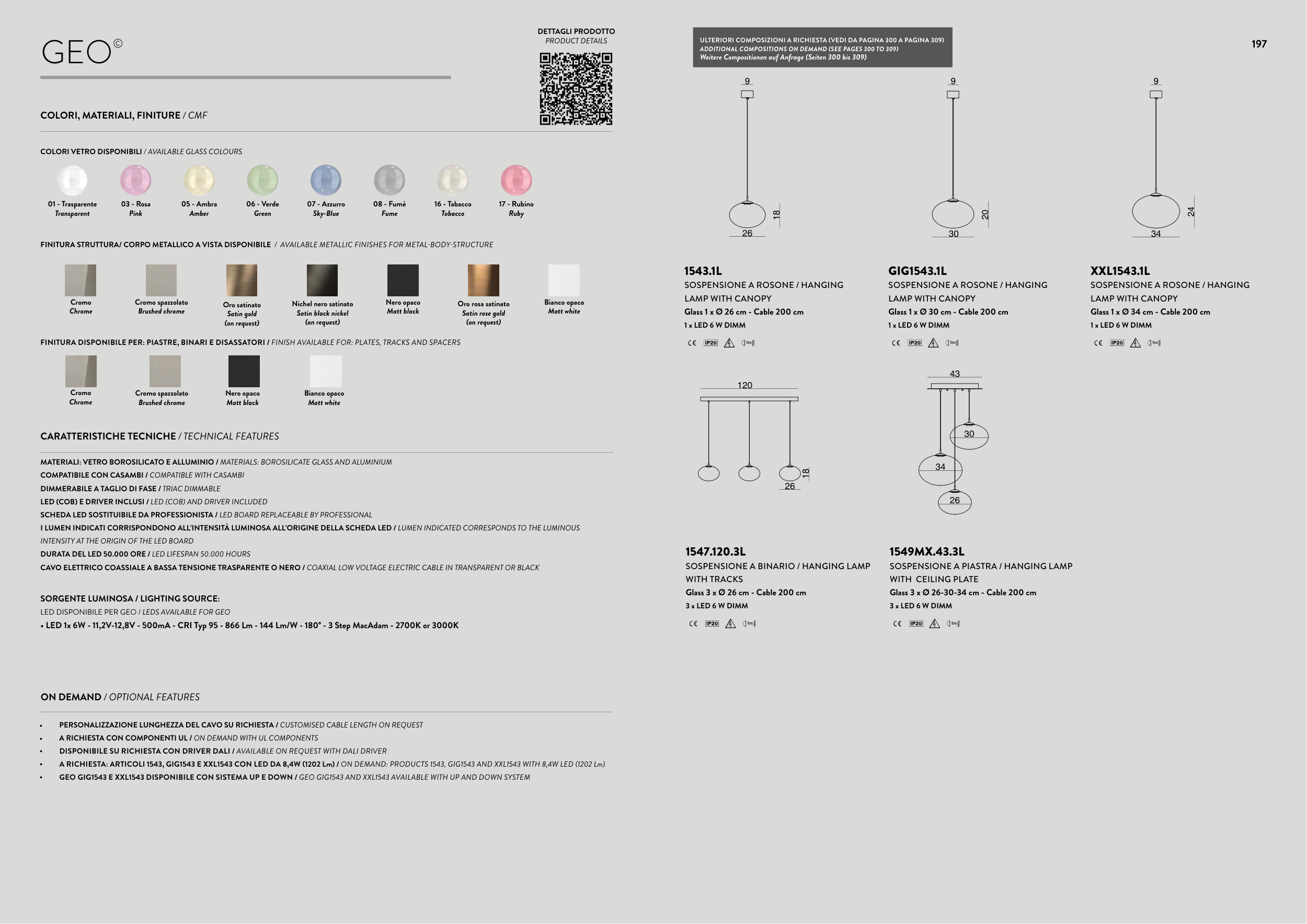

GEO
©
COLORI, MATERIALI, FINITURE / CMF
COLORI VETRO DISPONIBILI / AVAILABLE GLASS COLOURS
01 - Trasparente
Transparent
03 - Rosa
Pink
05 - Ambra
Amber
06 - Verde
Green
07 - Azzurro
Sky-Blue
08 - Fumè
Fume
16 - Tabacco
Tobacco
17 - Rubino
Ruby
FINITURA STRUTTURA/ CORPO METALLICO A VISTA DISPONIBILE / AVAILABLE METALLIC FINISHES FOR METAL-BODY-STRUCTURE
Cromo
Chrome
Cromo spazzolato
Brushed chrome
Oro satinato
Satin gold
(on request)
Nichel nero satinato
Satin black nickel
(on request)
Nero opaco
Matt black
Oro rosa satinato
Satin rose gold
(on request)
Bianco opaco
Matt white
CARATTERISTICHE TECNICHE / TECHNICAL FEATURES
MATERIALI: VETRO BOROSILICATO E ALLUMINIO / MATERIALS: BOROSILICATE GLASS AND ALUMINIUM
COMPATIBILE CON CASAMBI / COMPATIBLE WITH CASAMBI
DIMMERABILE A TAGLIO DI FASE / TRIAC DIMMABLE
LED (COB) E DRIVER INCLUSI / LED (COB) AND DRIVER INCLUDED
SCHEDA LED SOSTITUIBILE DA PROFESSIONISTA / LED BOARD REPLACEABLE BY PROFESSIONAL
I LUMEN INDICATI CORRISPONDONO ALL’INTENSITÀ LUMINOSA ALL’ORIGINE DELLA SCHEDA LED / LUMEN INDICATED CORRESPONDS TO THE LUMINOUS
INTENSITY AT THE ORIGIN OF THE LED BOARD
DURATA DEL LED 50.000 ORE / LED LIFESPAN 50.000 HOURS
CAVO ELETTRICO COASSIALE A BASSA TENSIONE TRASPARENTE O NERO / COAXIAL LOW VOLTAGE ELECTRIC CABLE IN TRANSPARENT OR BLACK
SORGENTE LUMINOSA / LIGHTING SOURCE:
LED DISPONIBILE PER GEO / LEDS AVAILABLE FOR GEO
• LED 1x 6W - 11,2V-12,8V - 500mA - CRI Typ 95 - 866 Lm - 144 Lm/W - 180° - 3 Step MacAdam - 2700K or 3000K
1543.1L
SOSPENSIONE A ROSONE / HANGING
LAMP WITH CANOPY
Glass 1 x Ø 26 cm - Cable 200 cm
1 x LED 6 W DIMM
9
18
26
GIG1543.1L
SOSPENSIONE A ROSONE / HANGING
LAMP WITH CANOPY
Glass 1 x Ø 30 cm - Cable 200 cm
1 x LED 6 W DIMM
9
20
30
XXL1543.1L
SOSPENSIONE A ROSONE / HANGING
LAMP WITH CANOPY
Glass 1 x Ø 34 cm - Cable 200 cm
1 x LED 6 W DIMM
24
34
9
1547.120.3L
SOSPENSIONE A BINARIO / HANGING LAMP
WITH TRACKS
Glass 3 x Ø 26 cm - Cable 200 cm
3 x LED 6 W DIMM
18
26
120
1549MX.43.3L
SOSPENSIONE A PIASTRA / HANGING LAMP
WITH CEILING PLATE
Glass 3 x Ø 26-30-34 cm - Cable 200 cm
3 x LED 6 W DIMM
26
34
30
43
Cromo
Chrome
Cromo spazzolato
Brushed chrome
Nero opaco
Matt black
Bianco opaco
Matt white
FINITURA DISPONIBILE PER: PIASTRE, BINARI E DISASSATORI / FINISH AVAILABLE FOR: PLATES, TRACKS AND SPACERS
•
PERSONALIZZAZIONE LUNGHEZZA DEL CAVO SU RICHIESTA / CUSTOMISED CABLE LENGTH ON REQUEST
•
A RICHIESTA CON COMPONENTI UL / ON DEMAND WITH UL COMPONENTS
•
DISPONIBILE SU RICHIESTA CON DRIVER DALI / AVAILABLE ON REQUEST WITH DALI DRIVER
•
A RICHIESTA: ARTICOLI 1543, GIG1543 E XXL1543 CON LED DA 8,4W (1202 Lm) / ON DEMAND: PRODUCTS 1543, GIG1543 AND XXL1543 WITH 8,4W LED (1202 Lm)
•
GEO GIG1543 E XXL1543 DISPONIBILE CON SISTEMA UP E DOWN / GEO GIG1543 AND XXL1543 AVAILABLE WITH UP AND DOWN SYSTEM
ON DEMAND / OPTIONAL FEATURES
DETTAGLI PRODOTTO
PRODUCT DETAILS
197
