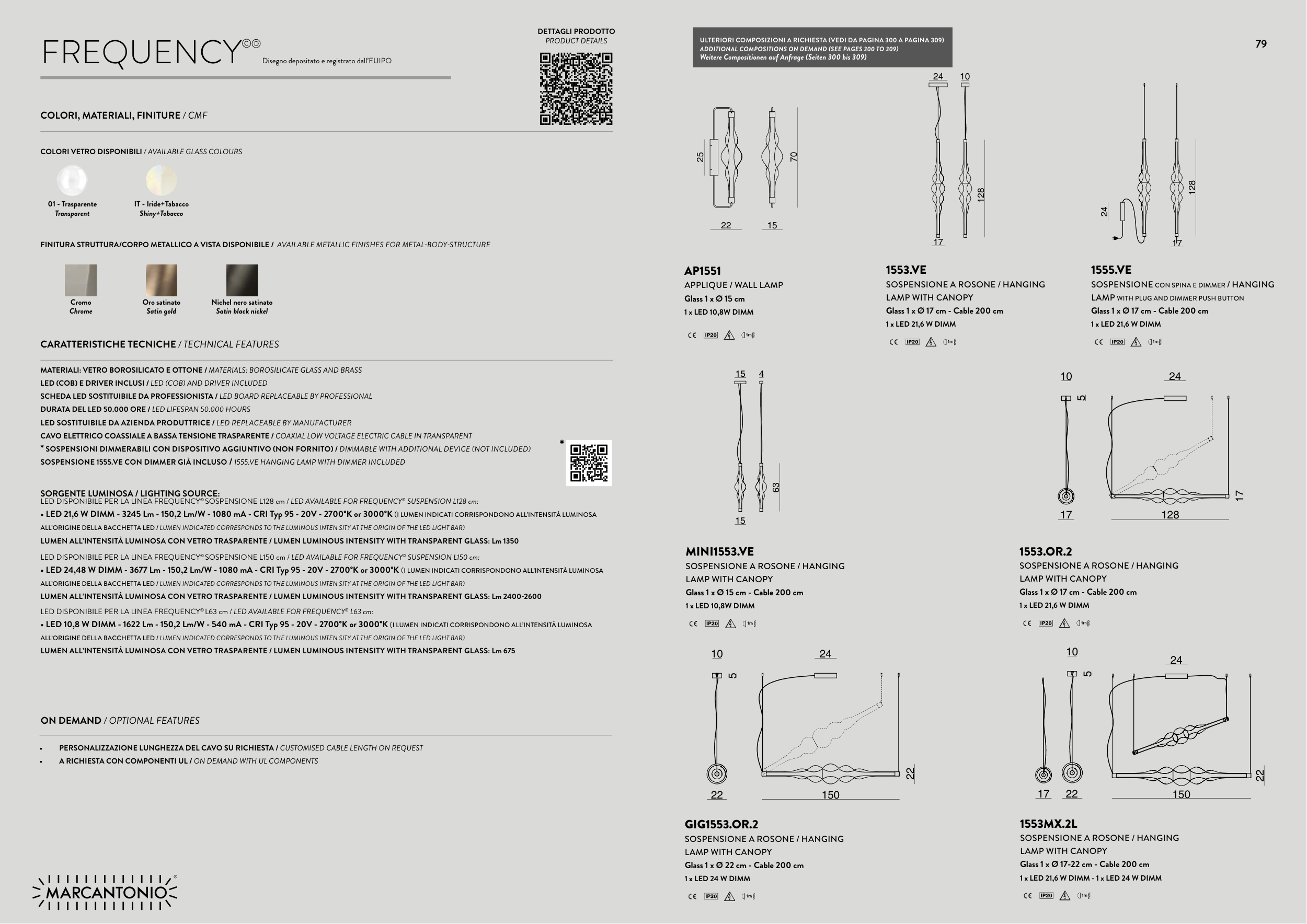

FREQUENCY
©
Disegno depositato e registrato dall’EUIPO
COLORI, MATERIALI, FINITURE / CMF
COLORI VETRO DISPONIBILI / AVAILABLE GLASS COLOURS
01 - Trasparente
Transparent
IT - Iride+Tabacco
Shiny+Tobacco
FINITURA STRUTTURA/CORPO METALLICO A VISTA DISPONIBILE / AVAILABLE METALLIC FINISHES FOR METAL-BODY-STRUCTURE
Cromo
Chrome
Oro satinato
Satin gold
Nichel nero satinato
Satin black nickel
CARATTERISTICHE TECNICHE / TECHNICAL FEATURES
MATERIALI: VETRO BOROSILICATO E OTTONE / MATERIALS: BOROSILICATE GLASS AND BRASS
LED (COB) E DRIVER INCLUSI / LED (COB) AND DRIVER INCLUDED
SCHEDA LED SOSTITUIBILE DA PROFESSIONISTA / LED BOARD REPLACEABLE BY PROFESSIONAL
DURATA DEL LED 50.000 ORE / LED LIFESPAN 50.000 HOURS
LED SOSTITUIBILE DA AZIENDA PRODUTTRICE / LED REPLACEABLE BY MANUFACTURER
CAVO ELETTRICO COASSIALE A BASSA TENSIONE TRASPARENTE / COAXIAL LOW VOLTAGE ELECTRIC CABLE IN TRANSPARENT
* SOSPENSIONI DIMMERABILI CON DISPOSITIVO AGGIUNTIVO (NON FORNITO) / DIMMABLE WITH ADDITIONAL DEVICE (NOT INCLUDED)
SOSPENSIONE 1555.VE CON DIMMER GIÀ INCLUSO / 1555.VE HANGING LAMP WITH DIMMER INCLUDED
SORGENTE LUMINOSA / LIGHTING SOURCE:
LED DISPONIBILE PER LA LINEA FREQUENCY© SOSPENSIONE L128 cm / LED AVAILABLE FOR FREQUENCY© SUSPENSION L128 cm:
• LED 21,6 W DIMM - 3245 Lm - 150,2 Lm/W - 1080 mA - CRI Typ 95 - 20V - 2700°K or 3000°K (I LUMEN INDICATI CORRISPONDONO ALL’INTENSITÀ LUMINOSA
ALL’ORIGINE DELLA BACCHETTA LED / LUMEN INDICATED CORRESPONDS TO THE LUMINOUS INTEN SITY AT THE ORIGIN OF THE LED LIGHT BAR)
LUMEN ALL’INTENSITÀ LUMINOSA CON VETRO TRASPARENTE / LUMEN LUMINOUS INTENSITY WITH TRANSPARENT GLASS: Lm 1350
LED DISPONIBILE PER LA LINEA FREQUENCY© SOSPENSIONE L150 cm / LED AVAILABLE FOR FREQUENCY© SUSPENSION L150 cm:
• LED 24,48 W DIMM - 3677 Lm - 150,2 Lm/W - 1080 mA - CRI Typ 95 - 20V - 2700°K or 3000°K (I LUMEN INDICATI CORRISPONDONO ALL’INTENSITÀ LUMINOSA
ALL’ORIGINE DELLA BACCHETTA LED / LUMEN INDICATED CORRESPONDS TO THE LUMINOUS INTEN SITY AT THE ORIGIN OF THE LED LIGHT BAR)
LUMEN ALL’INTENSITÀ LUMINOSA CON VETRO TRASPARENTE / LUMEN LUMINOUS INTENSITY WITH TRANSPARENT GLASS: Lm 2400-2600
LED DISPONIBILE PER LA LINEA FREQUENCY© L63 cm / LED AVAILABLE FOR FREQUENCY© L63 cm:
• LED 10,8 W DIMM - 1622 Lm - 150,2 Lm/W - 540 mA - CRI Typ 95 - 20V - 2700°K or 3000°K (I LUMEN INDICATI CORRISPONDONO ALL’INTENSITÀ LUMINOSA
ALL’ORIGINE DELLA BACCHETTA LED / LUMEN INDICATED CORRESPONDS TO THE LUMINOUS INTEN SITY AT THE ORIGIN OF THE LED LIGHT BAR)
LUMEN ALL’INTENSITÀ LUMINOSA CON VETRO TRASPARENTE / LUMEN LUMINOUS INTENSITY WITH TRANSPARENT GLASS: Lm 675
AP1551
APPLIQUE / WALL LAMP
Glass 1 x Ø 15 cm
1 x LED 10,8W DIMM
70
25
22
15
1553.OR.2
SOSPENSIONE A ROSONE / HANGING
LAMP WITH CANOPY
Glass 1 x Ø 17 cm - Cable 200 cm
1 x LED 21,6 W DIMM
17
24
10
17
128
5
GIG1553.OR.2
SOSPENSIONE A ROSONE / HANGING
LAMP WITH CANOPY
Glass 1 x Ø 22 cm - Cable 200 cm
1 x LED 24 W DIMM
5
10
150
22
24
22
MINI1553.VE
SOSPENSIONE A ROSONE / HANGING
LAMP WITH CANOPY
Glass 1 x Ø 15 cm - Cable 200 cm
1 x LED 10,8W DIMM
4
15
63
15
1553.VE
SOSPENSIONE A ROSONE / HANGING
LAMP WITH CANOPY
Glass 1 x Ø 17 cm - Cable 200 cm
1 x LED 21,6 W DIMM
10
24
128
17
1555.VE
SOSPENSIONE CON SPINA E DIMMER / HANGING
LAMP WITH PLUG AND DIMMER PUSH BUTTON
Glass 1 x Ø 17 cm - Cable 200 cm
1 x LED 21,6 W DIMM
17
128
24
1553MX.2L
SOSPENSIONE A ROSONE / HANGING
LAMP WITH CANOPY
Glass 1 x Ø 17-22 cm - Cable 200 cm
1 x LED 21,6 W DIMM - 1 x LED 24 W DIMM
24
150
22
5
10
22
17
*
•
PERSONALIZZAZIONE LUNGHEZZA DEL CAVO SU RICHIESTA / CUSTOMISED CABLE LENGTH ON REQUEST
•
A RICHIESTA CON COMPONENTI UL / ON DEMAND WITH UL COMPONENTS
ON DEMAND / OPTIONAL FEATURES
DETTAGLI PRODOTTO
PRODUCT DETAILS
ULTERIORI COMPOSIZIONI A RICHIESTA (VEDI DA PAGINA 300 A PAGINA 309)
ADDITIONAL COMPOSITIONS ON DEMAND (SEE PAGES 300 TO 309)
Weitere Compositionen auf Anfrage (Seiten 300 bis 309)
79
