TECHNICAL FEATURES
Code
T048 A XX
Type
48V supply box
Material
Steel
Finishing
White
RAL 9016
Black
RAL 9005
Fixing
By screws
Insulation class
-
Voltage
connection
-
Note
The purpose of the
supply box attached to
the surface is to house
the driver in all those
situations in which a
remote driver cannot
be used.
The tracks and their components must be installed following the installation instructions provided by the company.
CASSETTA
PER ALIMENTATORE
SUPPLY BOX
CODE COMPOSITION
T048 A 000_
finishing
58 W1
white
RAL 9016
59 B1
black
RAL 9005
example of code
composition
T048 A 00058 W1
CODE COMPOSITION
T048 A 000_
finishing
19 W1
white
RAL 9016
20 B1
black
RAL 9005
example of code
composition
T048 A 00019 W1
TECHNICAL FEATURES
Code
T048 A XX
Type
90° corner joint cover
Material
Aluminum body, steel
bracket
Finishing
White RAL
9016
Black RAL
9005
Fixing
By screws
Note
The 90° corner joint
allows the mechanical
connection of the tracks,
forming a 90° angle,
without cutting them
at 45°.
CONNESSIONE MECCANICA
PER ANGOLO 90°
90° MECHANICAL
CONNECTION
CODE COMPOSITION
T048 A 000_
finishing
82 W1
white
RAL 9016
80 B1
black
RAL 9005
example of code
composition
T048 A 00080 B1
CODE COMPOSITION
T048 A 000_
finishing
83 W1
white
RAL 9016
81 B1
black
RAL 9005
example of code
composition
T048 A 00081 B1
GIUNTO MECCANICO A “T”
MECHANICAL T-JOINT
GIUNTO MECCANICO A “X”
MECHANICAL X-JOINT
TECHNICAL FEATURES
Code
T048 A XX
Type
Surface/suspended joint
Material
Polyamide body
and steel bracket
Finishing
White
RAL 9016
Black
RAL 9005
Fixing
By screws (not included)
Note
The “T” joint allows the
mechanical connection
of three B55 tracks
forming a “T” cross.
It’s necessary to be
associated to
T048 A 00084 B1 or
T048 A 00085 W2
code to allow electrical
and signal continuity.
TECHNICAL FEATURES
Code
T048 A XX
Type
Surface/suspended joint
Material
Polyamide body
and steel bracket
Finishing
White
RAL 9016
Black
RAL 9005
Fixing
By screws (not included)
Note
The “X” joint allows the
mechanical connection
of three B55 tracks
forming a “X” cross.
It’s necessary to be
associated to
T048 A 00086 B1 or
T048 A 00087 W2
code to allow electrical
and signal continuity.
CODE COMPOSITION
T048 A 000_
finishing
11 W1
white
RAL 9016
12 B1
black
RAL 9005
example of code
composition
T048 A 00011 W1
TAPPO DI CHIUSURA
CLOSURE PLUG
TECHNICAL FEATURES
Code
T048 A XX
Type
Closure plug
Material
Polycarbonate
Finishing
White
RAL 9016
Black
RAL 9005
Fixing
By screws (included)
Note
-
CODE COMPOSITION
T048 A 000_
finishing
15 W1
white
RAL 9016
16 B1
black
RAL 9005
example of code
composition
T048 A 00015 W1
TAPPO DI CHIUSURA
FORATO
HOLED CLOSURE PLUG
TECHNICAL FEATURES
Code
T048 A XX
Type
Closure plug with hole for
cable passage
Material
Polycarbonate
Finishing
White
RAL 9016
Black
RAL 9005
Fixing
By screws (included)
Note
-
CODE COMPOSITION
T048 A 000_
length and finishing
74 W1
3000 mm
white RAL 9016
56 B1
1000 mm
black RAL 9005
57 B1
2000 mm
black RAL 9005
18 B1
3000 mm
black RAL 9005
example of code
composition
T048 A 00018 B1
TECHNICAL FEATURES
Code
T048 A XX
Type
Aesthetic closing cover
Material
PMMA
Finishing
White
RAL 9016
Black
RAL 9005
Fixing
-
Note
Cover installable at
the bottom between
the various spotlights,
to hide the inside of
the track and to allow
aesthetic continuity.
COVER DI CHIUSURA
CLOSING COVER
TECHNICAL FEATURES
Code
T048 A XX
Type
Constant voltage driver
Material
-
Finishing
-
Fixing
-
Insulation class
-
Voltage
connection
220-240V
50/60Hz · 48 VDC
Max wattage
75W | 150W | 240W
Note
-
ALIMENTATORE
POWER SUPPLY
CODE COMPOSITION
T048 A 000_00
max wattage
96
75W
97
150W
60
240W
example of code
composition
T048 A 00096 00
94 |
www.buzzi-buzzi.it | 95
Indoor 48V Tracks
B55
94 |
www.buzzi-buzzi.it | 95
Indoor 48V Tracks
B55

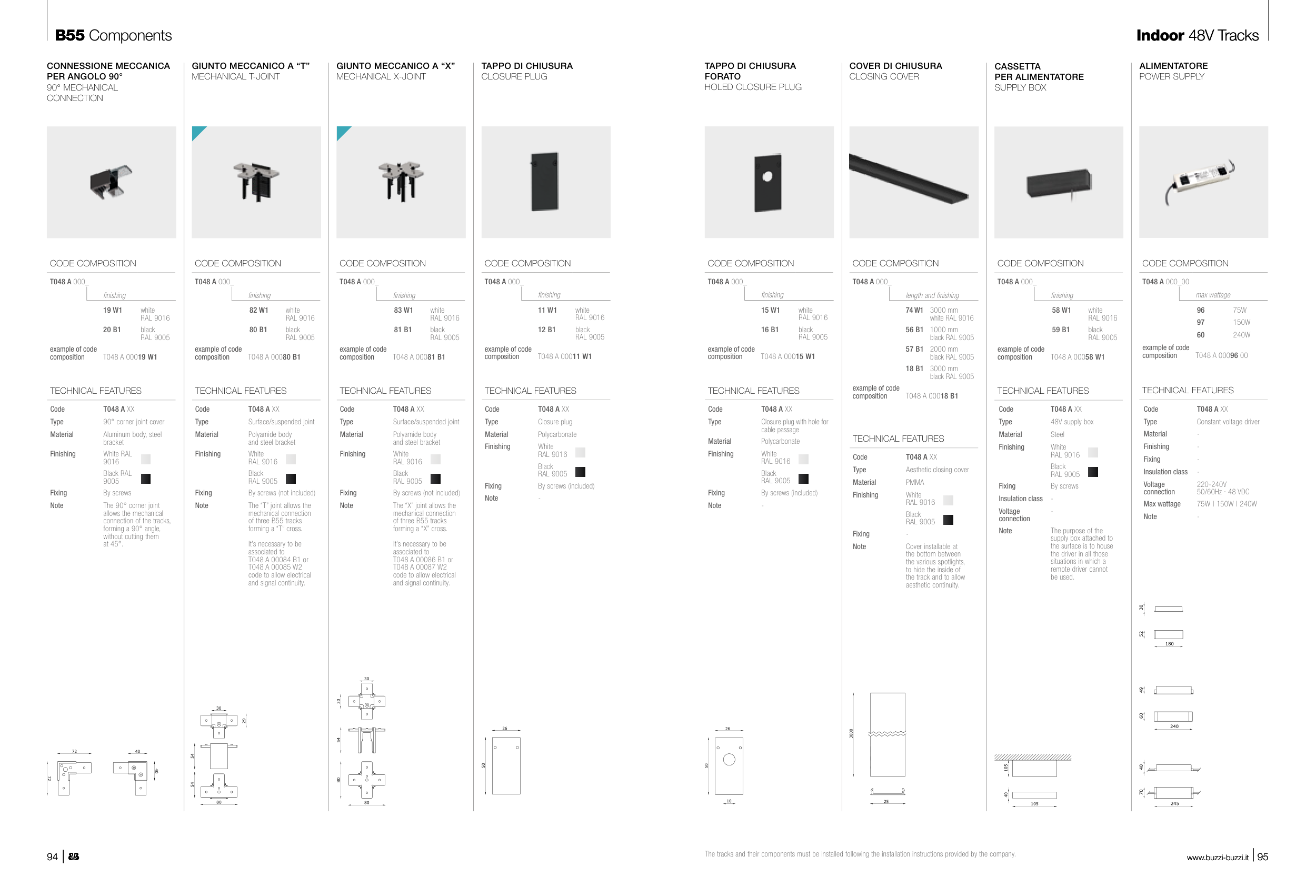

B55 Components
