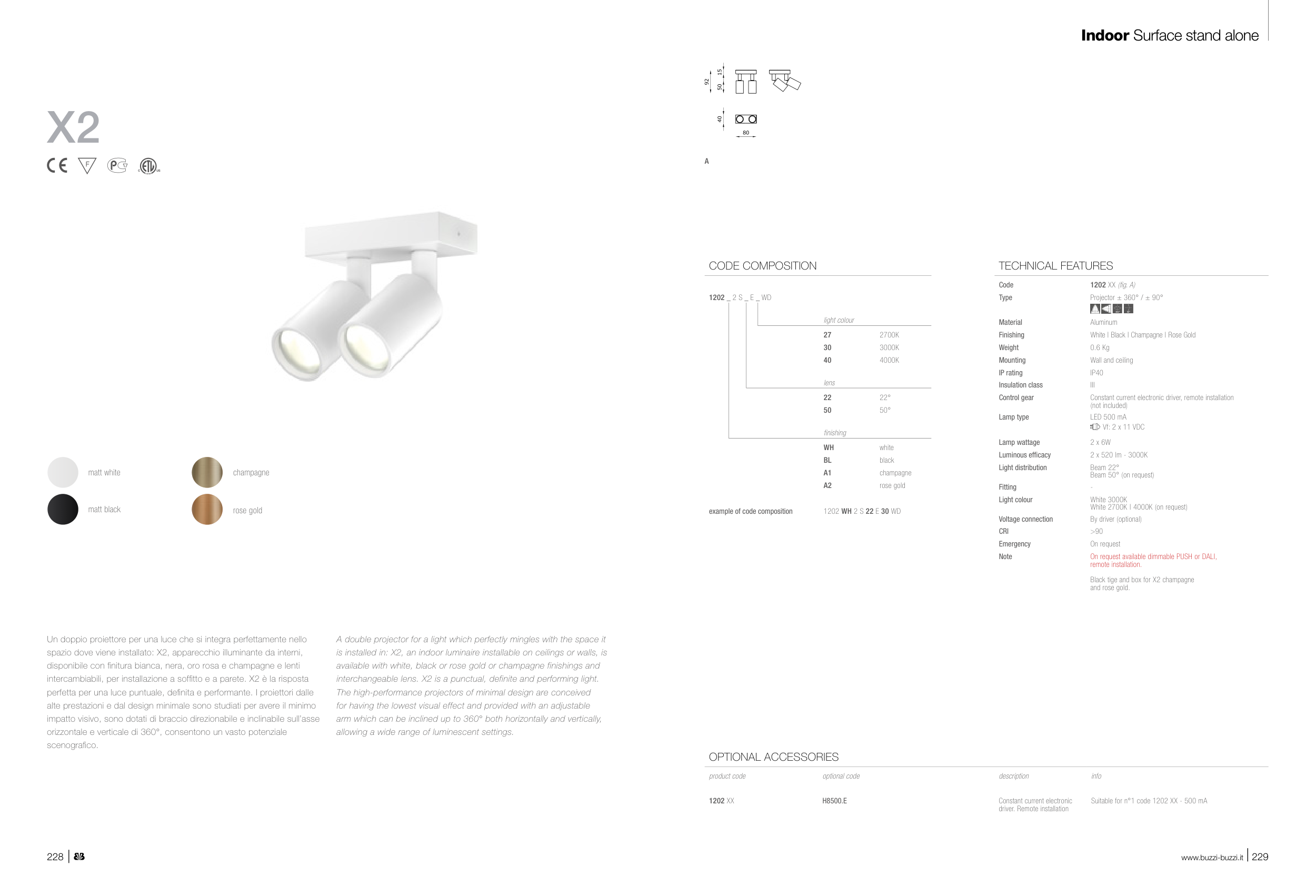

X2
Un doppio proiettore per una luce che si integra perfettamente nello
spazio dove viene installato: X2, apparecchio illuminante da interni,
disponibile con finitura bianca, nera, oro rosa e champagne e lenti
intercambiabili, per installazione a soffitto e a parete. X2 è la risposta
perfetta per una luce puntuale, definita e performante. I proiettori dalle
alte prestazioni e dal design minimale sono studiati per avere il minimo
impatto visivo, sono dotati di braccio direzionabile e inclinabile sull’asse
orizzontale e verticale di 360°, consentono un vasto potenziale
scenografico.
A double projector for a light which perfectly mingles with the space it
is installed in: X2, an indoor luminaire installable on ceilings or walls, is
available with white, black or rose gold or champagne finishings and
interchangeable lens. X2 is a punctual, definite and performing light.
The high-performance projectors of minimal design are conceived
for having the lowest visual effect and provided with an adjustable
arm which can be inclined up to 360° both horizontally and vertically,
allowing a wide range of luminescent settings.
TECHNICAL FEATURES
Code
1202 XX (fig. A)
Type
Projector ± 360° / ± 90°
Material
Aluminum
Finishing
White | Black | Champagne | Rose Gold
Weight
0.6 Kg
Mounting
Wall and ceiling
IP rating
IP40
Insulation class
III
Control gear
Constant current electronic driver, remote installation
(not included)
Lamp type
LED 500 mA
Vf: 2 x 11 VDC
Lamp wattage
2 x 6W
Luminous efficacy
2 x 520 lm - 3000K
Light distribution
Beam 22°
Beam 50° (on request)
Fitting
-
Light colour
White 3000K
White 2700K | 4000K (on request)
Voltage connection
By driver (optional)
CRI
>90
Emergency
On request
Note
On request available dimmable PUSH or DALI,
remote installation.
Black tige and box for X2 champagne
and rose gold.
OPTIONAL ACCESSORIES
product code
optional code
description
info
1202 XX
H8500.E
Constant current electronic
driver. Remote installation
Suitable for n°1 code 1202 XX - 500 mA
CODE COMPOSITION
1202 _ 2 S _ E _ WD
light colour
27
2700K
30
3000K
40
4000K
lens
22
22°
50
50°
finishing
WH
white
BL
black
A1
champagne
A2
rose gold
example of code composition
1202 WH 2 S 22 E 30 WD
A
matt white
matt black
champagne
rose gold
228 |
www.buzzi-buzzi.it | 229
Indoor Surface stand alone
