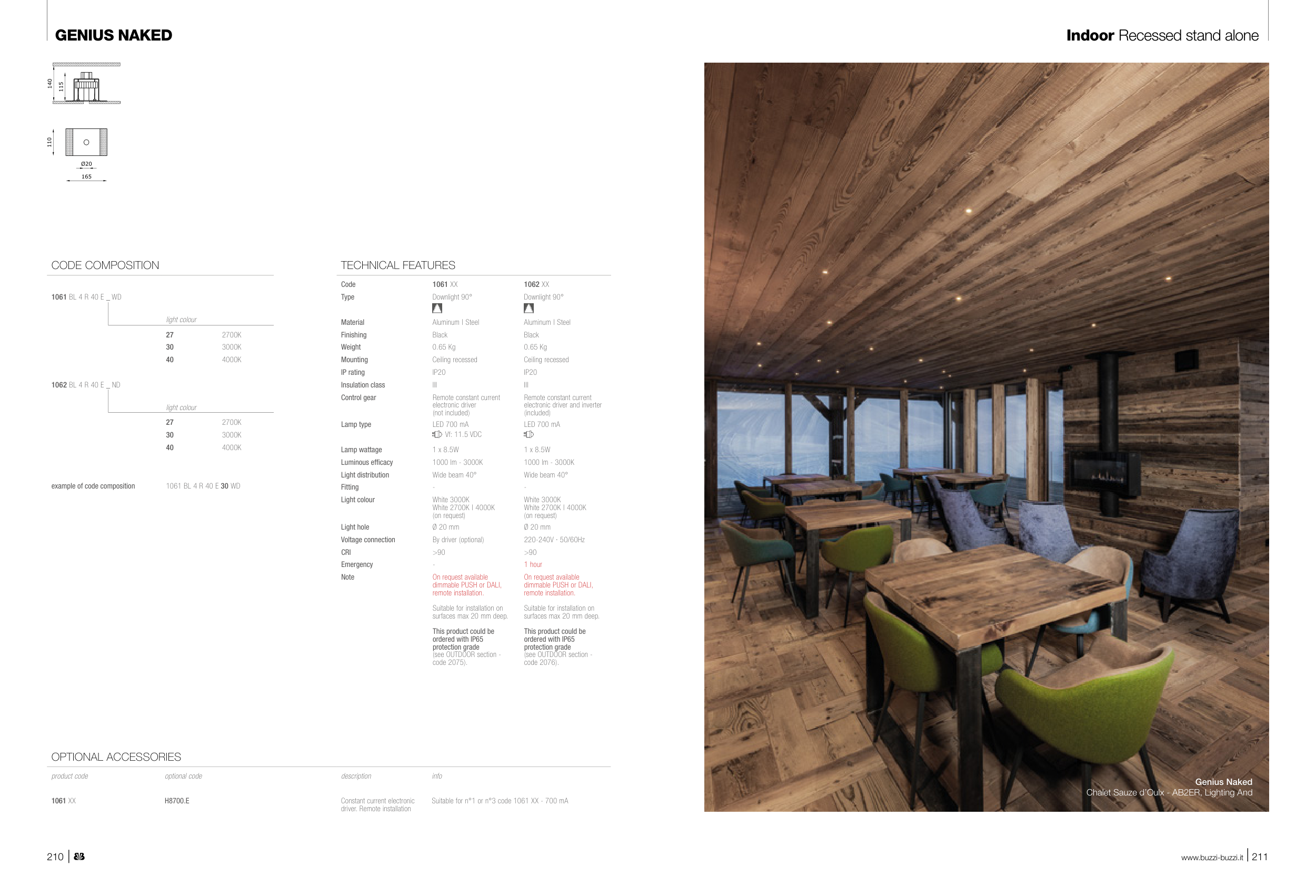

Genius Naked
Chalet Sauze d’Oulx - AB2ER, Lighting And
CODE COMPOSITION
1061 BL 4 R 40 E _ WD
light colour
27
2700K
30
3000K
40
4000K
1062 BL 4 R 40 E _ ND
light colour
27
2700K
30
3000K
40
4000K
example of code composition
1061 BL 4 R 40 E 30 WD
OPTIONAL ACCESSORIES
product code
optional code
description
info
1061 XX
H8700.E
Constant current electronic
driver. Remote installation
Suitable for n°1 or n°3 code 1061 XX - 700 mA
TECHNICAL FEATURES
Code
1061 XX
1062 XX
Type
Downlight 90°
Downlight 90°
Material
Aluminum | Steel
Aluminum | Steel
Finishing
Black
Black
Weight
0.65 Kg
0.65 Kg
Mounting
Ceiling recessed
Ceiling recessed
IP rating
IP20
IP20
Insulation class
III
III
Control gear
Remote constant current
electronic driver
(not included)
Remote constant current
electronic driver and inverter
(included)
Lamp type
LED 700 mA
LED 700 mA
Vf: 11.5 VDC
Lamp wattage
1 x 8.5W
1 x 8.5W
Luminous efficacy
1000 lm - 3000K
1000 lm - 3000K
Light distribution
Wide beam 40°
Wide beam 40°
Fitting
-
-
Light colour
White 3000K
White 2700K | 4000K
(on request)
White 3000K
White 2700K | 4000K
(on request)
Light hole
Ø 20 mm
Ø 20 mm
Voltage connection
By driver (optional)
220-240V · 50/60Hz
CRI
>90
>90
Emergency
-
1 hour
Note
On request available
dimmable PUSH or DALI,
remote installation.
Suitable for installation on
surfaces max 20 mm deep.
This product could be
ordered with IP65
protection grade
(see OUTDOOR section -
code 2075).
On request available
dimmable PUSH or DALI,
remote installation.
Suitable for installation on
surfaces max 20 mm deep.
This product could be
ordered with IP65
protection grade
(see OUTDOOR section -
code 2076).
210 |
www.buzzi-buzzi.it | 211
Indoor Recessed stand alone
GENIUS NAKED
