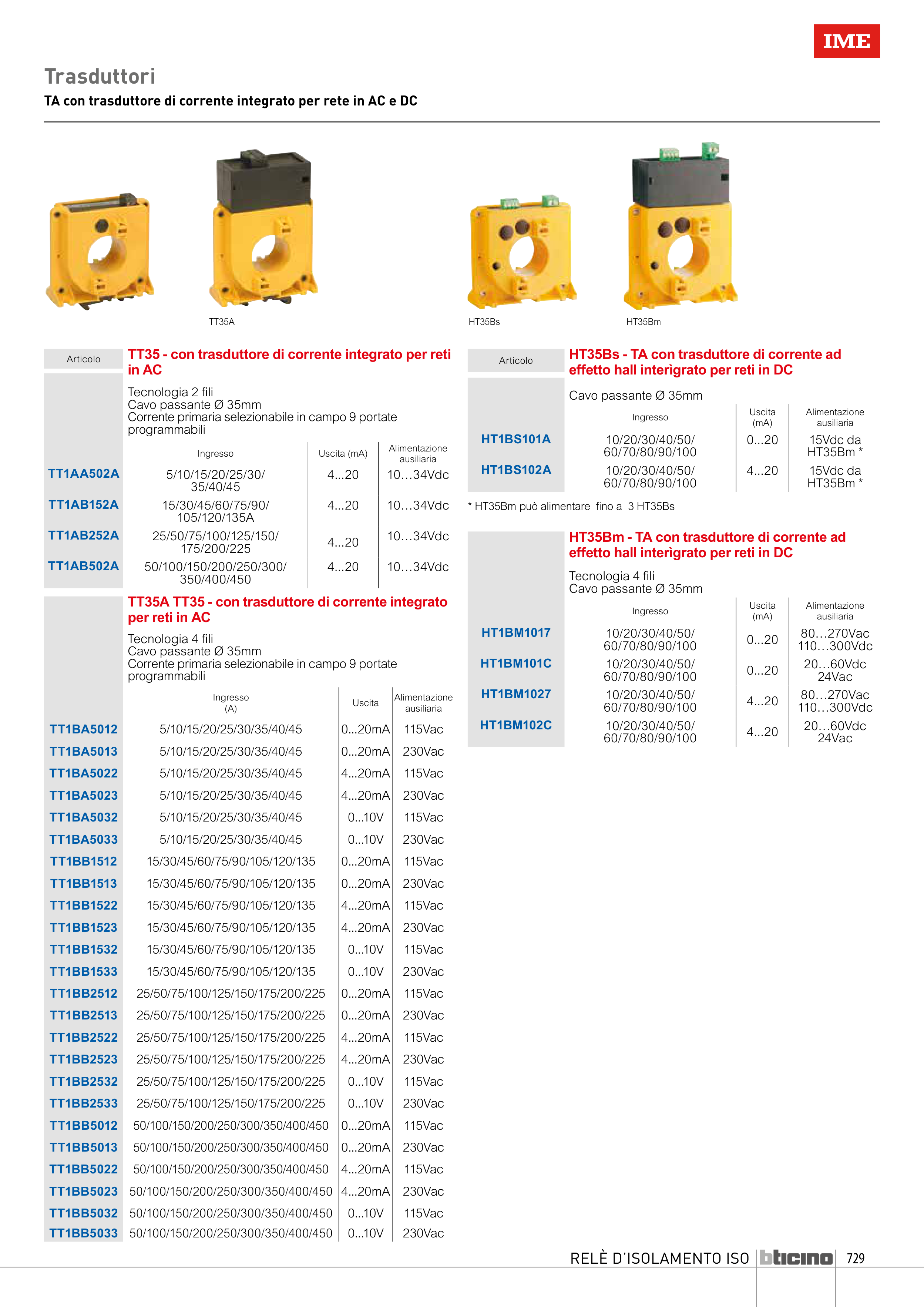

Trasduttori
TA con trasduttore di corrente integrato per rete in AC e DC
Articolo
TT35 - con trasduttore di corrente integrato per reti
in AC
Tecnologia 2 fili
Cavo passante Ø 35mm
Corrente primaria selezionabile in campo 9 portate
programmabili
Ingresso
Uscita (mA)
Alimentazione
ausiliaria
TT1AA502A
5/10/15/20/25/30/
35/40/45
4...20
10…34Vdc
TT1AB152A
15/30/45/60/75/90/
105/120/135A
4...20
10…34Vdc
TT1AB252A
25/50/75/100/125/150/
175/200/225
4...20
10…34Vdc
TT1AB502A
50/100/150/200/250/300/
350/400/450
4...20
10…34Vdc
TT35A TT35 - con trasduttore di corrente integrato
per reti in AC
Tecnologia 4 fili
Cavo passante Ø 35mm
Corrente primaria selezionabile in campo 9 portate
programmabili
Ingresso
(A)
Uscita
Alimentazione
ausiliaria
TT1BA5012
5/10/15/20/25/30/35/40/45
0...20mA
115Vac
TT1BA5013
5/10/15/20/25/30/35/40/45
0...20mA
230Vac
TT1BA5022
5/10/15/20/25/30/35/40/45
4...20mA
115Vac
TT1BA5023
5/10/15/20/25/30/35/40/45
4...20mA
230Vac
TT1BA5032
5/10/15/20/25/30/35/40/45
0...10V
115Vac
TT1BA5033
5/10/15/20/25/30/35/40/45
0...10V
230Vac
TT1BB1512
15/30/45/60/75/90/105/120/135
0...20mA
115Vac
TT1BB1513
15/30/45/60/75/90/105/120/135
0...20mA
230Vac
TT1BB1522
15/30/45/60/75/90/105/120/135
4...20mA
115Vac
TT1BB1523
15/30/45/60/75/90/105/120/135
4...20mA
230Vac
TT1BB1532
15/30/45/60/75/90/105/120/135
0...10V
115Vac
TT1BB1533
15/30/45/60/75/90/105/120/135
0...10V
230Vac
TT1BB2512
25/50/75/100/125/150/175/200/225
0...20mA
115Vac
TT1BB2513
25/50/75/100/125/150/175/200/225
0...20mA
230Vac
TT1BB2522
25/50/75/100/125/150/175/200/225
4...20mA
115Vac
TT1BB2523
25/50/75/100/125/150/175/200/225
4...20mA
230Vac
TT1BB2532
25/50/75/100/125/150/175/200/225
0...10V
115Vac
TT1BB2533
25/50/75/100/125/150/175/200/225
0...10V
230Vac
TT1BB5012
50/100/150/200/250/300/350/400/450
0...20mA
115Vac
TT1BB5013
50/100/150/200/250/300/350/400/450
0...20mA
230Vac
TT1BB5022
50/100/150/200/250/300/350/400/450
4...20mA
115Vac
TT1BB5023
50/100/150/200/250/300/350/400/450 4...20mA
230Vac
TT1BB5032
50/100/150/200/250/300/350/400/450
0...10V
115Vac
TT1BB5033
50/100/150/200/250/300/350/400/450
0...10V
230Vac
TT35A
Articolo
HT35Bs - TA con trasduttore di corrente ad
effetto hall interìgrato per reti in DC
Cavo passante Ø 35mm
Ingresso
Uscita
(mA)
Alimentazione
ausiliaria
HT1BS101A
10/20/30/40/50/
60/70/80/90/100
0...20
15Vdc da
HT35Bm *
HT1BS102A
10/20/30/40/50/
60/70/80/90/100
4...20
15Vdc da
HT35Bm *
HT35Bm - TA con trasduttore di corrente ad
effetto hall interìgrato per reti in DC
Tecnologia 4 fili
Cavo passante Ø 35mm
Ingresso
Uscita
(mA)
Alimentazione
ausiliaria
HT1BM1017
10/20/30/40/50/
60/70/80/90/100
0...20
80…270Vac
110…300Vdc
HT1BM101C
10/20/30/40/50/
60/70/80/90/100
0...20
20…60Vdc
24Vac
HT1BM1027
10/20/30/40/50/
60/70/80/90/100
4...20
80…270Vac
110…300Vdc
HT1BM102C
10/20/30/40/50/
60/70/80/90/100
4...20
20…60Vdc
24Vac
HT35Bs
HT35Bm
* HT35Bm può alimentare fino a 3 HT35Bs
