PENDANT | SURFACE
.PN
.SR
Select finishes
.WH-WH
.BK-BK
Reference order XXXX.XX
CONNECTION BOX FOR REMOTE DRIVER
DRIVER BOX
FINISH
120
45
400
80
50
380
Ø66
CB09.12
CB06.40
CB08.30
JOINTS
COMPONENTS
Each angle joint requires an additional driver to that of the luminaire. Cada esquina requiere de un driver adicional al de la luminaria.
*2 Miter cut diffuser. Difusor a inglete.
OPTIONS (.PN)
Reference order SCXX.SA
SUSPENSION KIT
REF.
DIMEN-
SION
FINISH
SC05
5M.
.SA
SC07
7M.
SC10
10M.
COVER KIT
REF.
FINISH
TF18
Reference order TF18 .XX
.SR
.PN
Reference order XX18 .XX
.SR
.PN
ANGLE JOINT*2
T-JOINT
CROSS JOINT
WALL-CEILING JOINT
FINISH
X
UL18
UT18
UC18
X
LINEAR JOINT
160
22
UR18

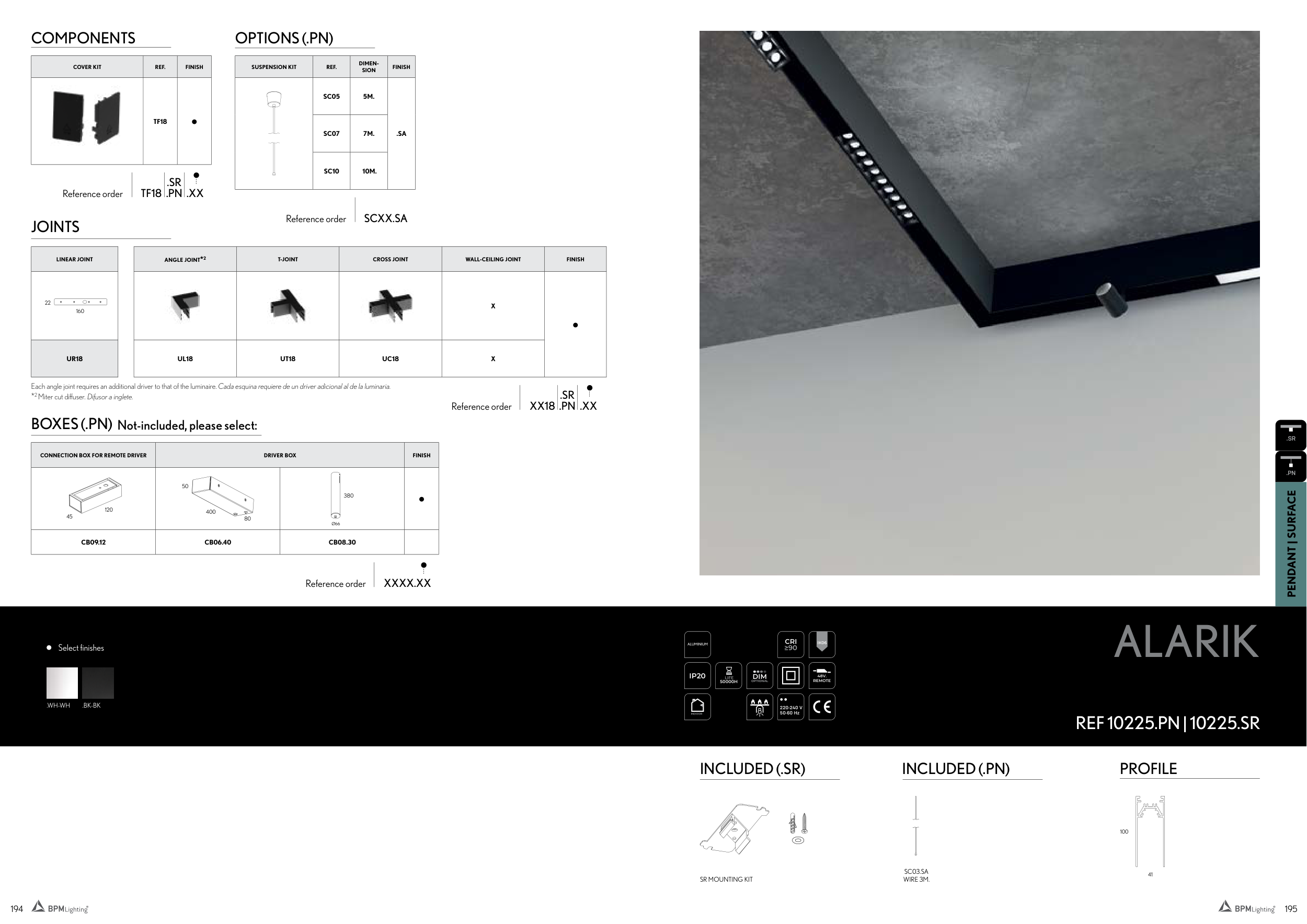

ALARIK
100
41
PROFILE
SR MOUNTING KIT
DIM
OPTIONAL
IK06
220-240 V
50-60 Hz
CRI
ALUMINIUM
48V.
REMOTE
LIFE
50000H
INDOOR
REF 10225.PN | 10225.SR
INCLUDED (.SR)
SC03.SA
WIRE 3M.
INCLUDED (.PN)
IP20
BOXES (.PN) Not-included, please select:
194
195
