LUMINAIRE INCLUDES
Wall surface mounting kit
Reference order 10055.XX.WS.WH-WH.XX.XX.9.XX.XX

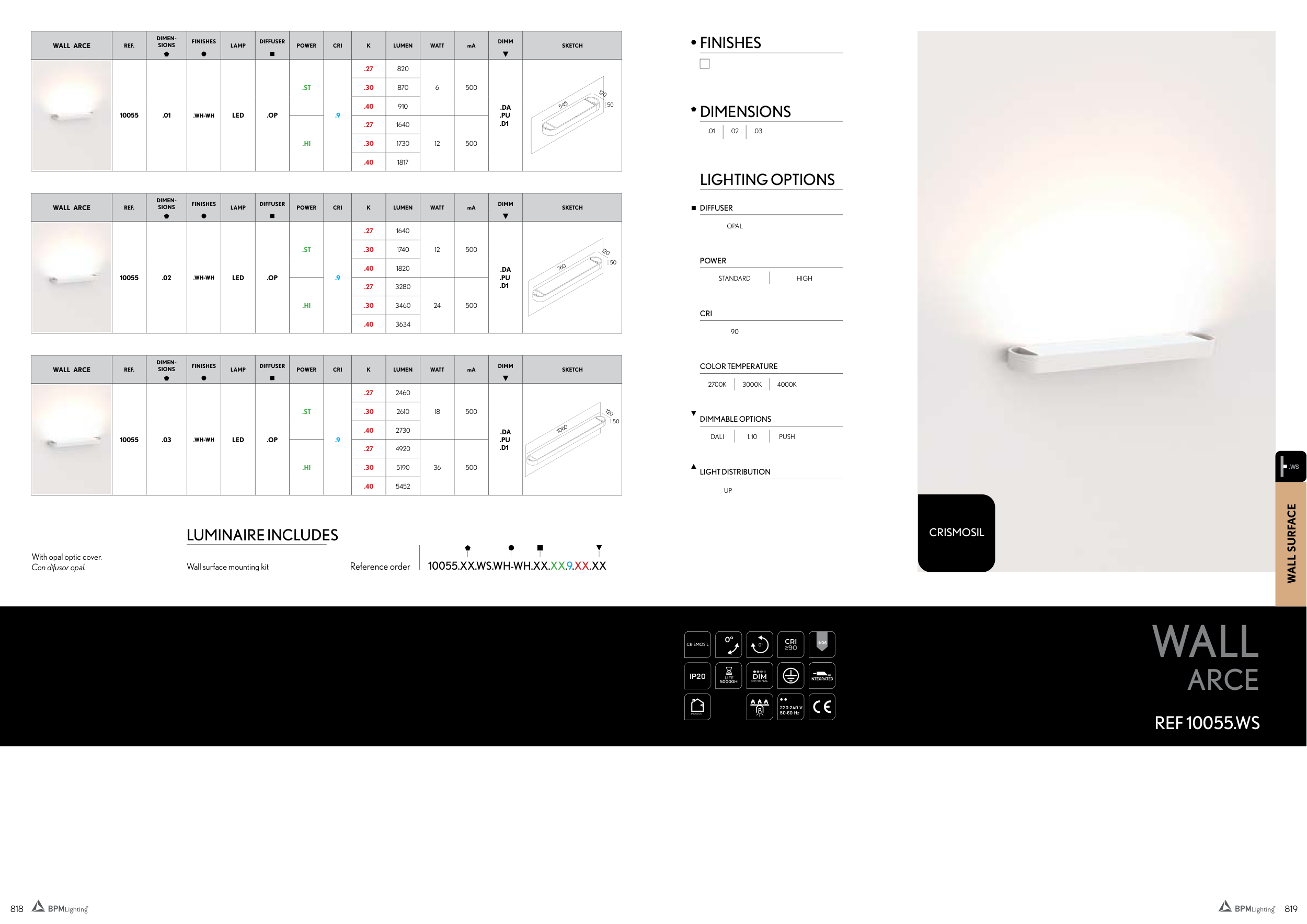

WALL ARCE
REF.
DIMEN-
SIONS
FINISHES
LAMP
DIFFUSER
POWER
CRI
K
LUMEN
WATT
mA
DIMM
SKETCH
10055
.01
.WH-WH
LED
.OP
.ST
.9
.27
820
6
500
.DA
.PU
.D1
50
120
545
.30
870
.40
910
.HI
.27
1640
12
500
.30
1730
.40
1817
WALL ARCE
REF.
DIMEN-
SIONS
FINISHES
LAMP
DIFFUSER
POWER
CRI
K
LUMEN
WATT
mA
DIMM
SKETCH
10055
.02
.WH-WH
LED
.OP
.ST
.9
.27
1640
12
500
.DA
.PU
.D1
120
50
760
.30
1740
.40
1820
.HI
.27
3280
24
500
.30
3460
.40
3634
WALL ARCE
REF.
DIMEN-
SIONS
FINISHES
LAMP
DIFFUSER
POWER
CRI
K
LUMEN
WATT
mA
DIMM
SKETCH
10055
.03
.WH-WH
LED
.OP
.ST
.9
.27
2460
18
500
.DA
.PU
.D1
120
50
1060
.30
2610
.40
2730
.HI
.27
4920
36
500
.30
5190
.40
5452
With opal optic cover.
Con difusor opal.
FINISHES
DIMENSIONS
.01
.02
.03
LIGHTING OPTIONS
DIFFUSER
OPAL
POWER
STANDARD
HIGH
CRI
90
COLOR TEMPERATURE
2700K
3000K
4000K
DIMMABLE OPTIONS
DALI
1..10
PUSH
LIGHT DISTRIBUTION
UP
WALL SURFACE
WALL
ARCE
REF 10055.WS
CRISMOSIL
0º
DIM
OPTIONAL
IK06
INTEGRATED
220-240 V
50-60 Hz
CRI
LIFE
50000H
INDOOR
0º
CRISMOSIL
IP20
818
819
WALL SURFACE
.WS
