LUMINAIRE INCLUDES
Recessed with frame mounting kit
Reference order 10001.01.TR.WH-WH.XX.XX.X.XX.XX

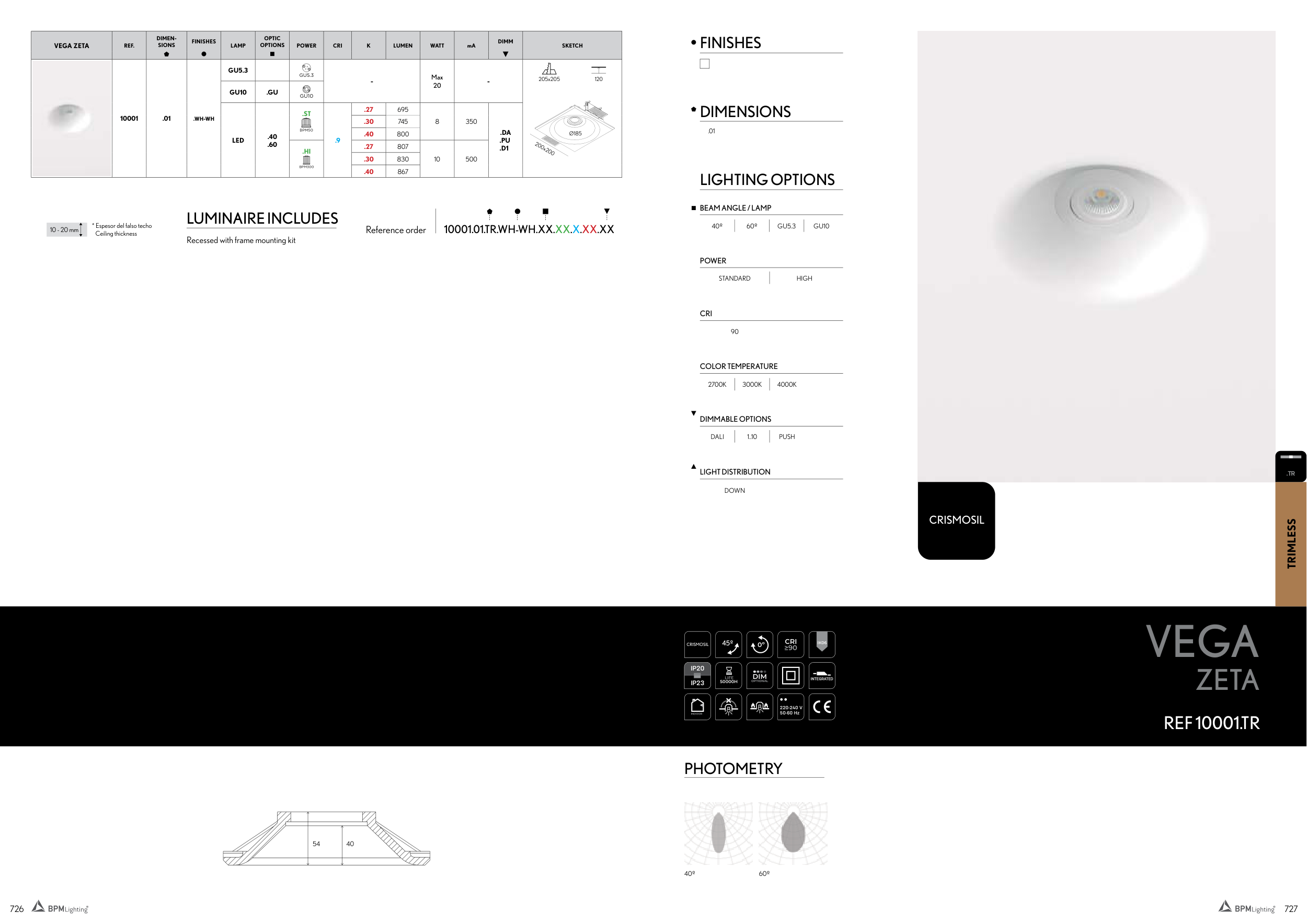

VEGA ZETA
REF.
DIMEN-
SIONS
FINISHES
LAMP
OPTIC
OPTIONS
POWER
CRI
K
LUMEN
WATT
mA
DIMM
SKETCH
10001
.01
.WH-WH
GU5.3
GU5.3
-
Max
20
-
205x205
120
GU10
.GU
GU10
Ø185
200x200
LED
.40
.60
.ST
BPM50
.9
.27
695
8
350
.DA
.PU
.D1
.30
745
.40
800
.HI
BPM300
.27
807
10
500
.30
830
.40
867
* Espesor del falso techo
Ceiling thickness
10 - 20 mm
FINISHES
DIMENSIONS
.01
LIGHTING OPTIONS
BEAM ANGLE / LAMP
40º
60º
GU5.3
GU10
POWER
STANDARD
HIGH
CRI
90
COLOR TEMPERATURE
2700K
3000K
4000K
DIMMABLE OPTIONS
DALI
1..10
PUSH
LIGHT DISTRIBUTION
DOWN
PHOTOMETRY
40º
60º
VEGA
ZETA
REF 10001.TR
CRISMOSIL
DIM
OPTIONAL
IK06
INTEGRATED
220-240 V
50-60 Hz
CRI
LIFE
50000H
INDOOR
CRISMOSIL
0º
45º
IP23
IP20
726
727
TRIMLESS
.TR
40
54
