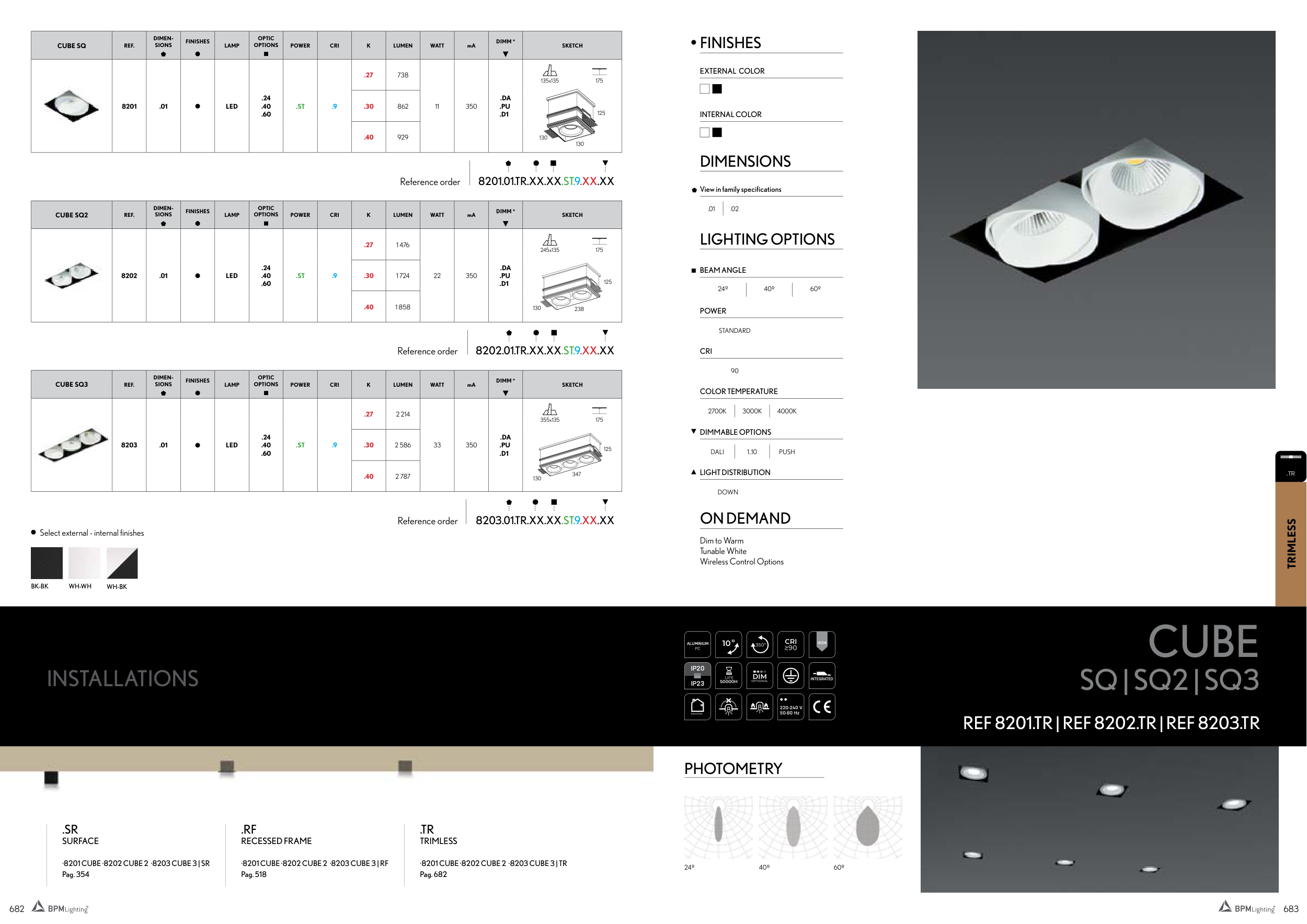

TRIMLESS
.TR
Reference order 8201.01.TR.XX.XX.ST.9.XX.XX
CUBE SQ
REF.
DIMEN-
SIONS
FINISHES
LAMP
OPTIC
OPTIONS
POWER
CRI
K
LUMEN
WATT
mA
DIMM *
SKETCH
8201
.01
LED
.24
.40
.60
.ST
.9
.27
738
11
350
.DA
.PU
.D1
135x135
175
125
130
130
.30
862
.40
929
CUBE SQ2
REF.
DIMEN-
SIONS
FINISHES
LAMP
OPTIC
OPTIONS
POWER
CRI
K
LUMEN
WATT
mA
DIMM *
SKETCH
8202
.01
LED
.24
.40
.60
.ST
.9
.27
1 476
22
350
.DA
.PU
.D1
245x135
175
125
130
238
.30
1 724
.40
1 858
Reference order 8202.01.TR.XX.XX.ST.9.XX.XX
CUBE SQ3
REF.
DIMEN-
SIONS
FINISHES
LAMP
OPTIC
OPTIONS
POWER
CRI
K
LUMEN
WATT
mA
DIMM *
SKETCH
8203
.01
LED
.24
.40
.60
.ST
.9
.27
2 214
33
350
.DA
.PU
.D1
355x135
175
125
130
347
.30
2 586
.40
2 787
Reference order 8203.01.TR.XX.XX.ST.9.XX.XX
FINISHES
EXTERNAL COLOR
INTERNAL COLOR
DIMENSIONS
View in family specifications
.01
.02
LIGHTING OPTIONS
BEAM ANGLE
24º
40º
60º
POWER
STANDARD
CRI
90
COLOR TEMPERATURE
2700K
3000K
4000K
DIMMABLE OPTIONS
DALI
1..10
PUSH
LIGHT DISTRIBUTION
DOWN
PHOTOMETRY
24º
40º
60º
CUBE
SQ | SQ2 | SQ3
REF 8201.TR | REF 8202.TR | REF 8203.TR
.TR
TRIMLESS
·8201 CUBE ·8202 CUBE 2 ·8203 CUBE 3 | TR
Pag. 682
.RF
RECESSED FRAME
·8201 CUBE ·8202 CUBE 2 ·8203 CUBE 3 | RF
Pag. 518
.SR
SURFACE
·8201 CUBE ·8202 CUBE 2 ·8203 CUBE 3 | SR
Pag. 354
ON DEMAND
Dim to Warm
Tunable White
Wireless Control Options
INSTALLATIONS
350º
DIM
OPTIONAL
IK06
INTEGRATED
220-240 V
50-60 Hz
ALUMINIUM
PC
CRI
LIFE
50000H
INDOOR
Select external - internal finishes
BK-BK
WH-WH
WH-BK
IP23
IP20
10º
