TRIMLESS
.TR
.TR
TRIMLESS
·20115 MARTORELL | TR
Pag. 676
.RF
RECESSED FRAME
·20115 MARTORELL | RF
Pag. 494
.SR
SURFACE
·20115 MARTORELL | SR
Pag. 322
.PN
PENDANT
·20115 MARTORELL | PN
Pag. 322
.TK
TRACKLIGHT
·20115 MARTORELL | TK
Pag. 744

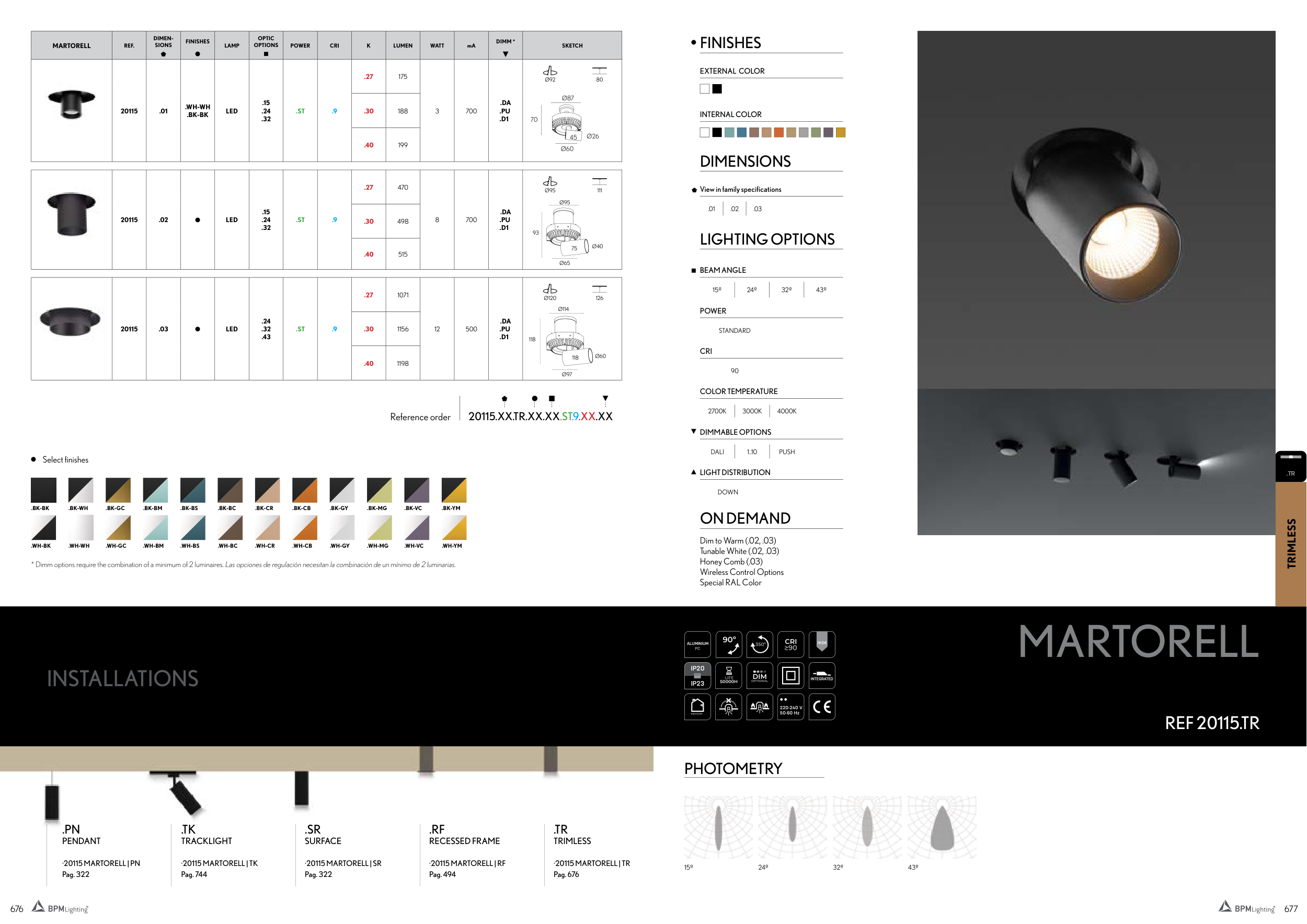

MARTORELL
REF.
DIMEN-
SIONS
FINISHES
LAMP
OPTIC
OPTIONS
POWER
CRI
K
LUMEN
WATT
mA
DIMM *
SKETCH
20115
.01
.WH-WH
.BK-BK
LED
.15
.24
.32
.ST
.9
.27
175
3
700
.DA
.PU
.D1
Ø92
80
45
Ø60
Ø26
Ø87
70
.30
188
.40
199
20115
.02
LED
.15
.24
.32
.ST
.9
.27
470
8
700
.DA
.PU
.D1
Ø95
111
75
Ø65
Ø40
Ø95
93
.30
498
.40
515
20115
.03
LED
.24
.32
.43
.ST
.9
.27
1071
12
500
.DA
.PU
.D1
Ø120
126
118
Ø114
Ø60
Ø97
118
.30
1156
.40
1198
Reference order 20115.XX.TR.XX.XX.ST.9.XX.XX
.WH-GC
.WH-BK
.WH-BM
.WH-BS
.WH-BC
.WH-CR
.WH-CB
.WH-GY
.WH-VC
.WH-MG
.WH-YM
.BK-GC
.BK-WH
.BK-BM
.BK-BS
.BK-BC
.BK-CR
.BK-CB
.BK-GY
.BK-VC
.BK-MG
.BK-YM
.WH-WH
.BK-BK
Select finishes
FINISHES
EXTERNAL COLOR
INTERNAL COLOR
DIMENSIONS
View in family specifications
.01
.02
.03
LIGHTING OPTIONS
BEAM ANGLE
15º
24º
32º
43º
POWER
STANDARD
CRI
90
COLOR TEMPERATURE
2700K
3000K
4000K
DIMMABLE OPTIONS
DALI
1..10
PUSH
LIGHT DISTRIBUTION
DOWN
PHOTOMETRY
DIM
OPTIONAL
IK06
INTEGRATED
220-240 V
50-60 Hz
ALUMINIUM
PC
CRI
LIFE
50000H
INDOOR
ON DEMAND
Dim to Warm (.02, .03)
Tunable White (.02, .03)
Honey Comb (.03)
Wireless Control Options
Special RAL Color
INSTALLATIONS
REF 20115.TR
MARTORELL
IP23
IP20
15º
24º
43º
32º
90º
350º
* Dimm options require the combination of a minimum of 2 luminaires. Las opciones de regulación necesitan la combinación de un mínimo de 2 luminarias.
676
677
