TRIMLESS
.TR
TRIMLESS
.TR
Reference order 10160.XX.TR.XX.XX.XX.X.XX.XX
REF.
ELECTRIC SYSTEM LENGTH
FINISH
DIFFUSER
POWER
CRI
DOWNLIGHT *2 | LUMEN
WATT
DIMM
MM
.27
.30
.40
.TW *1
K
TW
10160
.03
843
.OP
.MP
.ST
.9
2295
2385
2475
5700-5910
18
38
.DA
.PU
.D1
.04
1124
3060
3180
3300
7600-7880
24
51
.05
1405
3825
3975
4125
9500-9850
30
64
.06
1686
4590
4770
4950
11400-11820
36
76
.07
1967
5355
5565
5775
13300-13790
42
89
.08
2248
6120
6360
6600
15200-15760
48
102
.09
2529
6885
7155
7425
-
54
-
.10
2810
7650
7950
8250
-
60
-
REF.
ELECTRIC SYSTEM LENGTH
FINISH
DIFFUSER
POWER
CRI
DOWNLIGHT *2 | LUMEN
WATT
DIMM
MM
.27
.30
.40
10160
.03
843
.OP
.MP
.HI
.9
4590
4767
4956
35
.DA
.PU
.D1
.04
1124
6120
6356
6608
47
.05
1405
7650
7945
8260
59
.06
1686
9180
9534
9912
71
.07
1967
10710
11123
11564
83
.08
2248
12240
12712
13216
94
.09
2529
13770
14301
14868
115
.10
2810
15300
15890
16520
120
*1 Tunable White (.TW) values correspond to 2700K and 6500K - .TW is only available for DALI DT8 dimmable (.DA), CRI 80 (.8) 700mA. Los valores del blanco dinámico (.TW) corresponden a 2700K y
6500K. -.TW solo está disponible con protocolo DALI DT8 (.DA), CRI 80 (.8) 700mA.
*2 Down light (direct light) works at 500mA. La luz directa trabaja a 500mA.
*3 Miter cut diffuser. Difusor a inglete.
Select finish
.WH-WH
.GC-GC
.BK-BK
.BM-BM
.BS-BS
.BC-BC
.CR-CR
.CB-CB
.GY-GY
.VC-VC
.MG-MG
.YM-YM
PROFILE
43
64
13,5
117

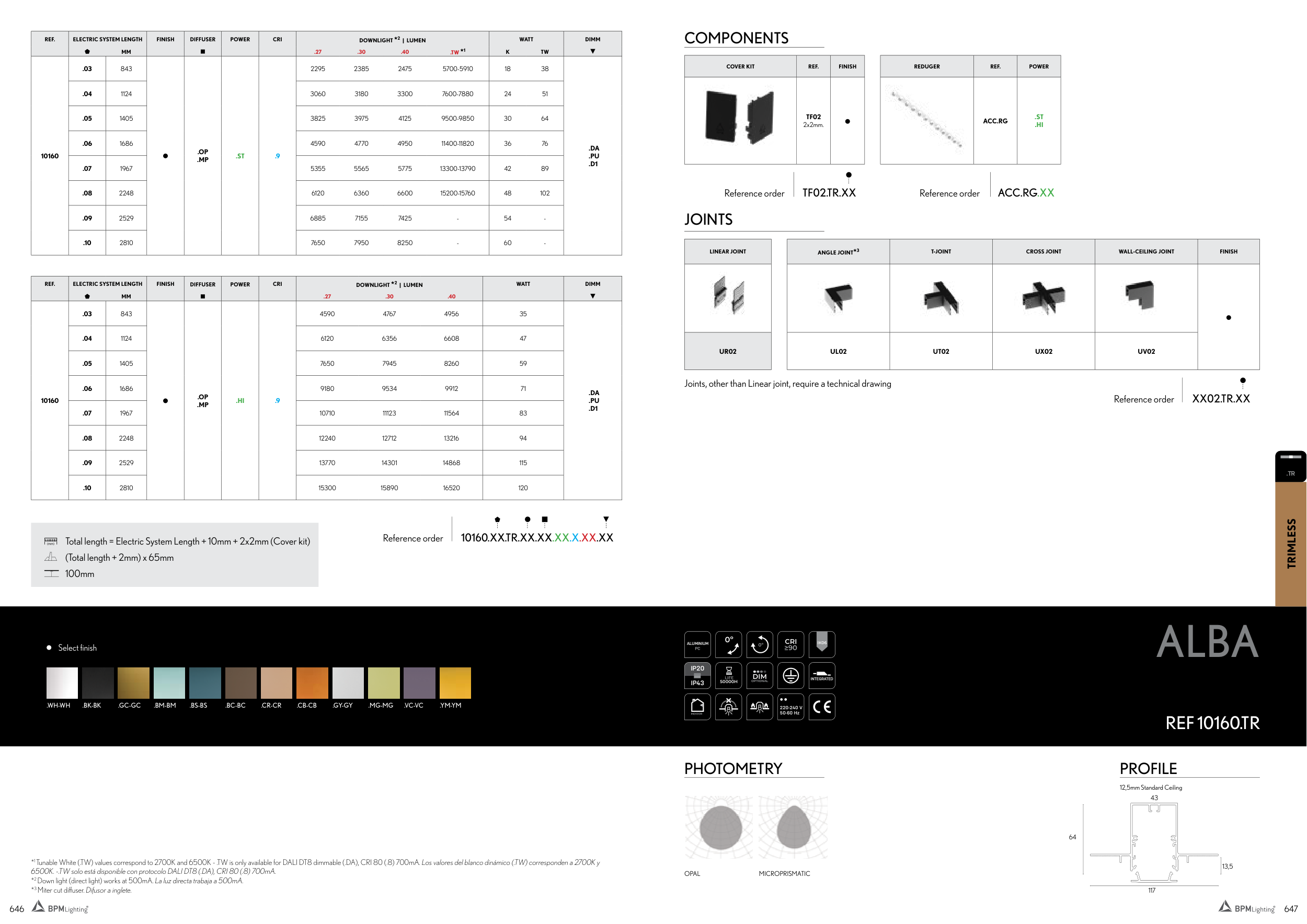

ALBA
REF 10160.TR
OPAL
MICROPRISMATIC
PHOTOMETRY
IP43
IP20
0º
0º
DIM
OPTIONAL
IK06
INTEGRATED
220-240 V
50-60 Hz
ALUMINIUM
PC
CRI
LIFE
50000H
INDOOR
JOINTS
Reference order ACC.RG.XX
REDUGER
REF.
POWER
ACC.RG
.ST
.HI
Reference order XX02.TR.XX
ANGLE JOINT*3
T-JOINT
CROSS JOINT
WALL-CEILING JOINT
FINISH
UL02
UT02
UX02
UV02
LINEAR JOINT
UR02
COMPONENTS
COVER KIT
REF.
FINISH
TF02
2x2mm.
Reference order TF02.TR.XX
Total length = Electric System Length + 10mm + 2x2mm (Cover kit)
(Total length + 2mm) x 65mm
100mm
(mm)
12,5mm Standard Ceiling
Joints, other than Linear joint, require a technical drawing
