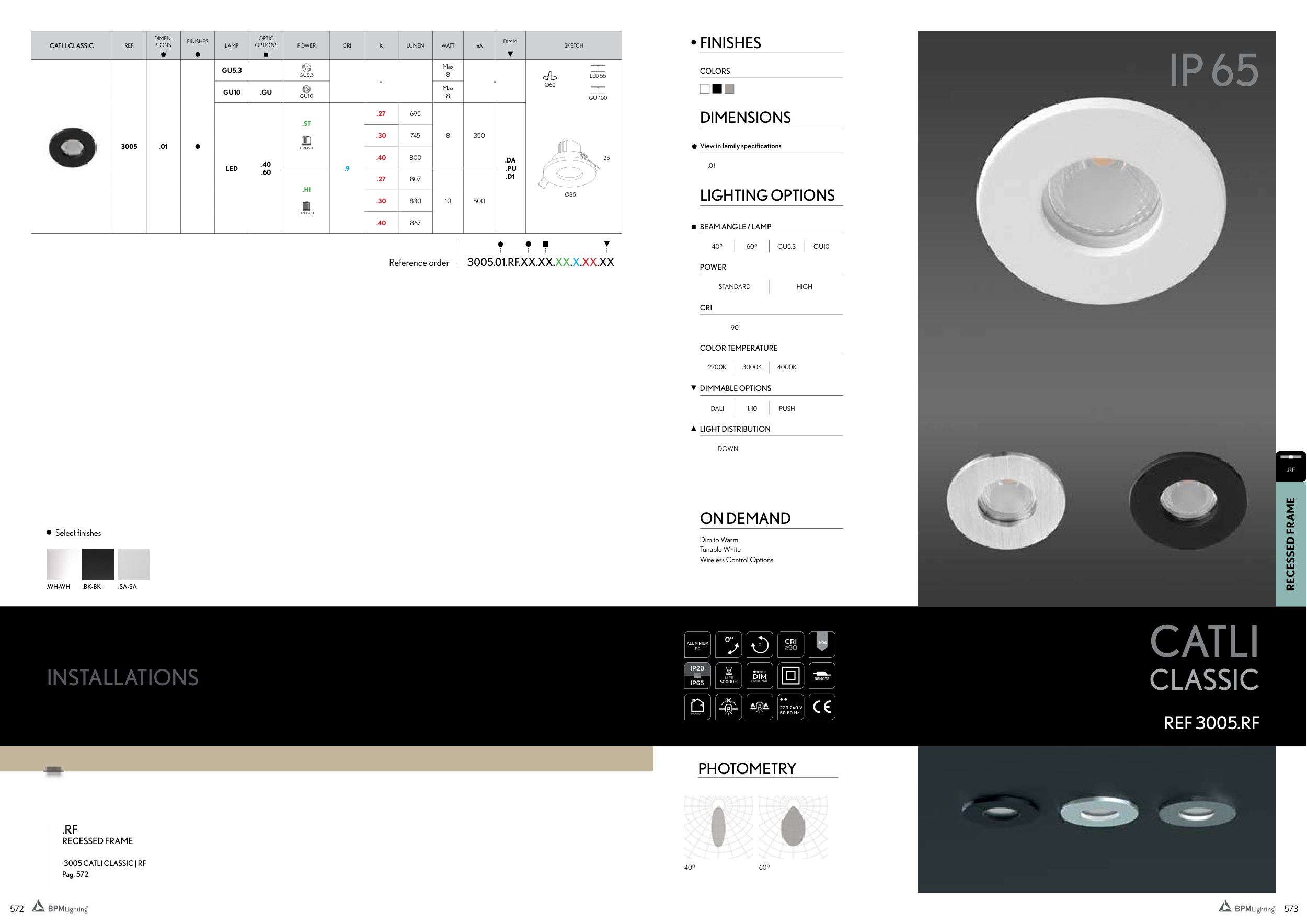

INSTALLATIONS
RECESSED FRAME
.RF
.RF
RECESSED FRAME
·3005 CATLI CLASSIC | RF
Pag. 572
Reference order 3005.01.RF.XX.XX.XX.X.XX.XX
Select finishes
.WH-WH
.BK-BK
.SA-SA
CATLI CLASSIC
REF.
DIMEN-
SIONS
FINISHES
LAMP
OPTIC
OPTIONS
POWER
CRI
K
LUMEN
WATT
mA
DIMM
SKETCH
3005
.01
GU5.3
GU5.3
-
Max
8
-
Ø60
LED 55
GU10
.GU
GU10
Max
8
GU 100
LED
.40
.60
.ST
BPM50
.9
.27
695
8
350
.DA
.PU
.D1
25
Ø85
.30
745
.40
800
.HI
BPM300
.27
807
10
500
.30
830
.40
867
REF 3005.RF
PHOTOMETRY
FINISHES
COLORS
DIMENSIONS
View in family specifications
.01
LIGHTING OPTIONS
BEAM ANGLE / LAMP
40º
60º
GU5.3
GU10
POWER
STANDARD
HIGH
CRI
90
COLOR TEMPERATURE
2700K
3000K
4000K
DIMMABLE OPTIONS
DALI
1..10
PUSH
LIGHT DISTRIBUTION
DOWN
CATLI
CLASSIC
IP 65
40º
60º
ON DEMAND
Dim to Warm
Tunable White
Wireless Control Options
0º
0º
DIM
OPTIONAL
IK06
220-240 V
50-60 Hz
ALUMINIUM
PC
CRI
LIFE
50000H
INDOOR
REMOTE
IP65
IP20
572
573
