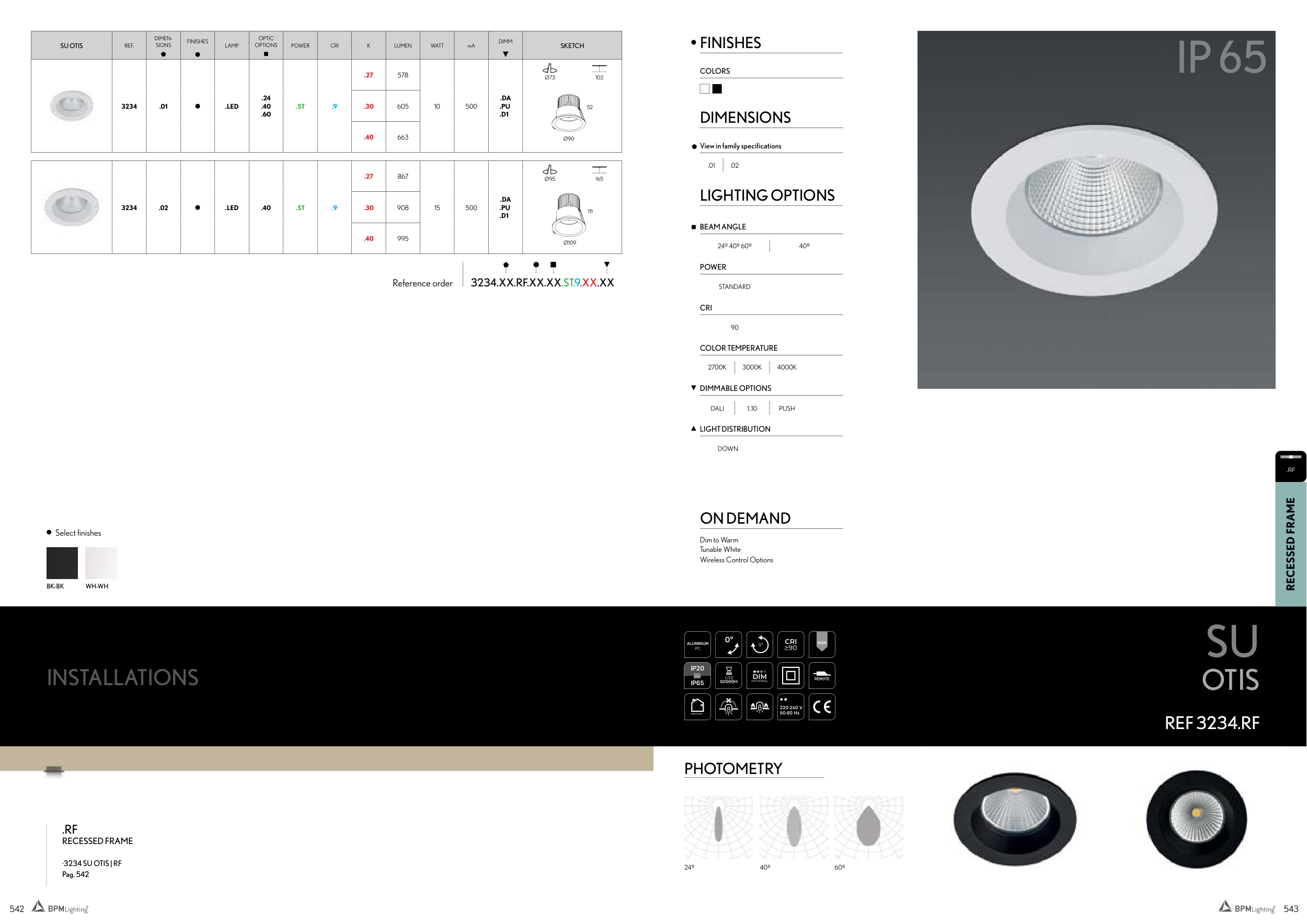

INSTALLATIONS
RECESSED FRAME
.RF
.RF
RECESSED FRAME
·3234 SU OTIS | RF
Pag. 542
Reference order 3234.XX.RF.XX.XX.ST.9.XX.XX
SU OTIS
REF.
DIMEN-
SIONS
FINISHES
LAMP
OPTIC
OPTIONS
POWER
CRI
K
LUMEN
WATT
mA
DIMM
SKETCH
3234
.01
.LED
.24
.40
.60
.ST
.9
.27
578
10
500
.DA
.PU
.D1
Ø73
102
52
Ø90
.30
605
.40
663
3234
.02
.LED
.40
.ST
.9
.27
867
15
500
.DA
.PU
.D1
Ø95
165
111
Ø109
.30
908
.40
995
Select finishes
BK-BK
WH-WH
FINISHES
COLORS
DIMENSIONS
View in family specifications
.01
.02
LIGHTING OPTIONS
BEAM ANGLE
24º 40º 60º
40º
POWER
STANDARD
CRI
90
COLOR TEMPERATURE
2700K
3000K
4000K
DIMMABLE OPTIONS
DALI
1..10
PUSH
LIGHT DISTRIBUTION
DOWN
SU
OTIS
REF 3234.RF
PHOTOMETRY
40º
24º
60º
IP 65
0º
0º
DIM
OPTIONAL
IK06
220-240 V
50-60 Hz
ALUMINIUM
PC
CRI
LIFE
50000H
INDOOR
ON DEMAND
Dim to Warm
Tunable White
Wireless Control Options
REMOTE
IP65
IP20
542
543
