INSTALLATIONS
RECESSED FRAME
.RF
.RF
RECESSED FRAME
·20149 CAN REVIEW | RF
Pag. 528
Reference order 20149.XX.RF.XX.XX.ST.9.XX.XX

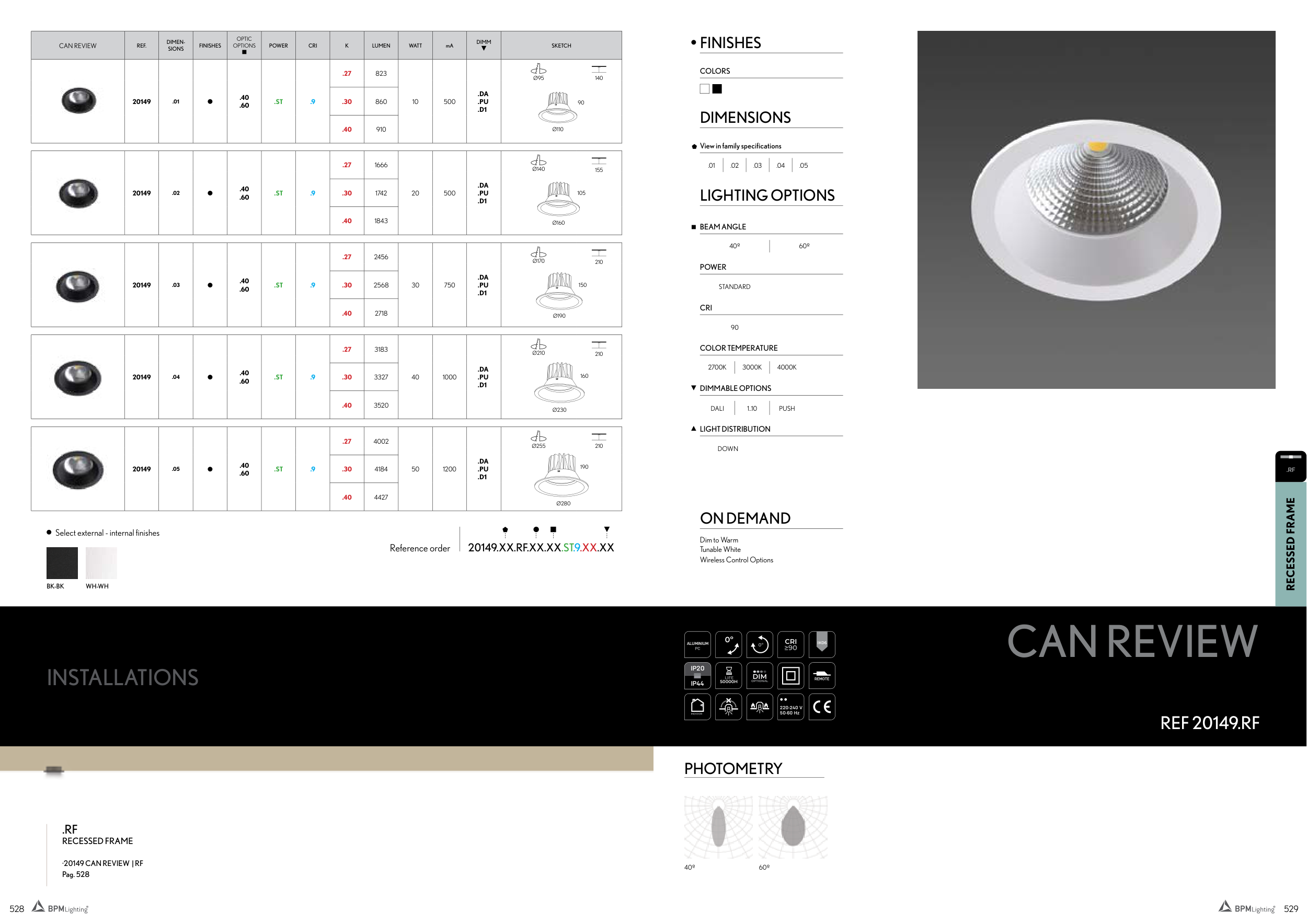

CAN REVIEW
REF.
DIMEN-
SIONS
FINISHES
OPTIC
OPTIONS
POWER
CRI
K
LUMEN
WATT
mA
DIMM
SKETCH
20149
.01
.40
.60
.ST
.9
.27
823
10
500
.DA
.PU
.D1
Ø95
140
Ø110
90
.30
860
.40
910
20149
.02
.40
.60
.ST
.9
.27
1666
20
500
.DA
.PU
.D1
Ø140
155
Ø160
105
.30
1742
.40
1843
20149
.03
.40
.60
.ST
.9
.27
2456
30
750
.DA
.PU
.D1
Ø170
210
Ø190
150
.30
2568
.40
2718
20149
.04
.40
.60
.ST
.9
.27
3183
40
1000
.DA
.PU
.D1
Ø210
210
Ø230
160
.30
3327
.40
3520
20149
.05
.40
.60
.ST
.9
.27
4002
50
1200
.DA
.PU
.D1
Ø255
210
Ø280
190
.30
4184
.40
4427
PHOTOMETRY
FINISHES
COLORS
DIMENSIONS
View in family specifications
.01
.02
.03
.04
.05
LIGHTING OPTIONS
BEAM ANGLE
40º
60º
POWER
STANDARD
CRI
90
COLOR TEMPERATURE
2700K
3000K
4000K
DIMMABLE OPTIONS
DALI
1..10
PUSH
LIGHT DISTRIBUTION
DOWN
CAN REVIEW
REF 20149.RF
ON DEMAND
Dim to Warm
Tunable White
Wireless Control Options
Select external - internal finishes
BK-BK
WH-WH
0º
0º
40º
60º
DIM
OPTIONAL
IK06
220-240 V
50-60 Hz
ALUMINIUM
PC
CRI
LIFE
50000H
INDOOR
REMOTE
IP44
IP20
