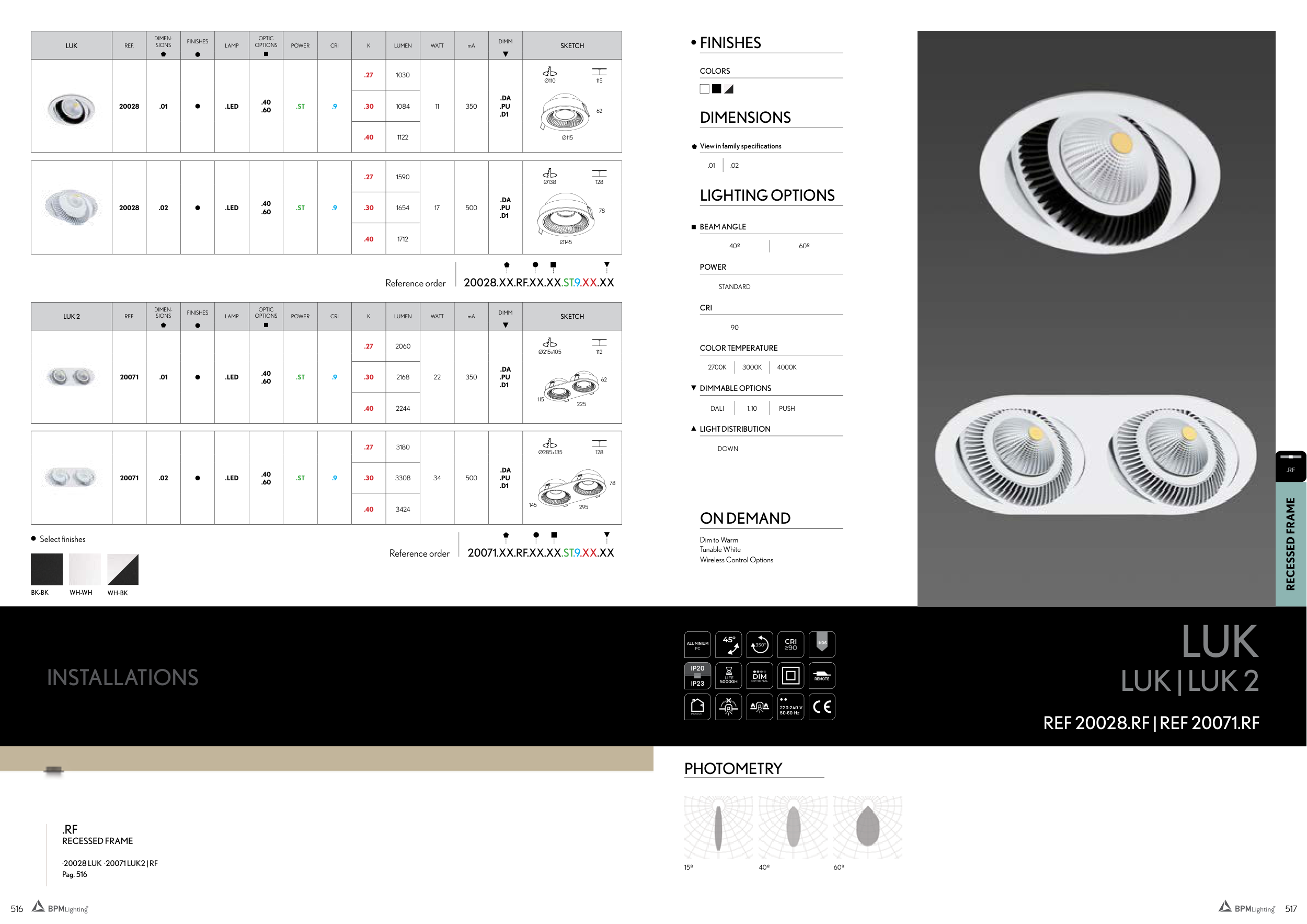

INSTALLATIONS
RECESSED FRAME
.RF
.RF
RECESSED FRAME
·20028 LUK ·20071 LUK2 | RF
Pag. 516
Select finishes
BK-BK
WH-WH
WH-BK
Reference order 20028.XX.RF.XX.XX.ST.9.XX.XX
LUK
REF.
DIMEN-
SIONS
FINISHES
LAMP
OPTIC
OPTIONS
POWER
CRI
K
LUMEN
WATT
mA
DIMM
SKETCH
20028
.01
.LED
.40
.60
.ST
.9
.27
1030
11
350
.DA
.PU
.D1
Ø110
115
Ø115
62
.30
1084
.40
1122
20028
.02
.LED
.40
.60
.ST
.9
.27
1590
17
500
.DA
.PU
.D1
Ø138
128
78
Ø145
.30
1654
.40
1712
Reference order 20071.XX.RF.XX.XX.ST.9.XX.XX
LUK 2
REF.
DIMEN-
SIONS
FINISHES
LAMP
OPTIC
OPTIONS
POWER
CRI
K
LUMEN
WATT
mA
DIMM
SKETCH
20071
.01
.LED
.40
.60
.ST
.9
.27
2060
22
350
.DA
.PU
.D1
Ø215x105
112
62
115
225
.30
2168
.40
2244
20071
.02
.LED
.40
.60
.ST
.9
.27
3180
34
500
.DA
.PU
.D1
Ø285x135
128
145
78
295
.30
3308
.40
3424
FINISHES
COLORS
DIMENSIONS
View in family specifications
.01
.02
LIGHTING OPTIONS
BEAM ANGLE
40º
60º
POWER
STANDARD
CRI
90
COLOR TEMPERATURE
2700K
3000K
4000K
DIMMABLE OPTIONS
DALI
1..10
PUSH
LIGHT DISTRIBUTION
DOWN
LUK
LUK | LUK 2
REF 20028.RF | REF 20071.RF
350º
45º
PHOTOMETRY
15º
40º
60º
DIM
OPTIONAL
IK06
220-240 V
50-60 Hz
ALUMINIUM
PC
CRI
LIFE
50000H
INDOOR
ON DEMAND
Dim to Warm
Tunable White
Wireless Control Options
REMOTE
IP23
IP20
