PENDANT | SURFACE
.PN
.SR
.PN
FINISHES
ACOUSTIC COLORS
DIMENSIONS
SIZES
mm.
Ø800
Ø1000
Ø1200
800x800
1000x1000
1200x1200
.PN
.SR
.SR
RD PANEL
REF.
DIMENSION
FINISH
SKETCH
AC.RD
.01
Ø800
.02
Ø1000
.03
Ø1200
SQ PANEL
REF.
DIMENSION
FINISH
SKETCH
AC.SQ
.01
800x800
.02
1000x1000
.03
1200x1200
Reference order AC.RD.XX .XX
.SR
.PN
Reference order AC.SQ.XX .XX
.SR
.PN

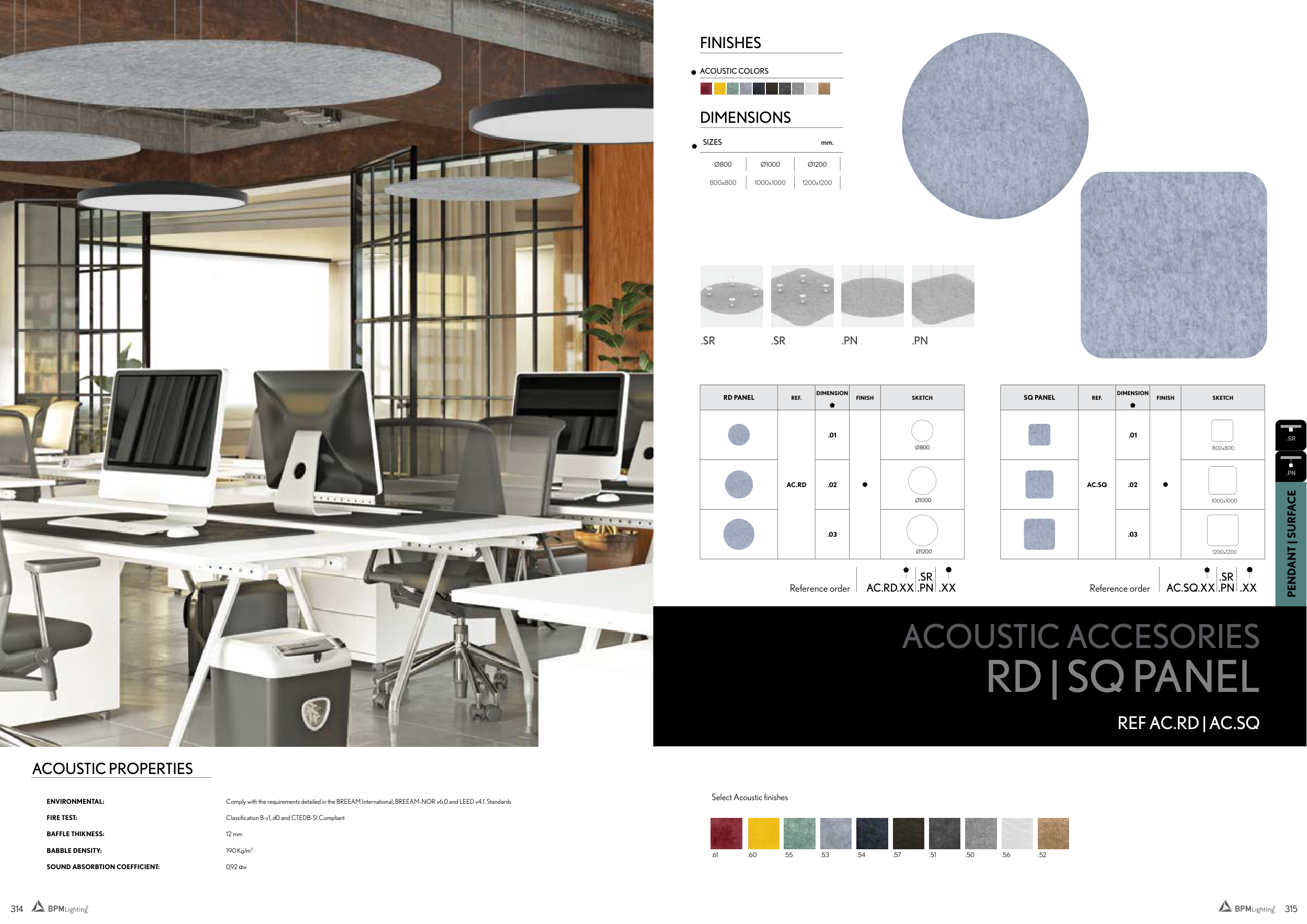

REF AC.RD | AC.SQ
ACOUSTIC ACCESORIES
RD | SQ PANEL
Select Acoustic finishes
.61
.55
.54
.51
.56
.60
.53
.57
.50
.52
ACOUSTIC PROPERTIES
ENVIRONMENTAL:
Comply with the requirements detailed in the BREEAM International, BREEAM-NOR v6.0 and LEED v4.1. Standards
FIRE TEST:
Classification B-s1, d0 and CTEDB-SI Compliant
BAFFLE THIKNESS:
12 mm
BABBLE DENSITY:
190 Kg/m3
SOUND ABSORBTION COEFFICIENT:
0,92 αw
