PENDANT
.PN
Select Spotlight finishes
.WH
.BK-GC
.WH-GC
.BK
ACOUSTIC PROPERTIES
ENVIRONMENTAL:
Comply with the requirements detailed in the BREEAM International, BREEAM-NOR v6.0 and LEED v4.1. Standards
FIRE TEST:
Classification B-s1, d0 and CTEDB-SI Compliant
BAFFLE THIKNESS:
12 mm
BABBLE DENSITY:
190 Kg/m3
SOUND ABSORBTION COEFFICIENT:
0,92 αw
DIM
OPTIONAL
IK06
220-240 V
50-60 Hz
0º
ALUMINIUM
PC
CRI
REF 460002.PN | 460004.PN
Reference order 460002.XX.PN.XX-XX.XX.XX.X.XX.XX
Reference order 460004.XX.PN.XX-XX.XX.XX.X.XX.XX
KIMT FIX RD
REF.
DIMENSION
FINISH
OPTIC
OPTIONS
POWER
CRI
LUMEN
WATT
mA
DIMM
SKETCH
.27
.30
.40
460002
.01
WH-WH
BK-BK
BK-GD
WH-GD
.15
.25
.38
.60
.ST
.9
803
983
991
11
500
.DA
.PU
.D1
Ø800
50
.02
Ø1000
50
.03
Ø1200
50
KLIMT FIX SQ
REF.
DIMENSION
FINISH
OPTIC
OPTIONS
POWER
CRI
LUMEN
WATT
mA
DIMM
SKETCH
.27
.30
.40
460004
.01
WH-WH
BK-BK
BK-GD
WH-GD
.15
.25
.38
.60
.ST
.9
803
983
991
11
500
.DA
.PU
.D1
800x800
50
.02
1000x1000
50
.03
1200x1200
50
CB03
CONNECTION BOX
SC03.SA
WIRE 3M.
INCLUDED
PHOTOMETRY
15º
25º
38º
60º
LIFE
50000H
REMOTE
AL
AL
ROUND
SQUARE
ACOUSTIC RD | SQ

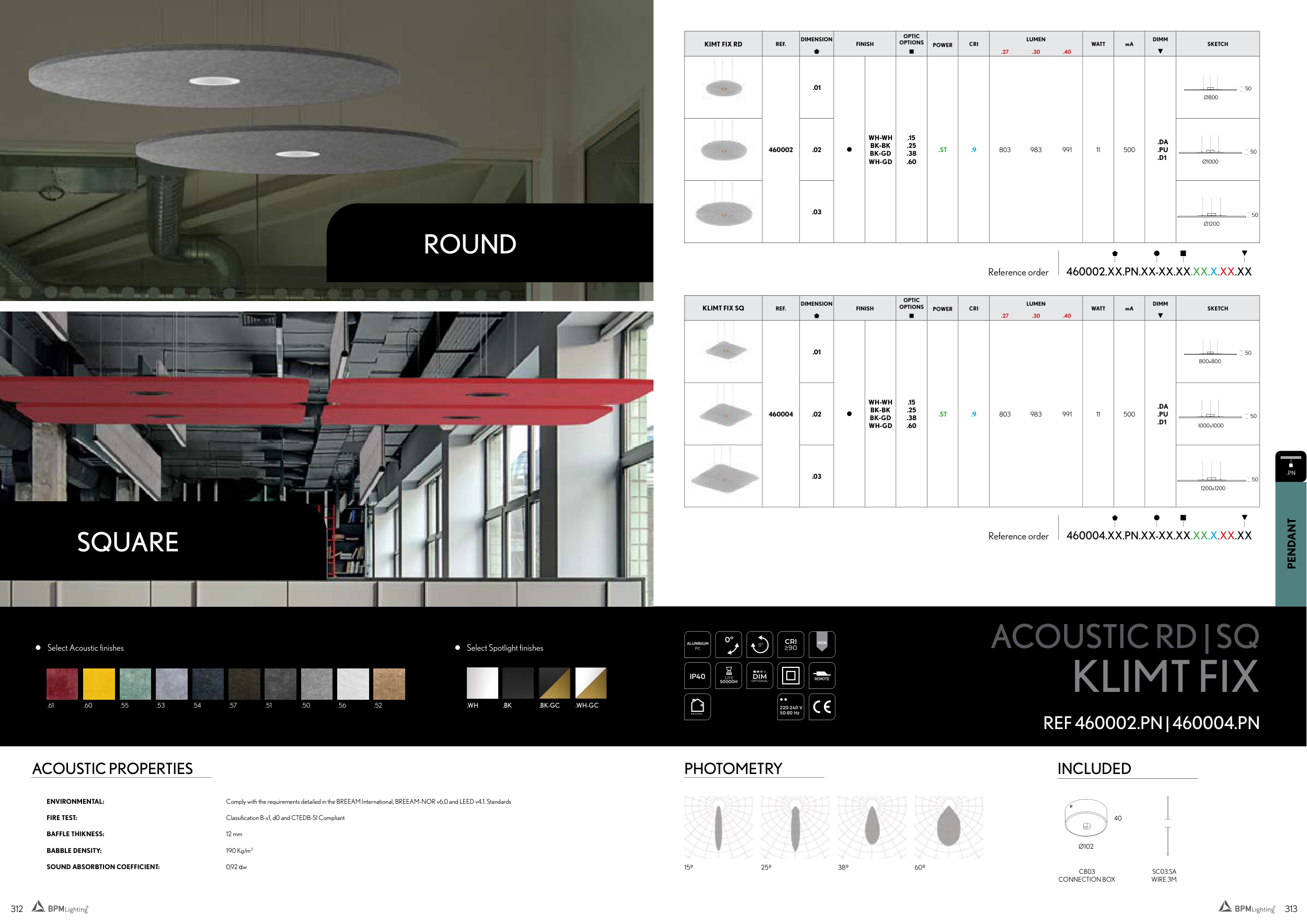

KLIMT FIX
0º
INDOOR
Select Acoustic finishes
.61
.55
.54
.51
.56
.60
.53
.57
.50
.52
Ø102
40
IP40
312
313
