PENDANT | SURFACE
.PN
.SR
INSTALLATIONS
.TR
TRIMLESS
·210008 ALBA PLUS
ASIMETRIC | TR - Pag. 656
.RF
RECESSED FRAME
·210008 ALBA PLUS
ASIMETRIC | RF - Pag. 456
.SR
SURFACE
·210008 ALBA PLUS
ASIMETRIC | SR - Pag. 250
.PN
PENDANT
·210008 ALBA PLUS
ASIMETRIC | PN - Pag. 250
ON DEMAND

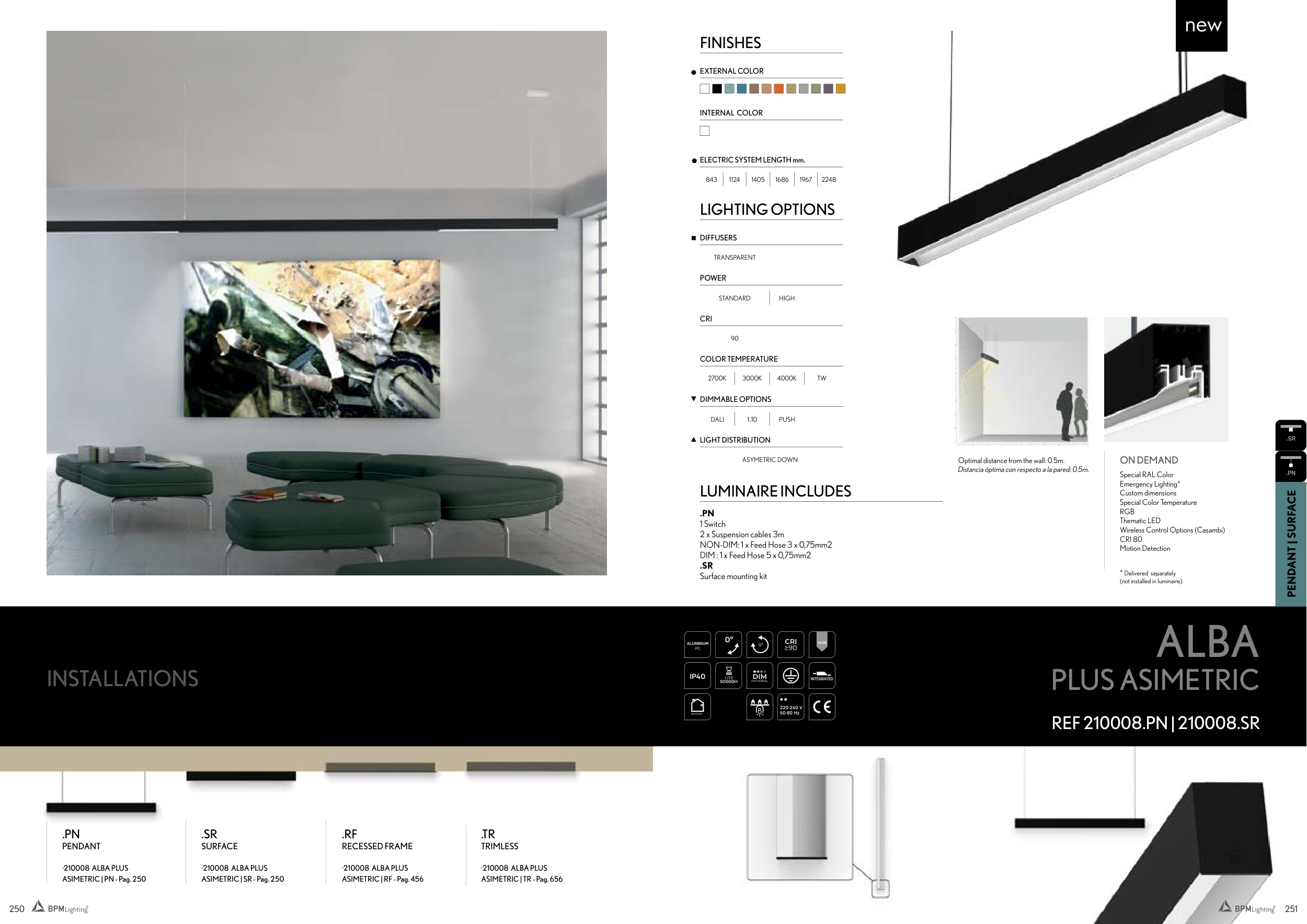

ALBA
PLUS ASIMETRIC
REF 210008.PN | 210008.SR
FINISHES
EXTERNAL COLOR
INTERNAL COLOR
ELECTRIC SYSTEM LENGTH mm.
843
1124
1405
1686
1967
2248
LIGHTING OPTIONS
DIFFUSERS
TRANSPARENT
POWER
STANDARD
HIGH
CRI
90
COLOR TEMPERATURE
2700K
3000K
4000K
TW
DIMMABLE OPTIONS
DALI
1..10
PUSH
LIGHT DISTRIBUTION
ASYMETRIC DOWN
DIM
OPTIONAL
IK06
INTEGRATED
220-240 V
50-60 Hz
0º
ALUMINIUM
PC
CRI
LUMINAIRE INCLUDES
.PN
1 Switch
2 x Suspension cables 3m
NON-DIM: 1 x Feed Hose 3 x 0,75mm2
DIM : 1 x Feed Hose 5 x 0,75mm2
.SR
Surface mounting kit
Special RAL Color
Emergency Lighting*
Custom dimensions
Special Color Temperature
RGB
Thematic LED
Wireless Control Options (Casambi)
CRI 80
Motion Detection
* Delivered separately
(not installed in luminaire).
new
LIFE
50000H
0º
INDOOR
Optimal distance from the wall: 0.5m.
Distancia óptima con respecto a la pared: 0.5m.
IP40
250
251
