14
y : 30 mm = z : 235 mm
y : 50 mm = z : 220 mm
y
10 - 30
≥75
z
≥75
Ø50 ±0,5
x
45
S Pure

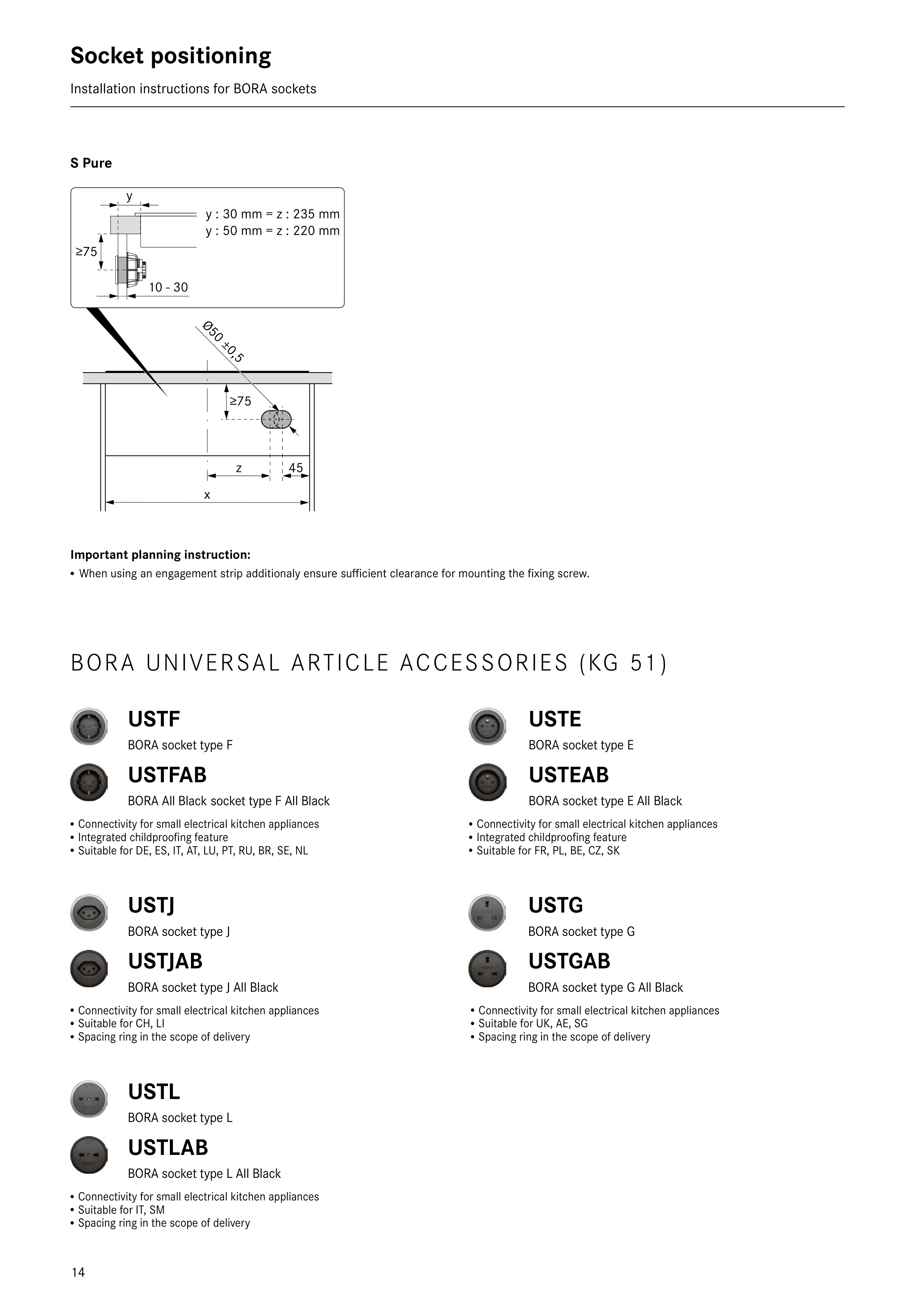

Socket positioning
Installation instructions for BORA sockets
Important planning instruction:
●
● When using an engagement strip additionaly ensure sufficient clearance for mounting the fixing screw.
BORA UNIVERSAL ARTICLE ACCESSORIES (KG 51)
USTF
BORA socket type F
USTE
BORA socket type E
USTJ
BORA socket type J
USTG
BORA socket type G
USTL
BORA socket type L
USTFAB
BORA All Black socket type F All Black
USTEAB
BORA socket type E All Black
USTJAB
BORA socket type J All Black
USTGAB
BORA socket type G All Black
USTLAB
BORA socket type L All Black
●
● Connectivity for small electrical kitchen appliances
●
● Integrated childproofing feature
●
● Suitable for DE, ES, IT, AT, LU, PT, RU, BR, SE, NL
●
● Connectivity for small electrical kitchen appliances
●
● Integrated childproofing feature
●
● Suitable for FR, PL, BE, CZ, SK
●
● Connectivity for small electrical kitchen appliances
●
● Suitable for CH, LI
●
● Spacing ring in the scope of delivery
●
● Connectivity for small electrical kitchen appliances
●
● Suitable for UK, AE, SG
●
● Spacing ring in the scope of delivery
●
● Connectivity for small electrical kitchen appliances
●
● Suitable for IT, SM
●
● Spacing ring in the scope of delivery
