304
2700 K
Typical luminous flux (lm)
6W
805
760
725
3000 K
845
9,5W
1095
1035
995
1150
5000 K
4000 K
efcacity
141lm/W
max.
Typical luminous flux (lm)
code: 8066. X XXX . XX
color
height
led
D1
9,5W - 4000K
W1
9,5W - 2700K
LED
1
600 mm
2
1000 mm
HEIGHT
02
Black
24
Corten
39
Grey
40
Rusty Iron
48
Dark Grey (RAL 7016 structured)
COLOR
2,10
2,30
3,10
3,50
Weight (kg)
1000mm
600mm
02,24,39,48
40
3000K / 5000K = on request
6W: 2700K / 3000K / 4000K / 5000K = on request
230V
6W - 9,5W
*do not use version rusty iron on tiling, paving, wood, ...

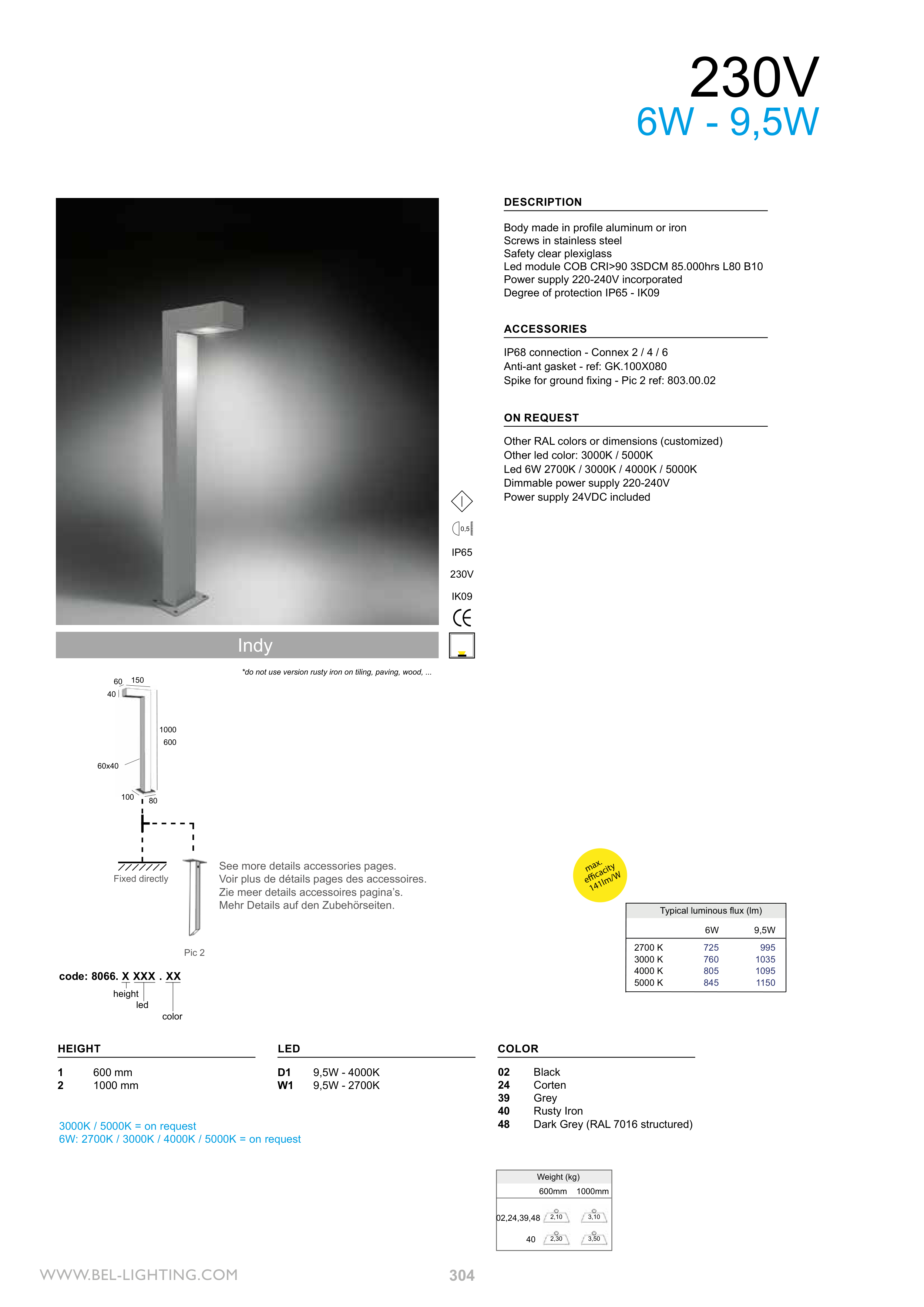

Indy
IP68 connection - Connex 2 / 4 / 6
Anti-ant gasket - ref: GK.100X080
Spike for ground fixing - Pic 2 ref: 803.00.02
ACCESSORIES
Body made in profile aluminum or iron
Screws in stainless steel
Safety clear plexiglass
Led module COB CRI>90 3SDCM 85.000hrs L80 B10
Power supply 220-240V incorporated
Degree of protection IP65 - IK09
DESCRIPTION
Other RAL colors or dimensions (customized)
Other led color: 3000K / 5000K
Led 6W 2700K / 3000K / 4000K / 5000K
Dimmable power supply 220-240V
Power supply 24VDC included
ON REQUEST
0,5
IP65
230V
IK09
1000
600
60x40
100
80
40
60
150
See more details accessories pages.
Voir plus de détails pages des accessoires.
Zie meer details accessoires pagina’s.
Mehr Details auf den Zubehörseiten.
Pic 2
Fixed directly
