Please refer to the technical planning data for planning and installation. The current values for LED service life, luminous flux,
maximum ambient temperature and information about the use of BEGA Thermal Management ® are readily available in the
instructions for use and data sheets on our website.

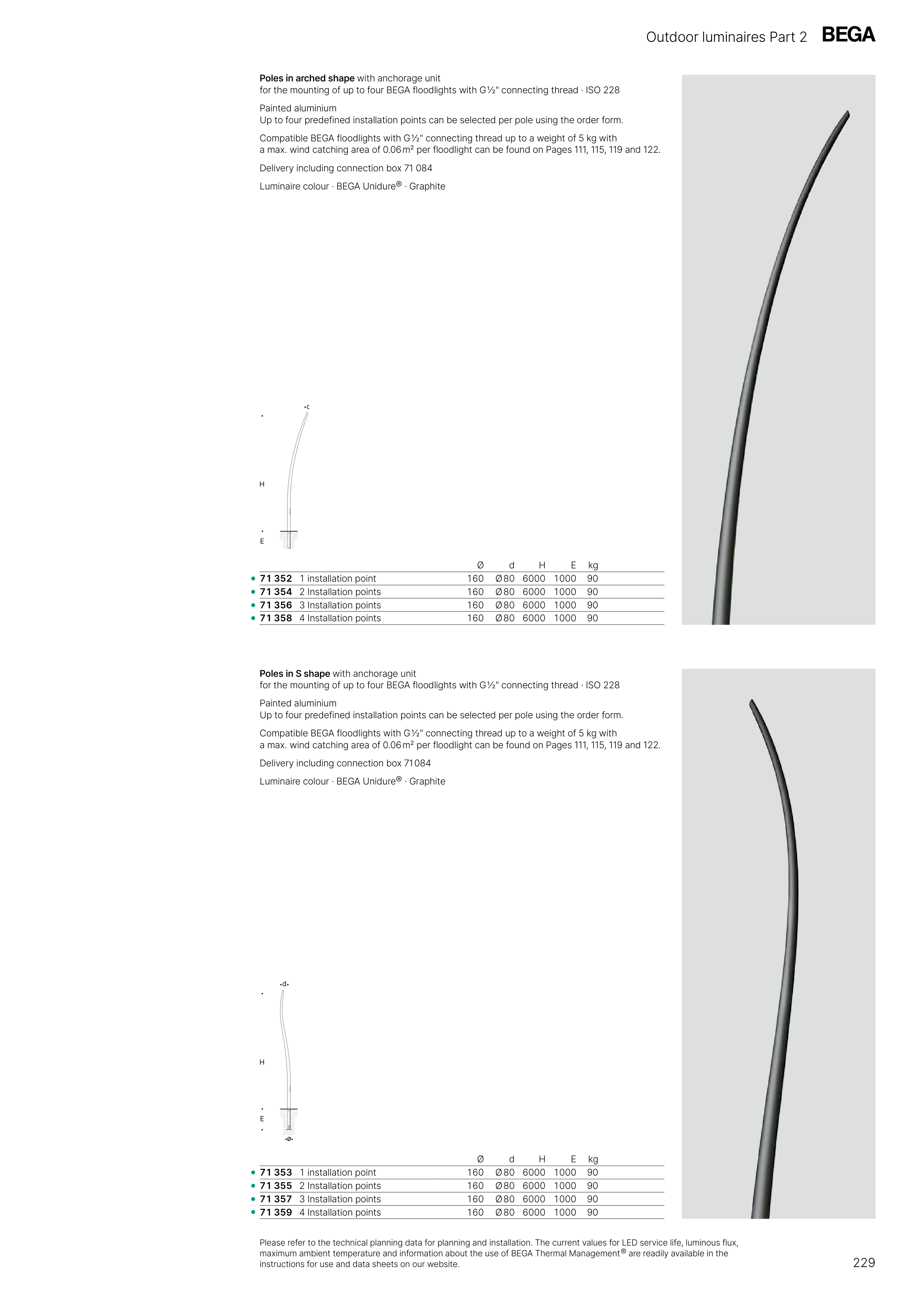

Outdoor luminaires Part 2
Ø
d
H
E
kg
• 71 352 1 installation point
160
Ø 80
6000
1000
90
• 71 354 2 Installation points
160
Ø 80
6000
1000
90
• 71 356 3 Installation points
160
Ø 80
6000
1000
90
• 71 358 4 Installation points
160
Ø 80
6000
1000
90
Poles in arched shape with anchorage unit
for the mounting of up to four BEGA floodlights with G 1/2" connecting thread · ISO 228
Painted aluminium
Up to four predefined installation points can be selected per pole using the order form.
Compatible BEGA floodlights with G 1/2" connecting thread up to a weight of 5 kg with
a max. wind catching area of 0.06 m² per floodlight can be found on Pages 111, 115, 119 and 122.
Delivery including connection box 71 084
Luminaire colour · BEGA Unidure® · Graphite
Ø
d
H
E
kg
• 71 353 1 installation point
160
Ø 80
6000
1000
90
• 71 355 2 Installation points
160
Ø 80
6000
1000
90
• 71 357 3 Installation points
160
Ø 80
6000
1000
90
• 71 359 4 Installation points
160
Ø 80
6000
1000
90
Poles in S shape with anchorage unit
for the mounting of up to four BEGA floodlights with G 1/2" connecting thread · ISO 228
Painted aluminium
Up to four predefined installation points can be selected per pole using the order form.
Compatible BEGA floodlights with G 1/2" connecting thread up to a weight of 5 kg with
a max. wind catching area of 0.06 m² per floodlight can be found on Pages 111, 115, 119 and 122.
Delivery including connection box 71 084
Luminaire colour · BEGA Unidure® · Graphite
