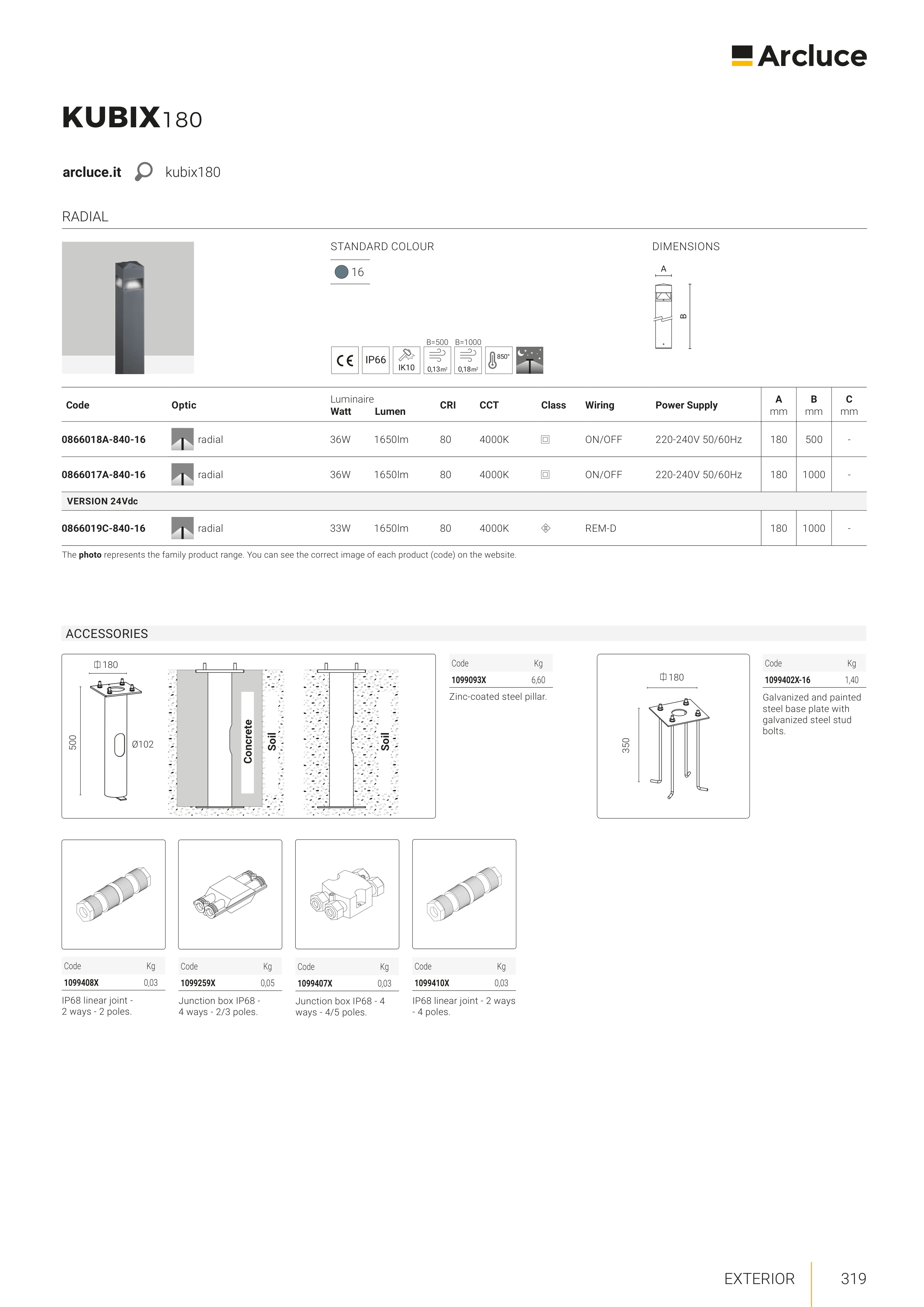

KUBIX180
kubix180
arcluce.it
A
B
DIMENSIONS
STANDARD COLOUR
16
Code
Kg
1099093X
6,60
500
Ø102
180
B=500
B=1000
Code
Kg
1099402X-16
1,40
350
180
Code
Kg
1099408X
0,03
Code
Kg
1099259X
0,05
Code
Optic
Luminaire
Watt Lumen
CRI
CCT
Class
Wiring
Power Supply
A
mm
B
mm
C
mm
VERSION 24Vdc
Code
Kg
1099407X
0,03
Code
Kg
1099410X
0,03
0866018A-840-16
radial
36W
1650lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
180
500
-
0866017A-840-16
radial
36W
1650lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
180
1000
-
0866019C-840-16
radial
33W
1650lm
80
4000K
3
REM-D
180
1000
-
319
EXTERIOR
RADIAL
Soil
Concrete
Soil
The photo represents the family product range. You can see the correct image of each product (code) on the website.
Zinc-coated steel pillar.
Galvanized and painted
steel base plate with
galvanized steel stud
bolts.
IP68 linear joint -
2 ways - 2 poles.
Junction box IP68 -
4 ways - 2/3 poles.
Junction box IP68 - 4
ways - 4/5 poles.
IP68 linear joint - 2 ways
- 4 poles.
ACCESSORIES
