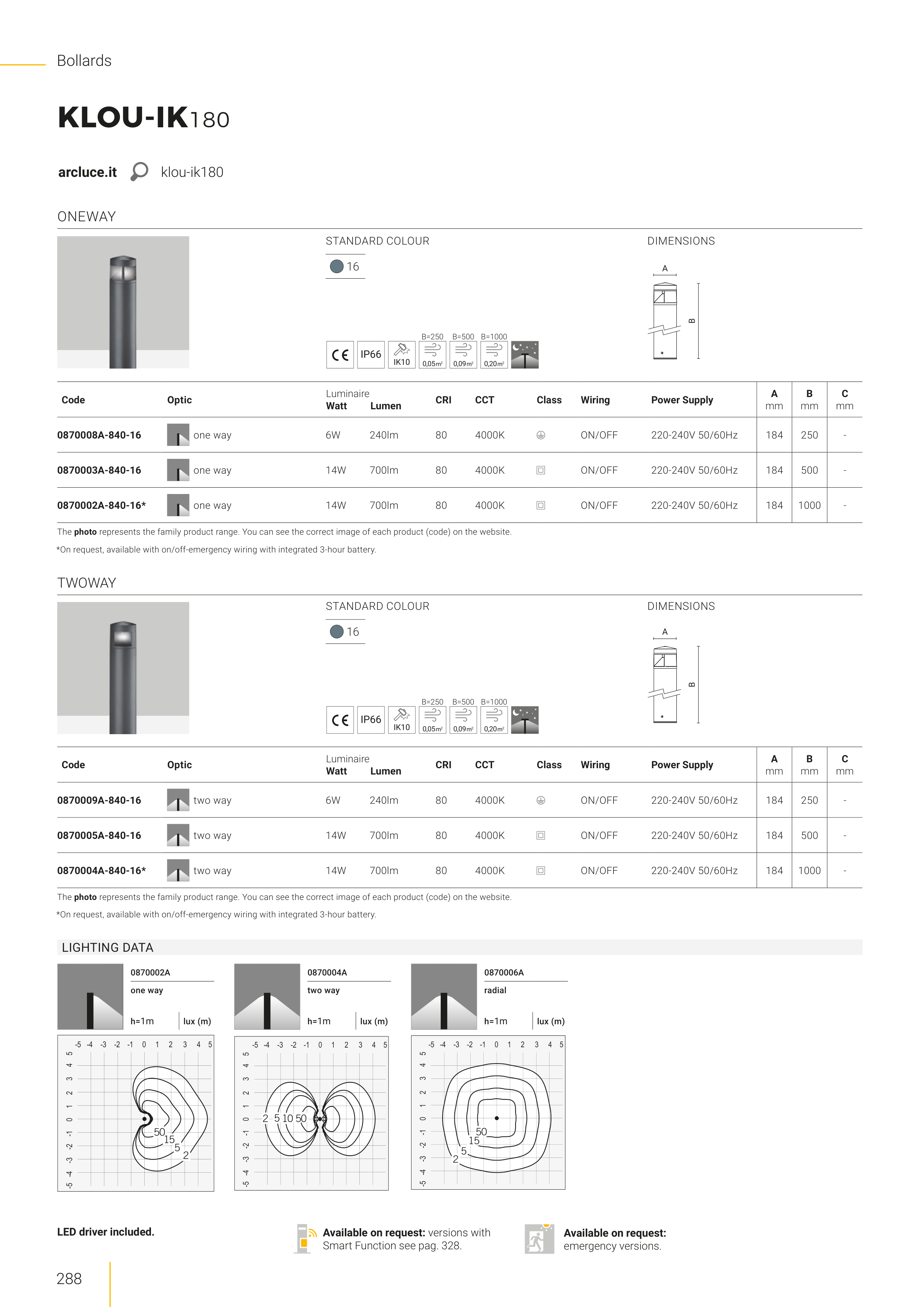

KLOU-IK180
klou-ik180
arcluce.it
A
B
DIMENSIONS
DIMENSIONS
STANDARD COLOUR
STANDARD COLOUR
16
16
B=500
B=500
B=250
B=250
B=1000
B=1000
A
B
Code
Optic
Luminaire
Watt Lumen
CRI
CCT
Class
Wiring
Power Supply
A
mm
B
mm
C
mm
Code
Optic
Luminaire
Watt Lumen
CRI
CCT
Class
Wiring
Power Supply
A
mm
B
mm
C
mm
0870008A-840-16
one way
6W
240lm
80
4000K
1
ON/OFF
220-240V 50/60Hz
184
250
-
0870003A-840-16
one way
14W
700lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
184
500
-
0870002A-840-16*
one way
14W
700lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
184
1000
-
0870009A-840-16
two way
6W
240lm
80
4000K
1
ON/OFF
220-240V 50/60Hz
184
250
-
0870005A-840-16
two way
14W
700lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
184
500
-
0870004A-840-16*
two way
14W
700lm
80
4000K
2
ON/OFF
220-240V 50/60Hz
184
1000
-
0870002A
one way
h=1m
lux (m)
0870004A
two way
h=1m
lux (m)
2 5 10 30
2 5 10 50
-5 -4 -3 -2 -1 0 1 2 3 4 5
2
5
10
50
2
5
15
50
-5 -4 -3 -2 -1 0 1 2 3 4 5
-5 -4 -3 -2 -1 0 1 2 3 4 5
0870006A
radial
h=1m
lux (m)
2 5
10
50
15
2 5
50
-5 -4 -3 -2 -1 0 1 2 3 4 5
-5 -4 -3 -2 -1 0 1 2 3 4 5
-5 -4 -3 -2 -1 0 1 2 3 4 5
288
ONEWAY
TWOWAY
Bollards
The photo represents the family product range. You can see the correct image of each product (code) on the website.
The photo represents the family product range. You can see the correct image of each product (code) on the website.
LED driver included.
Available on request:
emergency versions.
Available on request: versions with
Smart Function see pag. 328.
LIGHTING DATA
*On request, available with on/off-emergency wiring with integrated 3-hour battery.
*On request, available with on/off-emergency wiring with integrated 3-hour battery.
