Code
Kg
1099217X
0,14
Code
Kg
1099218X
0,24
Code
Kg
1099259X
0,05
Code
Kg
1099408X
0,03
Code
Kg
1099407X
0,03

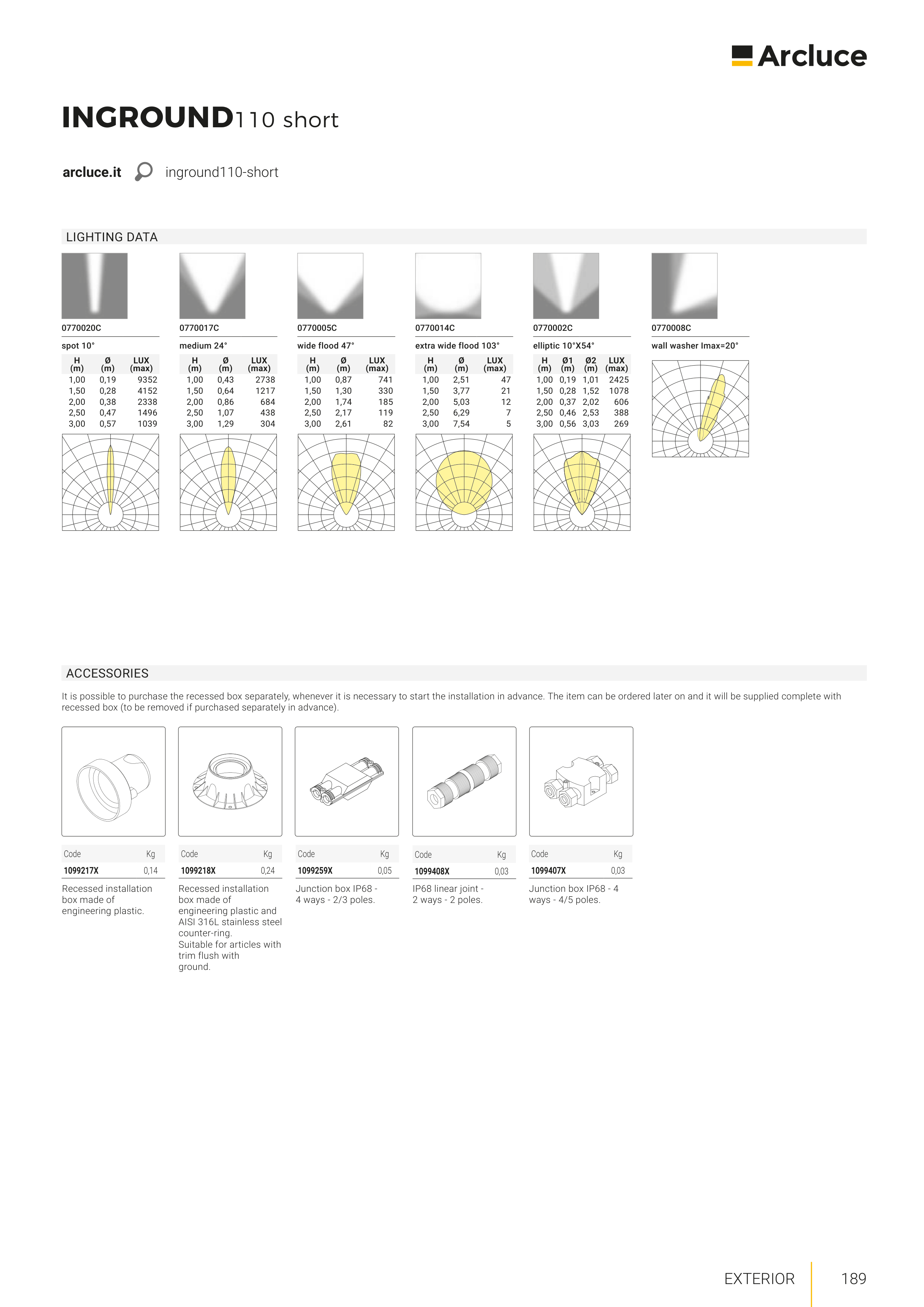

INGROUND110 short
inground110-short
arcluce.it
0770020C
spot 10°
H
(m)
Ø
(m)
LUX
(max)
1,00
0,19
9352
1,50
0,28
4152
2,00
0,38
2338
2,50
0,47
1496
3,00
0,57
1039
0770017C
medium 24°
H
(m)
Ø
(m)
LUX
(max)
1,00
0,43
2738
1,50
0,64
1217
2,00
0,86
684
2,50
1,07
438
3,00
1,29
304
0770005C
wide flood 47°
H
(m)
Ø
(m)
LUX
(max)
1,00
0,87
741
1,50
1,30
330
2,00
1,74
185
2,50
2,17
119
3,00
2,61
82
0770014C
extra wide flood 103°
H
(m)
Ø
(m)
LUX
(max)
1,00
2,51
47
1,50
3,77
21
2,00
5,03
12
2,50
6,29
7
3,00
7,54
5
0770002C
elliptic 10°X54°
H
(m)
Ø1
(m)
Ø2
(m)
LUX
(max)
1,00 0,19 1,01
2425
1,50 0,28 1,52
1078
2,00 0,37 2,02
606
2,50 0,46 2,53
388
3,00 0,56 3,03
269
0770008C
wall washer Imax=20°
189
EXTERIOR
Recessed installation
box made of
engineering plastic.
Recessed installation
box made of
engineering plastic and
AISI 316L stainless steel
counter-ring.
Suitable for articles with
trim flush with
ground.
It is possible to purchase the recessed box separately, whenever it is necessary to start the installation in advance. The item can be ordered later on and it will be supplied complete with
recessed box (to be removed if purchased separately in advance).
IP68 linear joint -
2 ways - 2 poles.
Junction box IP68 -
4 ways - 2/3 poles.
Junction box IP68 - 4
ways - 4/5 poles.
ACCESSORIES
ACCESSORIES
LIGHTING DATA
