IP68
IP69
IK07
STAINLESS
STEEL V4A
1.4571
316Ti
ELECTRO
POLISHED
3.000 K
4.500 K
6.000 K
RGB-W
DYNAMIC
WHITE
CABLE
INCL.
max 5m
DALI
1-10 V
OPTIONAL
DIMM
CONSTANT
CURRENT
KONSTANT
STROM
| 33

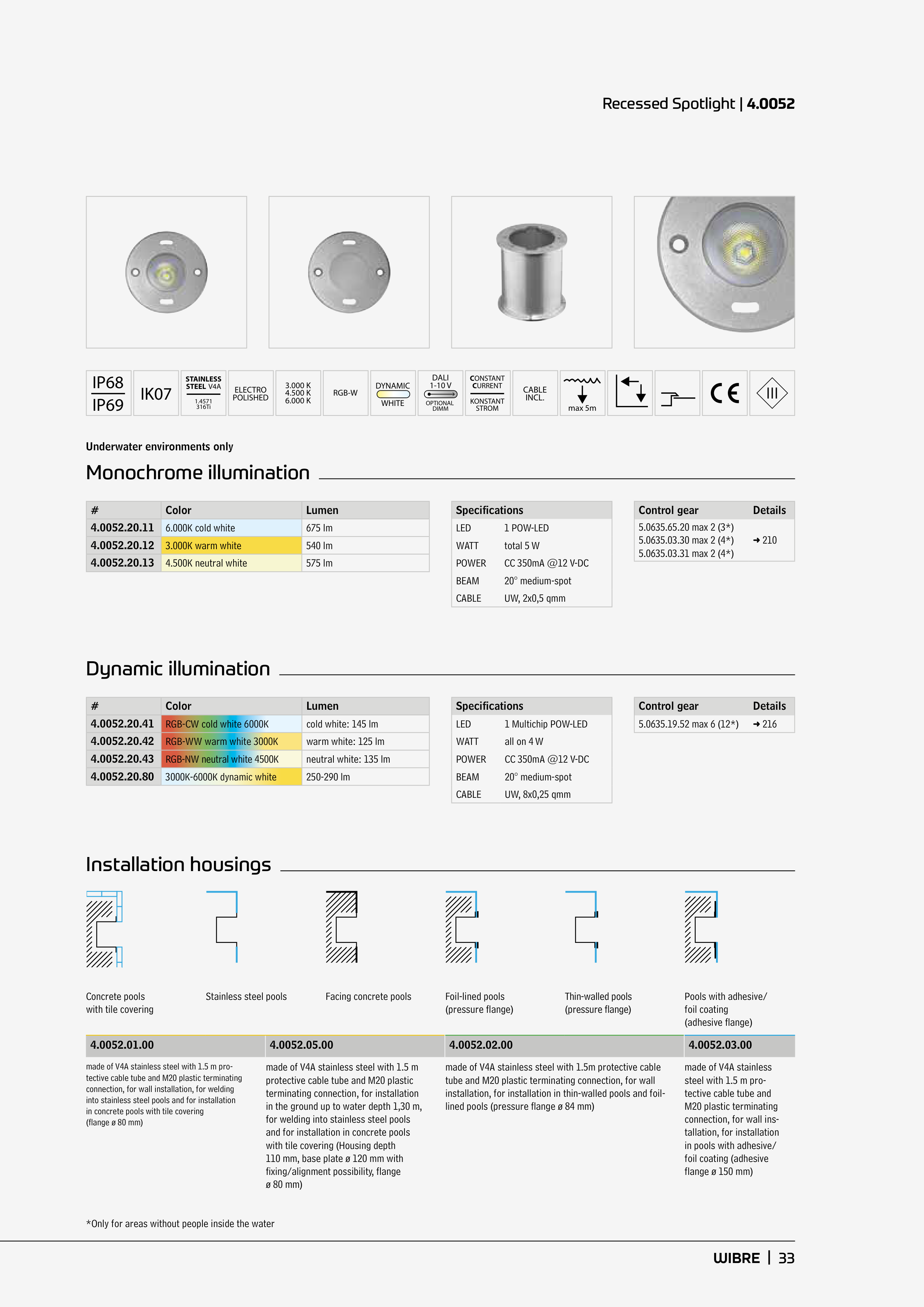

Recessed Spotlight | 4.0052
Monochrome illumination
Dynamic illumination
Installation housings
Concrete pools
with tile covering
Stainless steel pools
Facing concrete pools
Foil-lined pools
(pressure flange)
Thin-walled pools
(pressure flange)
Pools with adhesive/
foil coating
(adhesive flange)
4.0052.01.00
4.0052.05.00
4.0052.02.00
4.0052.03.00
made of V4A stainless steel with 1.5 m pro-
tective cable tube and M20 plastic terminating
connection, for wall installation, for welding
into stainless steel pools and for installation
in concrete pools with tile covering
(flange ø 80 mm)
made of V4A stainless steel with 1.5 m
protective cable tube and M20 plastic
terminating connection, for installation
in the ground up to water depth 1,30 m,
for welding into stainless steel pools
and for installation in concrete pools
with tile covering (Housing depth
110 mm, base plate ø 120 mm with
fixing/alignment possibility, flange
ø 80 mm)
made of V4A stainless steel with 1.5m protective cable
tube and M20 plastic terminating connection, for wall
installation, for installation in thin-walled pools and foil-
lined pools (pressure flange ø 84 mm)
made of V4A stainless
steel with 1.5 m pro-
tective cable tube and
M20 plastic terminating
connection, for wall ins-
tallation, for installation
in pools with adhesive/
foil coating (adhesive
flange ø 150 mm)
Specifications
LED
1 POW-LED
WATT
total 5 W
POWER
CC 350mA @12 V-DC
BEAM
20° medium-spot
CABLE
UW, 2x0,5 qmm
Specifications
LED
1 Multichip POW-LED
WATT
all on 4 W
POWER
CC 350mA @12 V-DC
BEAM
20° medium-spot
CABLE
UW, 8x0,25 qmm
Control gear
Details
5.0635.65.20 max 2 (3*)
5.0635.03.30 max 2 (4*)
5.0635.03.31 max 2 (4*)
➜ 210
Control gear
Details
5.0635.19.52 max 6 (12*)
➜ 216
#
Color
Lumen
4.0052.20.11
6.000K cold white
675 lm
4.0052.20.12
3.000K warm white
540 lm
4.0052.20.13
4.500K neutral white
575 lm
#
Color
Lumen
4.0052.20.41
RGB-CW cold white 6000K
cold white: 145 lm
4.0052.20.42
RGB-WW warm white 3000K
warm white: 125 lm
4.0052.20.43
RGB-NW neutral white 4500K
neutral white: 135 lm
4.0052.20.80
3000K-6000K dynamic white
250-290 lm
*Only for areas without people inside the water
Underwater environments only
