V
for net output of LED strip on profiles,
check weverducre.com/ilane

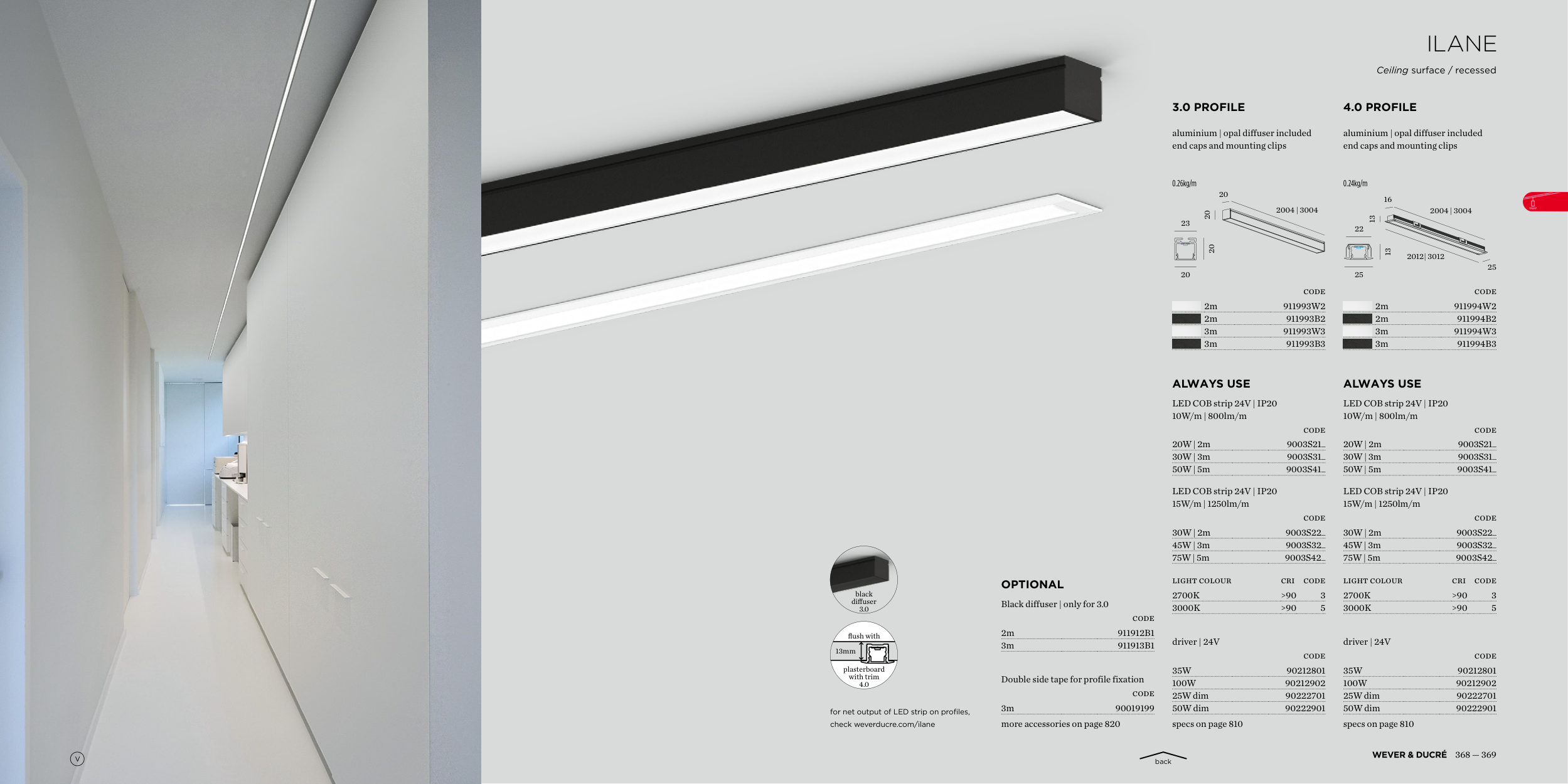

Ceiling surface / recessed
ILANE
2004 | 3004
20
20
23
20
20
2004 | 3004
2012| 3012
13
16
25
22
25
13
3.0 PROFILE
4.0 PROFILE
aluminium | opal diffuser included
end caps and mounting clips
aluminium | opal diffuser included
end caps and mounting clips
0.26kg/m
0.24kg/m
ALWAYS USE
ALWAYS USE
LED COB strip 24V | IP20
10W/m | 800lm/m
LED COB strip 24V | IP20
10W/m | 800lm/m
LED COB strip 24V | IP20
15W/m | 1250lm/m
LED COB strip 24V | IP20
15W/m | 1250lm/m
specs on page 810
specs on page 810
driver | 24V
driver | 24V
OPTIONAL
Black diffuser | only for 3.0
more accessories on page 820
Double side tape for profile fixation
Light Colour
cri
code
2700K
>90
3
3000K
>90
5
Light Colour
cri
code
2700K
>90
3
3000K
>90
5
code
2m
911912B1
3m
911913B1
code
3m
90019199
code
35W
90212801
100W
90212902
25W dim
90222701
50W dim
90222901
code
35W
90212801
100W
90212902
25W dim
90222701
50W dim
90222901
code
20W | 2m
9003S21_
30W | 3m
9003S31_
50W | 5m
9003S41_
code
20W | 2m
9003S21_
30W | 3m
9003S31_
50W | 5m
9003S41_
code
2m
911994W2
2m
911994B2
3m
911994W3
3m
911994B3
code
2m
911993W2
2m
911993B2
3m
911993W3
3m
911993B3
code
30W | 2m
9003S22_
45W | 3m
9003S32_
75W | 5m
9003S42_
code
30W | 2m
9003S22_
45W | 3m
9003S32_
75W | 5m
9003S42_
black
diffuser
3.0
flush with
plasterboard
with trim
4.0
13mm
368 — 369
back
