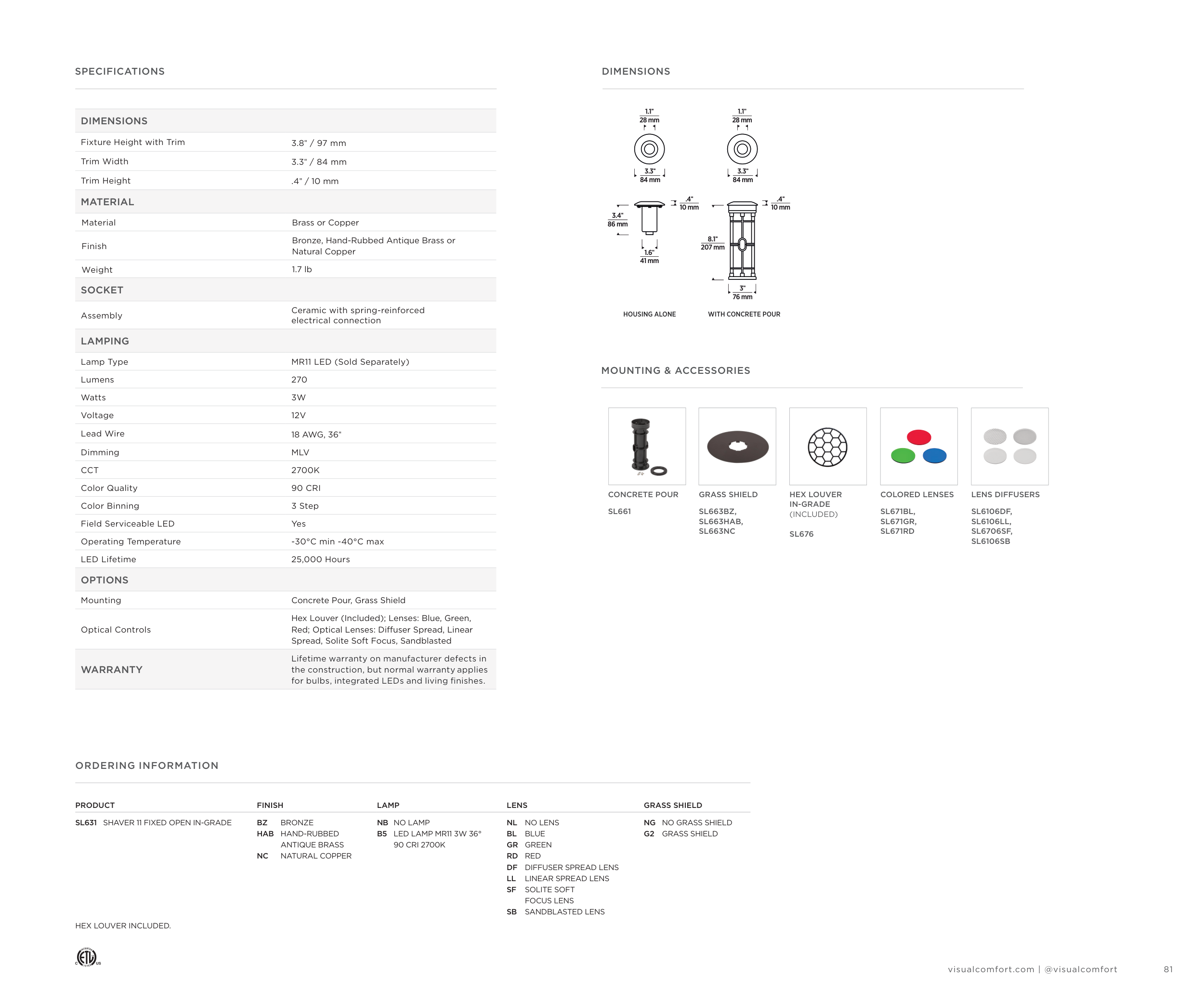

SPECIFICATIONS
DIMENSIONS
DIMENSIONS
Fixture Height with Trim
3.8" / 97 mm
Trim Width
3.3" / 84 mm
Trim Height
.4" / 10 mm
MATERIAL
Material
Brass or Copper
Finish
Bronze, Hand-Rubbed Antique Brass or
Natural Copper
Weight
1.7 lb
SOCKET
Assembly
Ceramic with spring-reinforced
electrical connection
LAMPING
Lamp Type
MR11 LED (Sold Separately)
Lumens
270
Watts
3W
Voltage
12V
Lead Wire
18 AWG, 36"
Dimming
MLV
CCT
2700K
Color Quality
90 CRI
Color Binning
3 Step
Field Serviceable LED
Yes
Operating Temperature
-30°C min -40°C max
LED Lifetime
25,000 Hours
OPTIONS
Mounting
Concrete Pour, Grass Shield
Optical Controls
Hex Louver (Included); Lenses: Blue, Green,
Red; Optical Lenses: Diffuser Spread, Linear
Spread, Solite Soft Focus, Sandblasted
WARRANTY
Lifetime warranty on manufacturer defects in
the construction, but normal warranty applies
for bulbs, integrated LEDs and living finishes.
ORDERING INFORMATION
PRODUCT
FINISH
LAMP
LENS
GRASS SHIELD
SL631 SHAVER 11 FIXED OPEN IN-GRADE
BZ
BRONZE
HAB HAND-RUBBED
ANTIQUE BRASS
NC
NATURAL COPPER
NB NO LAMP
B5 LED LAMP MR11 3W 36°
90 CRI 2700K
NL NO LENS
BL BLUE
GR GREEN
RD RED
DF DIFFUSER SPREAD LENS
LL
LINEAR SPREAD LENS
SF
SOLITE SOFT
FOCUS LENS
SB SANDBLASTED LENS
NG NO GRASS SHIELD
G2 GRASS SHIELD
HEX LOUVER INCLUDED.
3.3"
84 mm
1.1"
28 mm
.4"
10 mm
3.3"
84 mm
1.1"
28 mm
.4"
10 mm
3.4"
86 mm
1.6"
41 mm
HOUSING ALONE
WITH CONCRETE POUR
3"
76 mm
8.1"
207 mm
MOUNTING & ACCESSORIES
CONCRETE POUR
SL661
GRASS SHIELD
SL663BZ,
SL663HAB,
SL663NC
COLORED LENSES
SL671BL,
SL671GR,
SL671RD
LENS DIFFUSERS
SL6106DF,
SL6106LL,
SL6706SF,
SL6106SB
HEX LOUVER
IN-GRADE
(INCLUDED)
SL676
