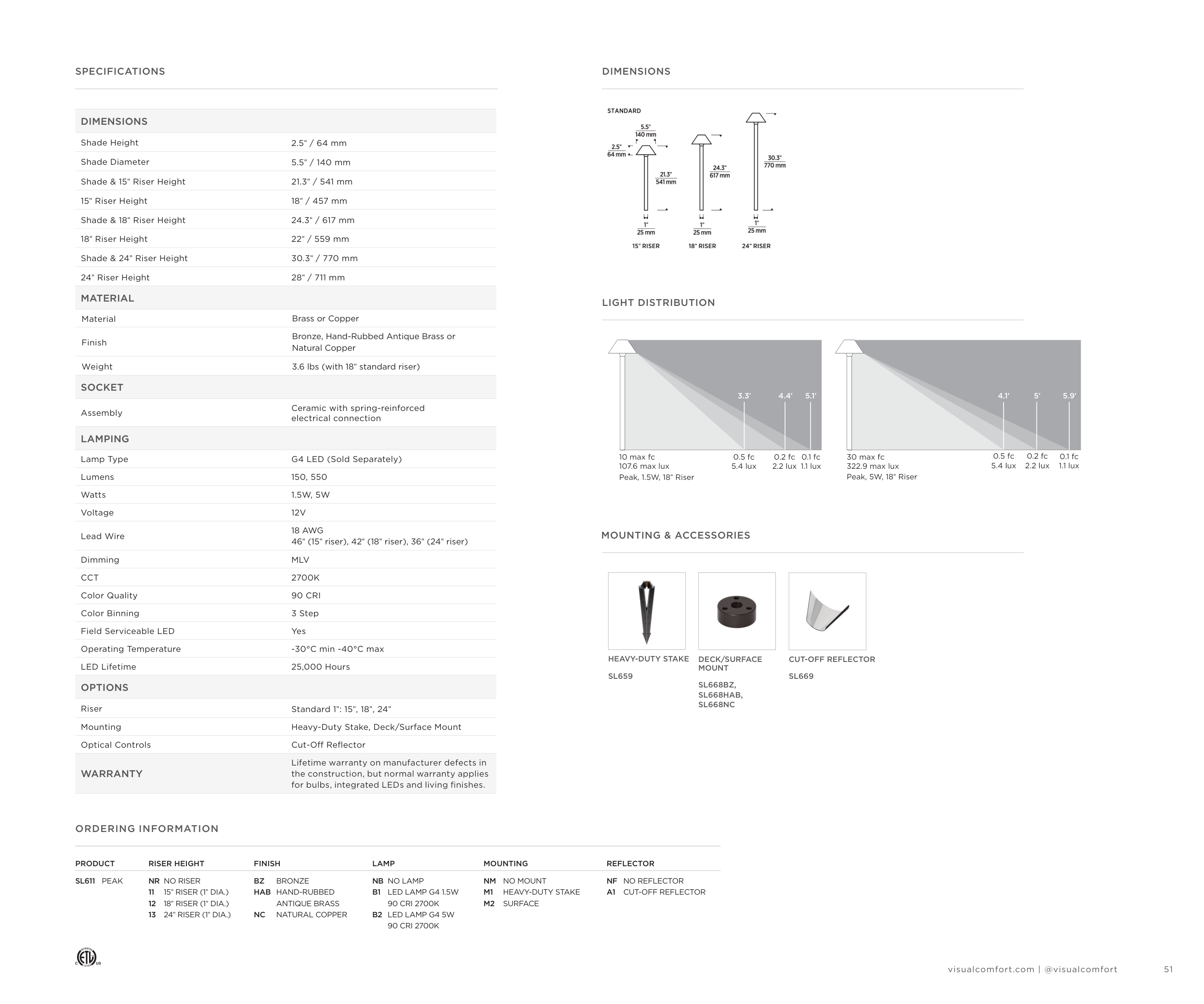

SPECIFICATIONS
DIMENSIONS
DIMENSIONS
Shade Height
2.5" / 64 mm
Shade Diameter
5.5" / 140 mm
Shade & 15" Riser Height
21.3" / 541 mm
15" Riser Height
18" / 457 mm
Shade & 18" Riser Height
24.3" / 617 mm
18" Riser Height
22" / 559 mm
Shade & 24" Riser Height
30.3" / 770 mm
24" Riser Height
28" / 711 mm
MATERIAL
Material
Brass or Copper
Finish
Bronze, Hand-Rubbed Antique Brass or
Natural Copper
Weight
3.6 lbs (with 18" standard riser)
SOCKET
Assembly
Ceramic with spring-reinforced
electrical connection
LAMPING
Lamp Type
G4 LED (Sold Separately)
Lumens
150, 550
Watts
1.5W, 5W
Voltage
12V
Lead Wire
18 AWG
46" (15" riser), 42" (18" riser), 36" (24" riser)
Dimming
MLV
CCT
2700K
Color Quality
90 CRI
Color Binning
3 Step
Field Serviceable LED
Yes
Operating Temperature
-30°C min -40°C max
LED Lifetime
25,000 Hours
OPTIONS
Riser
Standard 1": 15", 18", 24"
Mounting
Heavy-Duty Stake, Deck/Surface Mount
Optical Controls
Cut-Off Reflector
WARRANTY
Lifetime warranty on manufacturer defects in
the construction, but normal warranty applies
for bulbs, integrated LEDs and living finishes.
ORDERING INFORMATION
PRODUCT
RISER HEIGHT
FINISH
LAMP
MOUNTING
REFLECTOR
SL611 PEAK
NR NO RISER
11
15" RISER (1" DIA.)
12 18" RISER (1" DIA.)
13 24" RISER (1" DIA.)
BZ
BRONZE
HAB HAND-RUBBED
ANTIQUE BRASS
NC
NATURAL COPPER
NB NO LAMP
B1 LED LAMP G4 1.5W
90 CRI 2700K
B2 LED LAMP G4 5W
90 CRI 2700K
NM NO MOUNT
M1
HEAVY-DUTY STAKE
M2
SURFACE
NF NO REFLECTOR
A1 CUT-OFF REFLECTOR
LIGHT DISTRIBUTION
3.3'
4.4'
5.1'
Peak, 1.5W, 18" Riser
0.5 fc
5.4 lux
10 max fc
107.6 max lux
30 max fc
322.9 max lux
0.2 fc
2.2 lux
0.1 fc
1.1 lux
4.1'
5'
5.9'
Peak, 5W, 18" Riser
0.5 fc
5.4 lux
0.2 fc
2.2 lux
0.1 fc
1.1 lux
MOUNTING & ACCESSORIES
CUT-OFF REFLECTOR
SL669
HEAVY-DUTY STAKE
SL659
DECK/SURFACE
MOUNT
SL668BZ,
SL668HAB,
SL668NC
3.3'
4.4'
5.1'
Peak, 1.5W, 18" Riser
0.5 fc
5.4 lux
10 max fc
107.6 max lux
30 max fc
322.9 max lux
0.2 fc
2.2 lux
0.1 fc
1.1 lux
4.1'
5'
5.9'
Peak, 5W, 18" Riser
0.5 fc
5.4 lux
0.2 fc
2.2 lux
0.1 fc
1.1 lux
51
visualcomfort.com | @visualcomfort
