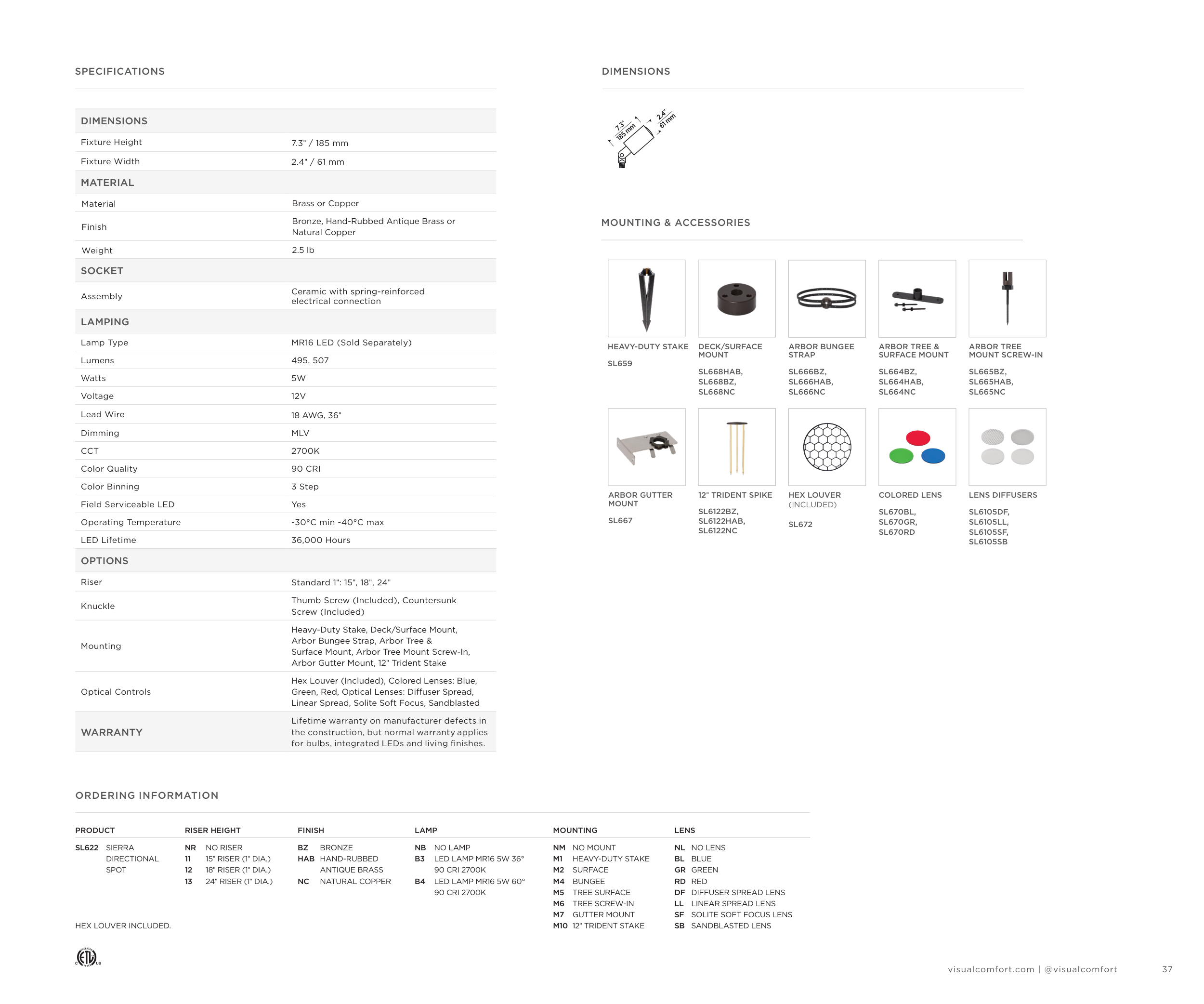

SPECIFICATIONS
DIMENSIONS
MOUNTING & ACCESSORIES
DIMENSIONS
Fixture Height
7.3" / 185 mm
Fixture Width
2.4" / 61 mm
MATERIAL
Material
Brass or Copper
Finish
Bronze, Hand-Rubbed Antique Brass or
Natural Copper
Weight
2.5 lb
SOCKET
Assembly
Ceramic with spring-reinforced
electrical connection
LAMPING
Lamp Type
MR16 LED (Sold Separately)
Lumens
495, 507
Watts
5W
Voltage
12V
Lead Wire
18 AWG, 36"
Dimming
MLV
CCT
2700K
Color Quality
90 CRI
Color Binning
3 Step
Field Serviceable LED
Yes
Operating Temperature
-30°C min -40°C max
LED Lifetime
36,000 Hours
OPTIONS
Riser
Standard 1": 15", 18", 24"
Knuckle
Thumb Screw (Included), Countersunk
Screw (Included)
Mounting
Heavy-Duty Stake, Deck/Surface Mount,
Arbor Bungee Strap, Arbor Tree &
Surface Mount, Arbor Tree Mount Screw-In,
Arbor Gutter Mount, 12" Trident Stake
Optical Controls
Hex Louver (Included), Colored Lenses: Blue,
Green, Red, Optical Lenses: Diffuser Spread,
Linear Spread, Solite Soft Focus, Sandblasted
WARRANTY
Lifetime warranty on manufacturer defects in
the construction, but normal warranty applies
for bulbs, integrated LEDs and living finishes.
ORDERING INFORMATION
PRODUCT
RISER HEIGHT
FINISH
LAMP
MOUNTING
LENS
SL622 SIERRA
DIRECTIONAL
SPOT
NR
NO RISER
11
15" RISER (1" DIA.)
12
18" RISER (1" DIA.)
13
24" RISER (1" DIA.)
BZ
BRONZE
HAB HAND-RUBBED
ANTIQUE BRASS
NC
NATURAL COPPER
NB NO LAMP
B3
LED LAMP MR16 5W 36°
90 CRI 2700K
B4
LED LAMP MR16 5W 60°
90 CRI 2700K
NM NO MOUNT
M1
HEAVY-DUTY STAKE
M2
SURFACE
M4 BUNGEE
M5
TREE SURFACE
M6 TREE SCREW-IN
M7
GUTTER MOUNT
M10 12" TRIDENT STAKE
NL NO LENS
BL BLUE
GR GREEN
RD RED
DF DIFFUSER SPREAD LENS
LL LINEAR SPREAD LENS
SF SOLITE SOFT FOCUS LENS
SB SANDBLASTED LENS
HEX LOUVER INCLUDED.
7.3"
185 mm
2.4"
61 mm
HEAVY-DUTY STAKE
SL659
HEX LOUVER
(INCLUDED)
SL672
DECK/SURFACE
MOUNT
SL668HAB,
SL668BZ,
SL668NC
ARBOR BUNGEE
STRAP
SL666BZ,
SL666HAB,
SL666NC
LENS DIFFUSERS
SL6105DF,
SL6105LL,
SL6105SF,
SL6105SB
ARBOR TREE &
SURFACE MOUNT
SL664BZ,
SL664HAB,
SL664NC
COLORED LENS
SL670BL,
SL670GR,
SL670RD
ARBOR GUTTER
MOUNT
SL667
ARBOR TREE
MOUNT SCREW-IN
SL665BZ,
SL665HAB,
SL665NC
12" TRIDENT SPIKE
SL6122BZ,
SL6122HAB,
SL6122NC
37
